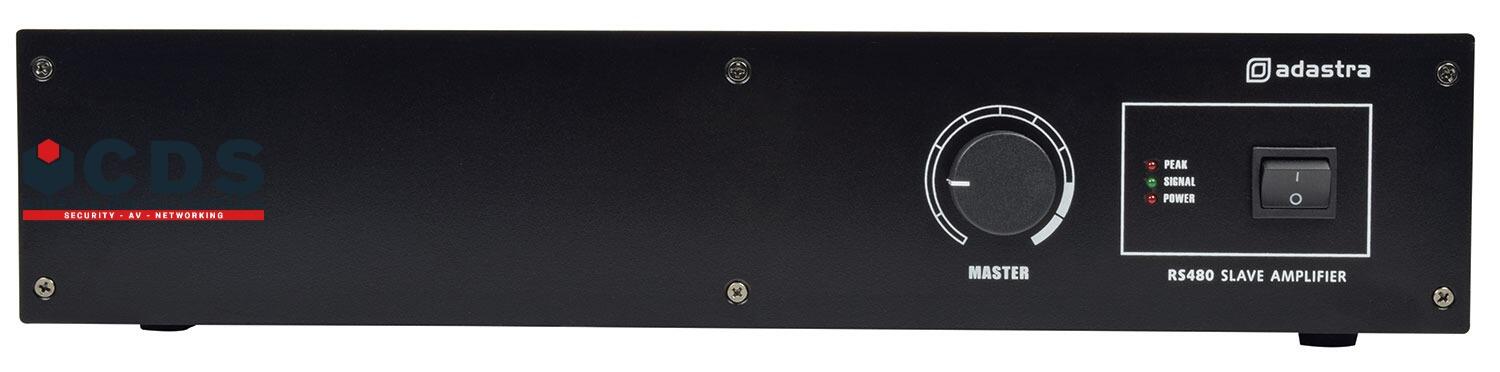

ADASTRA RS480 is a 480W 100V slave amplifier. It is designed to be used as part of a larger audio system, specifically in combination with a master amplifier. The slave amplifier is responsible for amplifying the audio signal received from the master amplifier and delivering it to the connected speakers.
Here are some key features of the ADASTRA RS480 480W 100V slave amplifier:
Power Output: The amplifier has a power output of 480W, which means it can deliver significant audio power to the connected speakers.
100V Line Output: The amplifier is designed for use in 100V line audio systems. This type of system is commonly used in commercial or public address (PA) applications where multiple speakers are connected in a distributed manner.
Slave Amplifier: The RS480 is a slave amplifier, meaning it requires a master amplifier to provide the audio signal and control. The master amplifier is responsible for signal processing and volume control, while the slave amplifier focuses on amplification.
Rack Mountable: The amplifier is designed to be mounted in a standard 19-inch equipment rack. This allows for easy integration into audio installations where multiple audio devices are housed together.

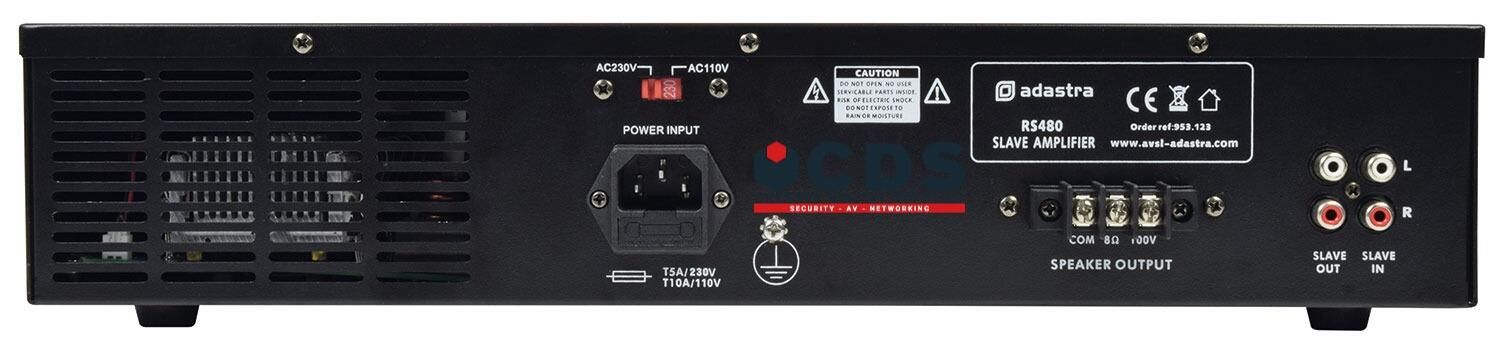

Input and Output Connections: The RS480 features balanced XLR input connectors for receiving the audio signal from the master amplifier. It also provides a 100V line output connection for connecting to the speakers.
Protection Features: The amplifier is equipped with protection features such as overheat, overload, and short circuit protection. These features help safeguard the amplifier and connected speakers from potential damage.
The ADASTRA RS480 480W 100V slave amplifier is a powerful audio device suitable for commercial audio installations where a master-slave amplifier configuration is required to drive multiple speakers in a 100V line system.
DC power N/A
Power : output 480Wrms
Dimensions 433 x 345 x 89mm
Power supply 110/240Vac, 50/60Hz (IEC)
Input RCA slave in
Output : signal 2 x RCA
Controls Master volume
Outputs : speaker 100V and 8 ohms
