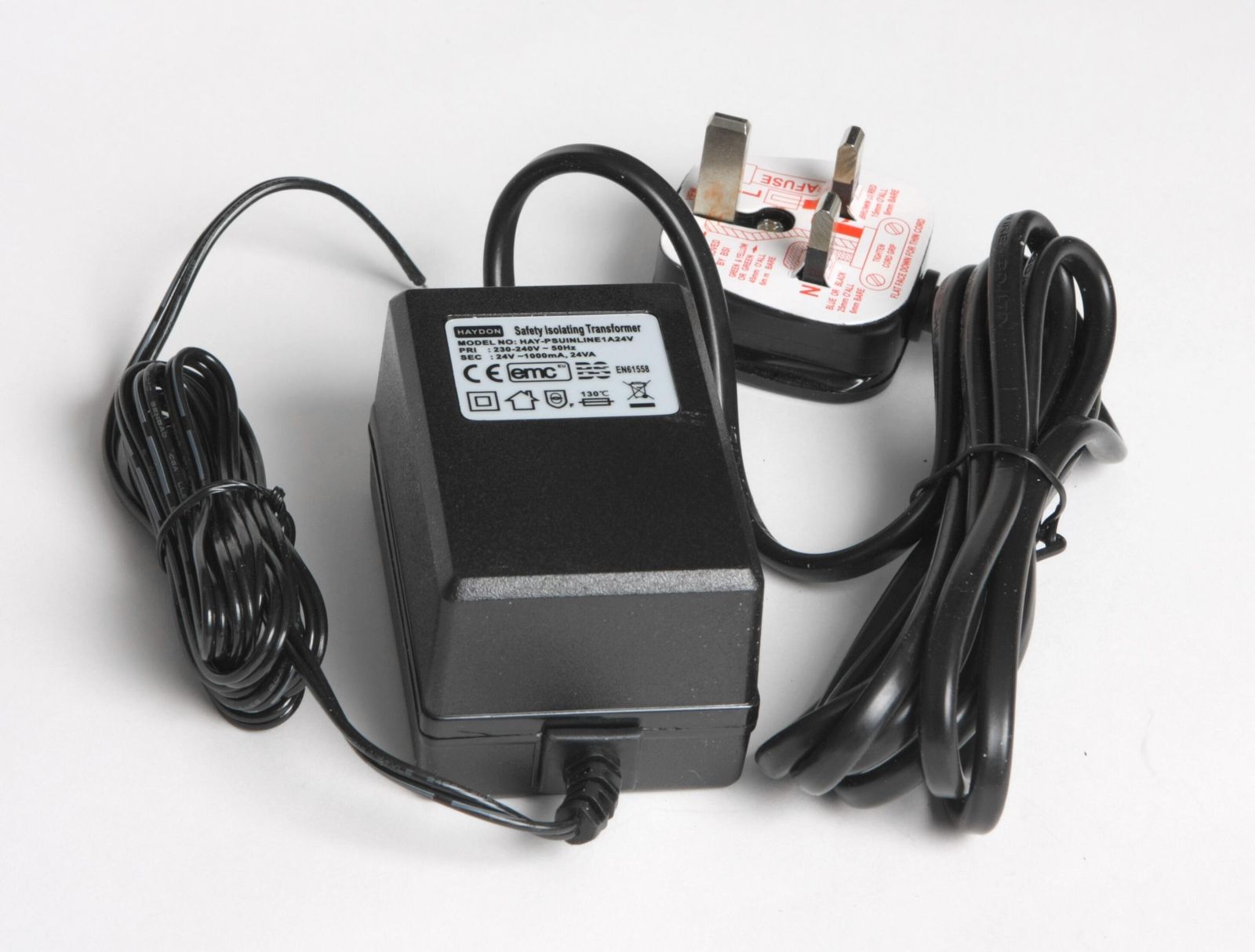

Haydon Inline 24VAC PSU 1 Amp

Haydon Inline 24VAC PSU 1 AMP, with UK PLUG AND 2.1m Jack
Haydon CCTV-Related Products

Haydon Inline 24VAC PSU 1 Amp

Features

  • Model   HAY- PSUINLINE1A – 24V
  • Input Range        240 VAC
  • Input Frequency               50
  • Leakage Current               < 0.5 mA
  • Rated Output Power       24VA
  • Output Voltage 24 VAC±5%
  • Output Current 1AMP
  • Output Load Efficiency   ≥ 70% Min
  • Adjustment Range          Fixed
  • Insulation Class B (130ºC)
  • Protection Class IP20
  • EMC Test             EN55014- 1/-2 EN61000-3-2/-3-3
  • Safety Approval BS EN61558-1/-2-6
  • Operating Temp               - 10ºC to 40ºC
  • Storage Temp    - 20ºC to 70ºC
  • Operating Humidity         0% to 90% RH
  • Size        89.5 x 68 x 58.5mm
  • Cable Length      3.8m
  • UK Plug & 2.1mm Socket              YES
£0.00
£17.99

QTY


Haydon Inline 24VAC PSU 1 AMP, with UK PLUG AND 2.1m Jack

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

24VAC 1 Amp PSU (Power Supply Unit) can be used for a variety of low-power devices that require 24 volts of Alternating Current (AC).

Common applications: LED strip lights: Many LED strip lights operate on 24VAC, and a 1 Amp PSU would be sufficient for powering a short to moderate length of strip light.

Security cameras: Security cameras, especially older models, use 24VAC power. A 1 Amp PSU could power a single camera, depending on its power consumption. Doorbell systems: Some doorbell systems utilize 24VAC for power.

Control systems: Certain low-power control systems for automation or industrial applications might use 24VAC. Small appliances: A 1 Amp capacity might be suitable for powering small appliances designed for 24VAC, like niche appliances or experimental equipment.

It's important to consider the specific device's power requirements before using a 24VAC 1 Amp PSU.

The PSU's current rating (1 Amp in this case) should be equal to or greater than the device's maximum current draw. Using a PSU with a lower current rating could damage the PSU or the device.
