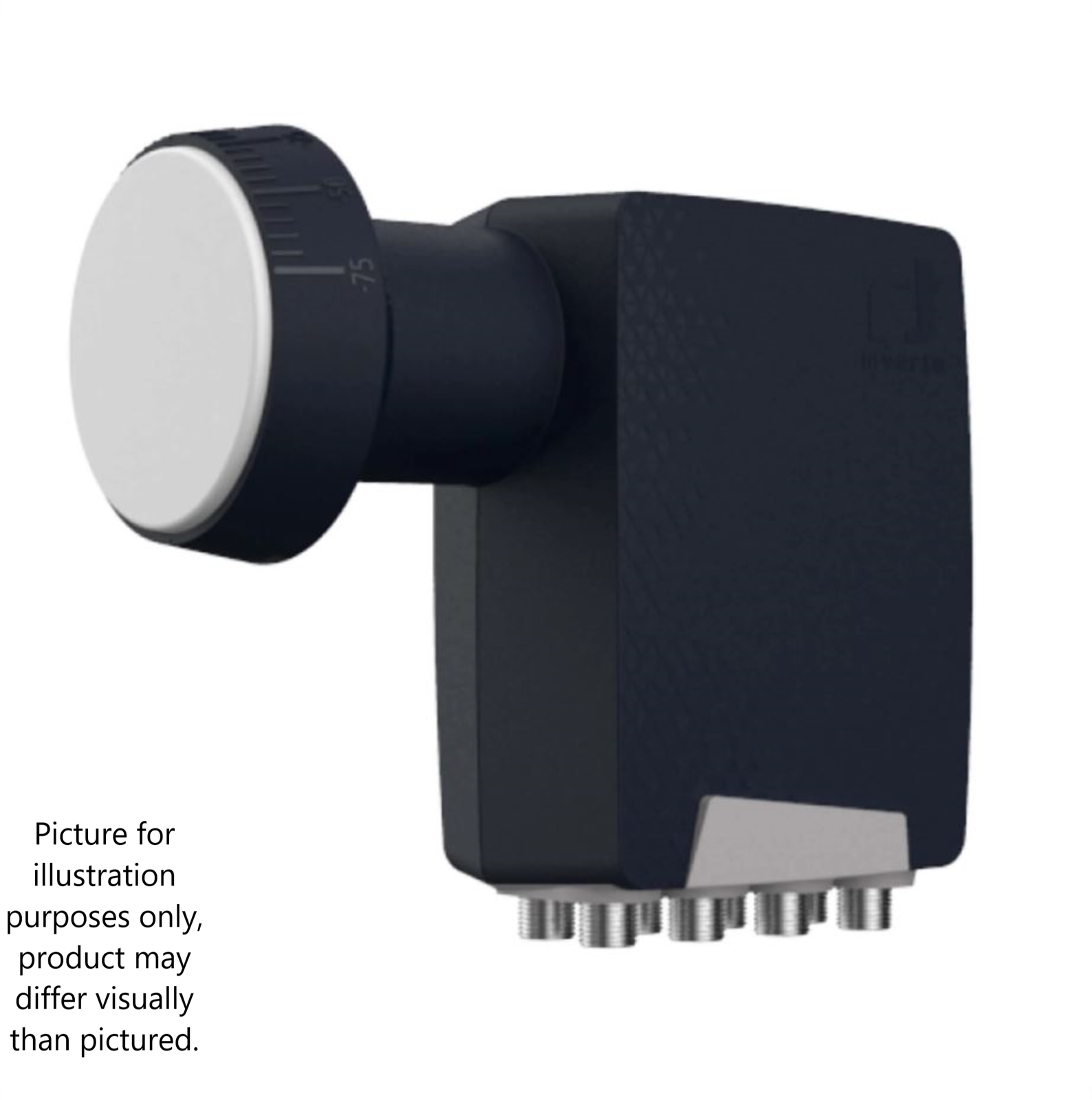

- Inverto Premium 8 Output Universal 40mm PLL LNB
Inverto Premium 8 Output Universal 40mm PLL LNB
Specifically designed to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception.
- Low Phase Noise, DVB-S2 (HD and UHD) compliant
- Low Noise Figure
- Low power consumption
- High Cross Polarization Isolation
- High-Frequency stability
- DOWNLOADS
Input frequency range
10.7 GHz ~ 12.75 GHz
Output frequency range
950 MHz ~ 1950 MHz
Low band LO frequency
9.75 GHz
High band LO frequency
10.6 GHz
Noise figure
0.7 dB typ. (1 dB max.)
LO frequency accuracy @ 25° C
±400 kHz max.
LO temperature drift
±800 kHz max.
LO phase noise @ 10 kHz
-90 dBc/Hz max.
Conversion gain
55 dB min.
Gain ripple (over 26 MHz bandwidth)
±0.6 dB
Gain variation (over full band)
±4 dB
Image rejection
40 dB min.
3th order intermodulation - ICP3
10 dBm typ.
1 dB compression point (@ output)
0 dBm min.
Cross polarization isolation
22 dB min.
Control signal Ca (V)
10.0 V ~ 14.0 V
Control signal Cb (H)
16.0 V ~ 20.0 V
Control signal Cc (band switching)
22 kHz ±4 kHz
Output VSWR
2.3 : 1
In band spurious level
-60 dBm max.
Current consumption
210 mA max. @ 11 VDC ~ 20 VDC
Operating temperature
-30 °C ~ +60 °C
Output impedance (LNB2)
75 Ω
Output connector type
F-type (female)
Dish F/D ratio
0.6
Weight
299 g
