Inverto Premium Quad Universal 40mm PLL LNB

Inverto Premium Quad Universal 40mm PLL LNB

Inverto Premium Quad Universal 40mm PLL LNB

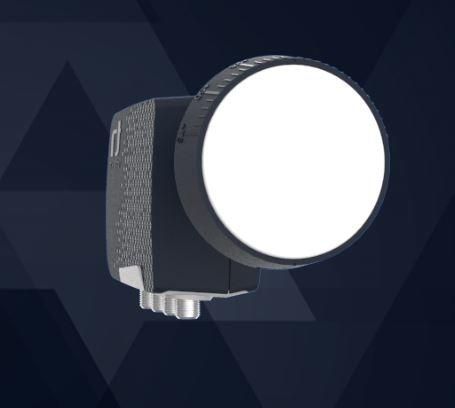

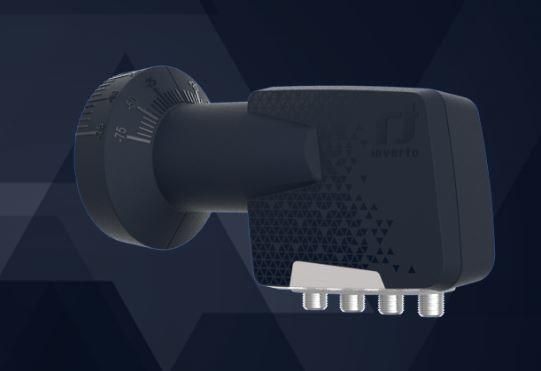

Specifically designed and selected to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception.

It enables the reception of satellite TV and radio from a single satellite and its distribution to four single tuner Set-top boxes (or 2 twin tuner PVR).

The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, has very low power consumption and is engineered to mitigate interferences from 4G/LTE transmissions.

Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.

  • ADDITIONAL INFORMATION
    • Low Phase Noise, DVB-S2 (HD and UHD) compliant
    • Very low Noise Figure
    • Low power consumption
    • High Cross Polarization Isolation
    • High-Frequency stability
  • DOWNLOADS

    Input frequency range

    10.7 GHz ~ 12.75 GHz

    Output frequency range

    950 MHz ~ 2150 MHz

    Low band LO frequency

    9.75 GHz

    High band LO frequency

    10.6 GHz

    Noise figure

    0.2 dB typ. (0.7 dB max.)

    LO frequency accuracy @ 25° C

    ±500 kHz max.

    LO temperature drift

    ±1.0 MHz max.

    LO phase noise @ 10 kHz

    -80 dBc/Hz max.

    Conversion gain

    55 dB min.

    Gain ripple (over 26 MHz bandwidth)

    ±0.6 dB

    Gain variation (over full band)

    ±3 dB

    Image rejection

    40 dB min.

    3th order intermodulation - ICP3

    10 dBm min.

    1 dB compression point (@ output)

    0 dBm min.

    Cross polarization isolation

    22 dB typ., 20 dB min.

    Control signal Ca (V)

    11.0 V ~ 14.0 V

    Control signal Cb (H)

    16.0 V ~ 20.0 V

    Control signal Cc (band switching)

    22 kHz ±4 kHz, 0.4 V ~ 0.8 V pp

    Output VSWR

    2.5 : 1

    In band spurious level

    -60 dBm max.

    Current consumption

    120 mA max. @ 11 VDC ~ 20 VDC

    Operating temperature

    -35 °C ~ +60 °C

    Output impedance (LNB2)

    75 Ω

    Output connector type

    F-type (female)

    Dish F/D ratio

    0.6

    Weight

    221 g



SKUSKU: AE8004
