Klein Pass-Thru™ Modular Data Plug, RJ45

Klein Tools United Kingdom

Klein Pass-Thru™ Modular Data Plug, RJ45

Connectors that provide fast, reliable connector installations for data applications

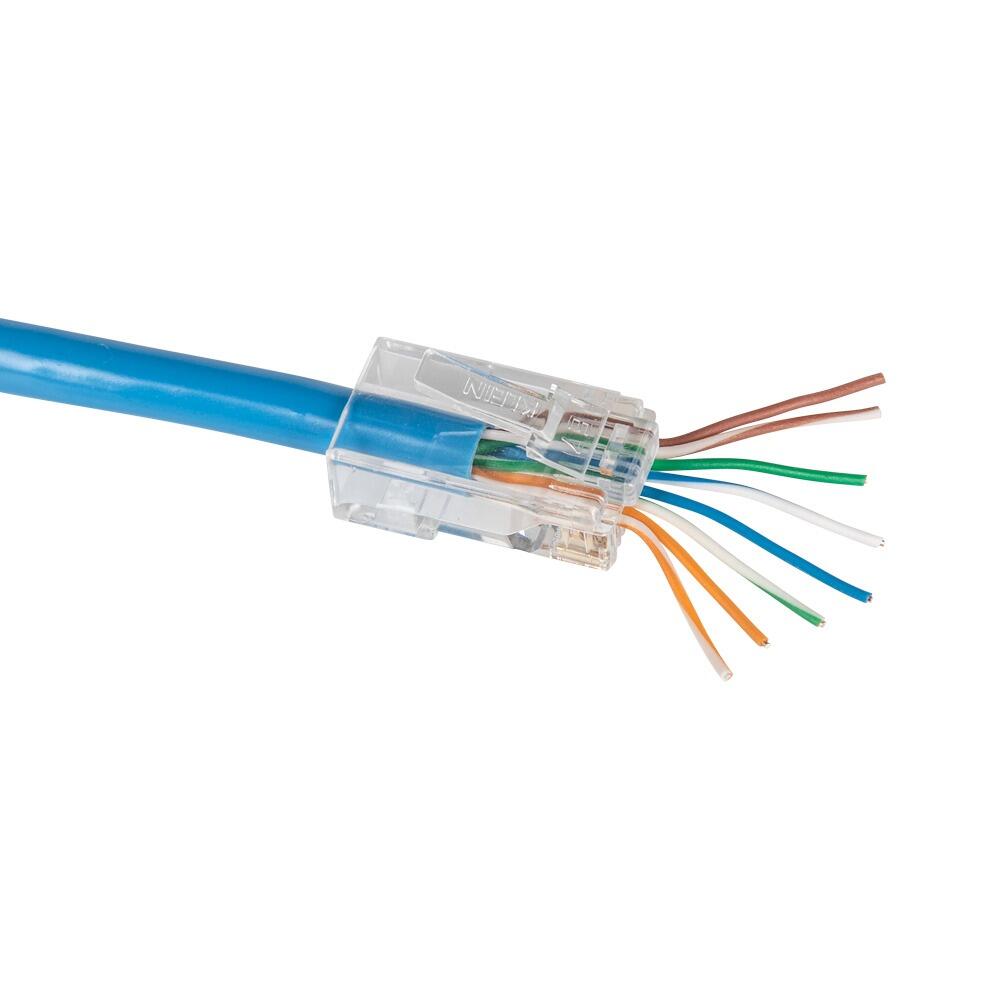

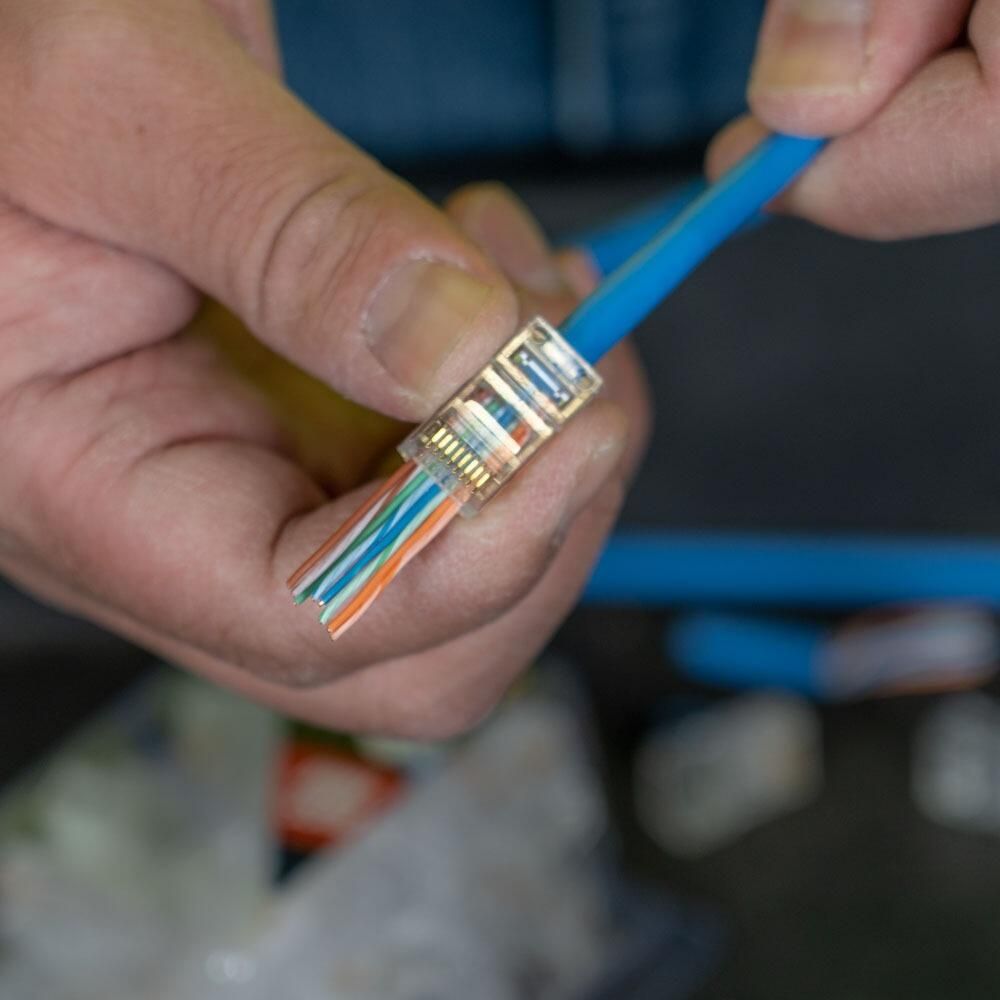

CAT5e and Cat6 cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

50 µ-inch minimum gold plating on all contact surfaces

Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant.

For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110

50-Pack

8 position, 8 contact Pass Through style data plug for solid or stranded cable

Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)

SKU :- VDV826-703 RJ45-CAT6, 50-Pack

SKU :- VDV826-702 RJ45- CAT5E, 50-Pack


Klein Pass-Thru™ Modular Data Plug, RJ45

£0.00
£35.94

QTY


Klein Pass-Thru™ Modular Data Plug, RJ45_cat6

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Klein Modular Data Plug, referred to as an RJ45 plug, is a standardised connector used in networking and telecommunications. The term "RJ45" stands for "Registered Jack 45," and it is the most common type of connector used for Ethernet cables, which are used to connect computers, routers, switches, network cameras (CCTV) and other network devices.

The RJ45 plug is designed for use with twisted pair cables, typically Cat5e, Cat6, cables. It has eight pins and is used for connecting network cables to Ethernet ports on devices. Each of the eight pins in an RJ45 plug has a specific function, and they are arranged in a way that ensures proper data transmission.

The RJ45 connector is widely used for both wired Ethernet networks and telephone connections. It's known for its durability and ease of use, making it the de facto standard for connecting devices in local area networks (LANs). To create a functional network cable, you typically crimp an RJ45 plug onto the ends of the twisted pair cables, which are then plugged into the corresponding jacks on network devices.

RJ45 connectors come in different variations to support various Ethernet standards, including 10/100/1000 Mbps (Gigabit Ethernet) and even faster connections. It's important to use the appropriate type of RJ45 connector and cable for your specific networking needs to ensure proper performance and compatibility.

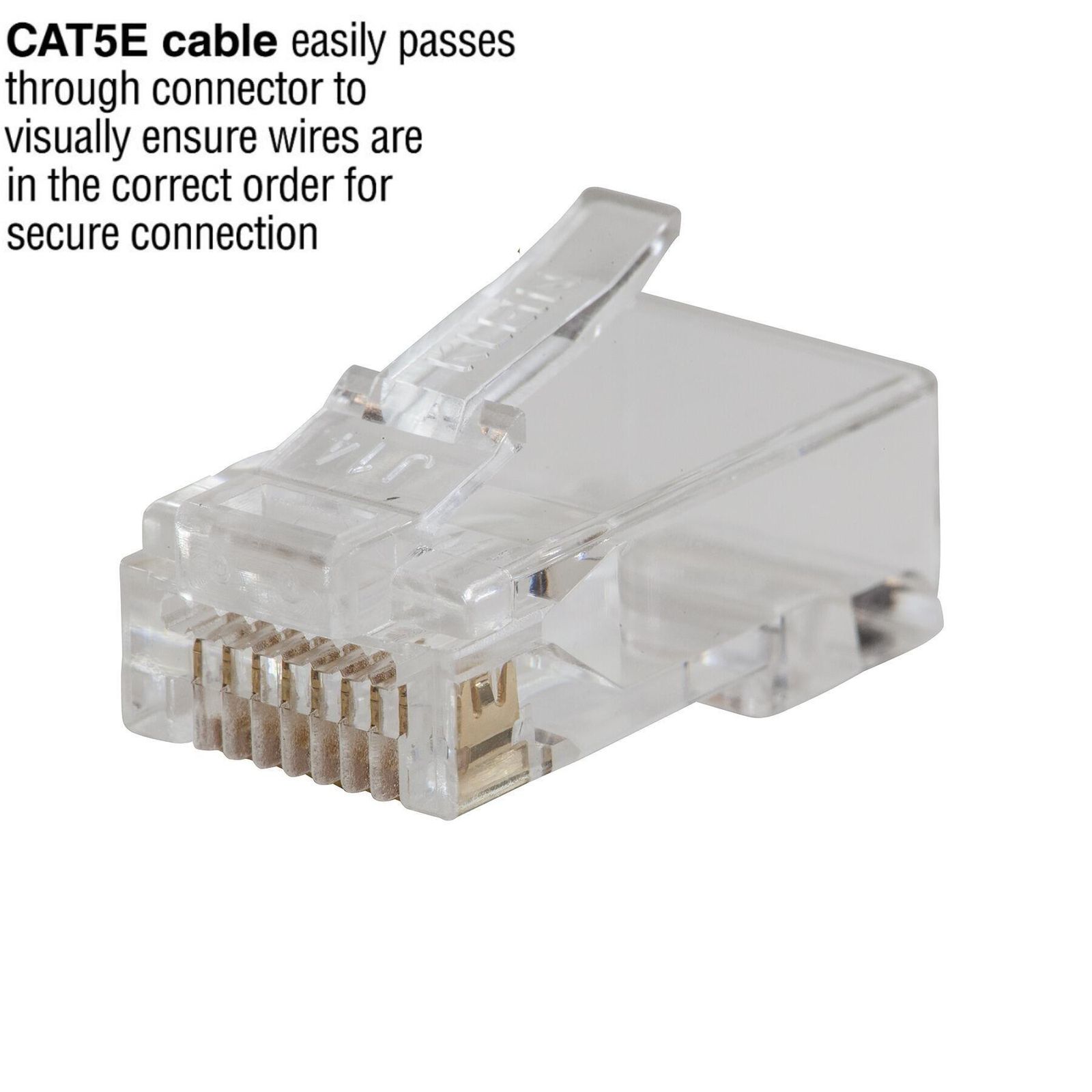

Specifications : VDV826-702 RJ45- CAT5E

  • Type: Modular
  • Application: Voice and Data
  • Special Features: Pass-Thru Technology
  • Overall Length: 0.875'' (2.2 cm)
  • Overall Height: 0.453'' (1.2 cm)
  • Overall Width: 0.094'' (0.2 cm)
  • Material: PVC Plastic; Gold Plated Contacts
  • Connector Type: RJ45
  • Cable Type: CAT5e
  • Position & Contacts: 8P 8C
  • Connector Colour: Clear
  • Solid Conductor Wire: Yes
  • Stranded Conductor Wire: Yes
  • Package Quantity: 50
  • Weight: 4.8 oz. (0.14 kg)
  • UPC: 092644690822

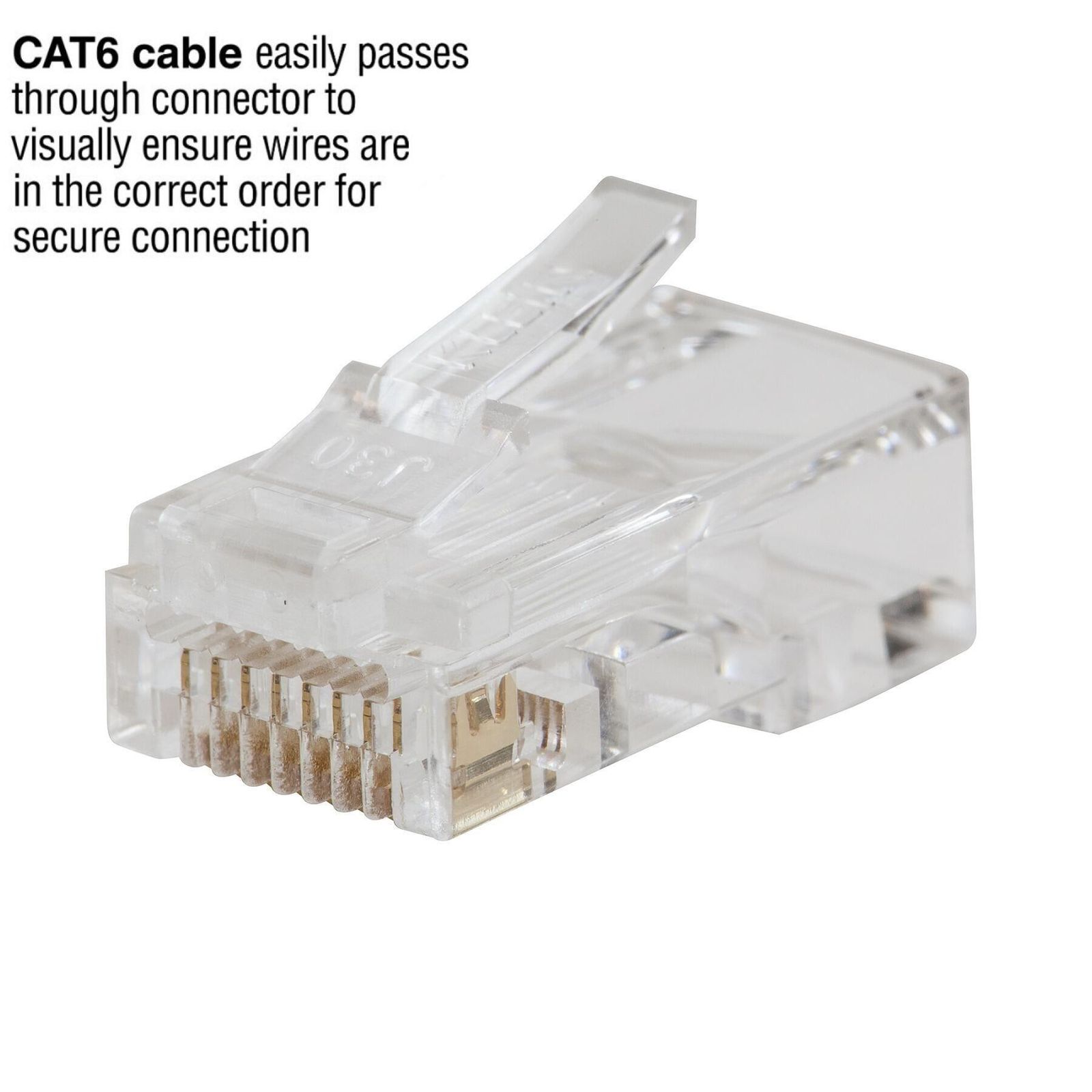

Specifications : VDV826-703 RJ45-CAT6

  • Type: Modular
  • Application: Voice and Data
  • Special Features: Pass-Thru Technology; Meets All POE Standards
  • Overall Length:0.875'' (2.2 cm)
  • Overall Height: 0.453'' (1.2 cm)
  • Overall Width: 0.094'' (0.2 cm)
  • Material: PVC Plastic; Gold Plated Contacts
  • Connector Type: RJ45
  • Cable Type: CAT6
  • Position & Contacts: 8P 8C
  • Connector Color: Clear
  • Solid Conductor Wire: Yes
  • Stranded Conductor Wire: Yes
  • Package Quantity: 50
  • Weight: 4.8 oz. (0.14 kg)
  • UPC: 092644690938

PDFSpec Sheet
