Klein Tester Kit VDV501-851

Klein Tools - Cable Tester Kit with Scout Pro 3 Tester, Remotes, Adapter and Battery

Play video

Klein Tools United Kingdom

Klein Tester Kit VDV501-851

Name: Klein Tester Kit VDV501-851
Brand: Klein Tools United Kingdom
SKU: VDV501-851
Price: 162.66 GBP
Availability: InStock

Data / Coax Cable Tester Kit

The Scout™ Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests Voice, Data and Video cables.

Klein Tester Kit VDV501-851, also known as the Scout® Pro 3 Tester Starter Kit, is a versatile tool used for:

Testing voice, data, and video cables:

This includes testing cables with RJ11/12 (voice), RJ45 (data), and coax F-connectors (video).

Identifying cable faults:

It can detect open circuits, short circuits, mis wires, and split-pair faults.

Measuring cable length:

The tester can measure the length of cables, helping to determine cable run distances.

Locating and mapping cables:

It includes remotes that allow users to identify and map multiple cable runs.

Tracing cables:

It also has a tone generator to trace cables, when used with an analogue probe.

Identifying port locations:

It has a hub blink mode to help identify port locations on hubs or switches.

In essence, it's a comprehensive tool for professionals who work with various types of cabling, helping them to ensure proper installation and troubleshoot cable issues.

Trade log in

£0.00

£162.66

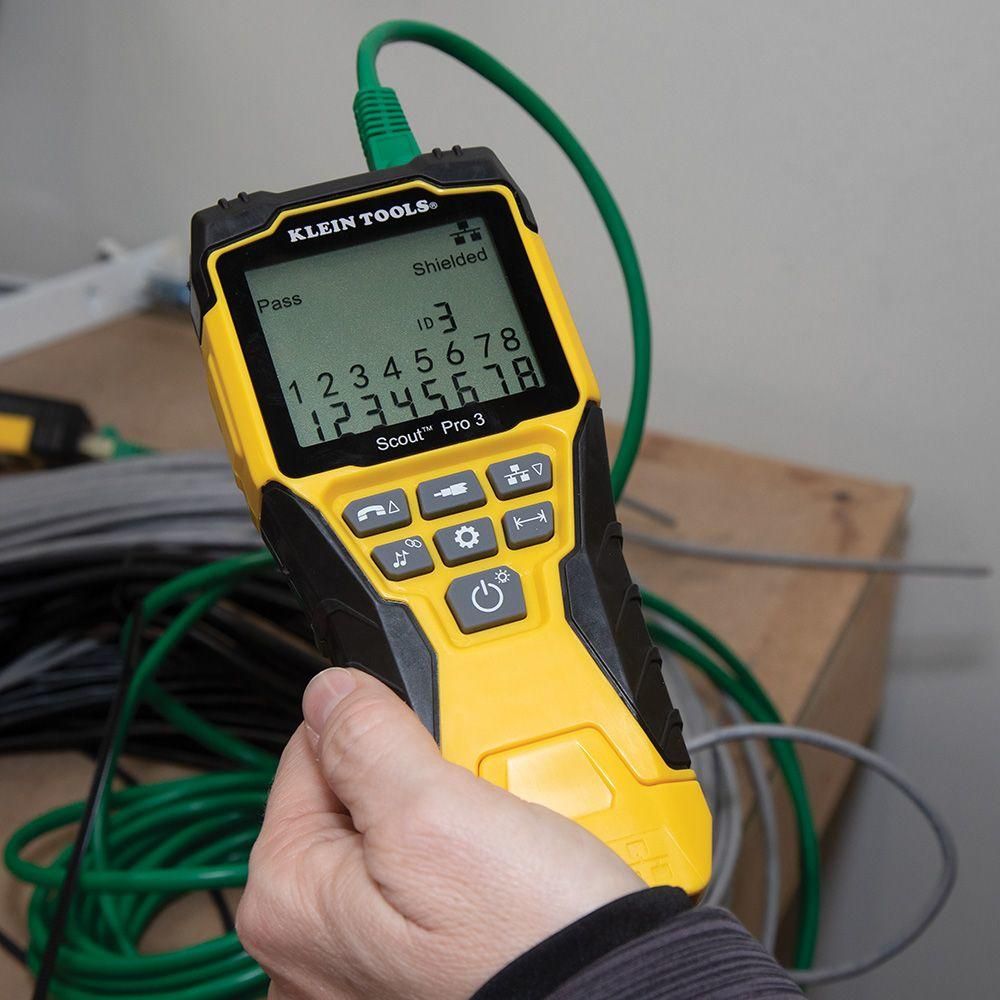

Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
Measures cable length of up to 2000' (610 m)

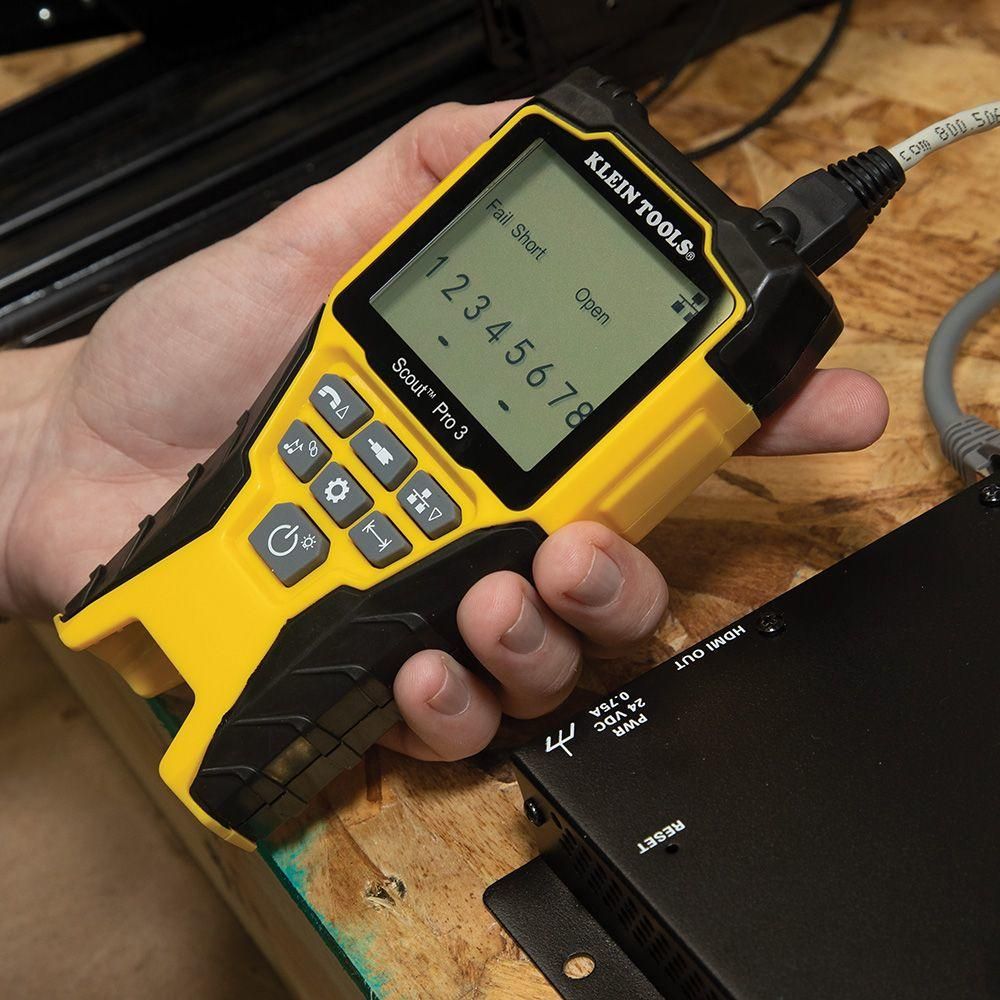

Test for open, short, miswired or split-pair faults
Backlit LCD screen displays cable length, wiremap, cable ID and test results
Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analogue probe Cat. No. VDV500-123; sold separately)

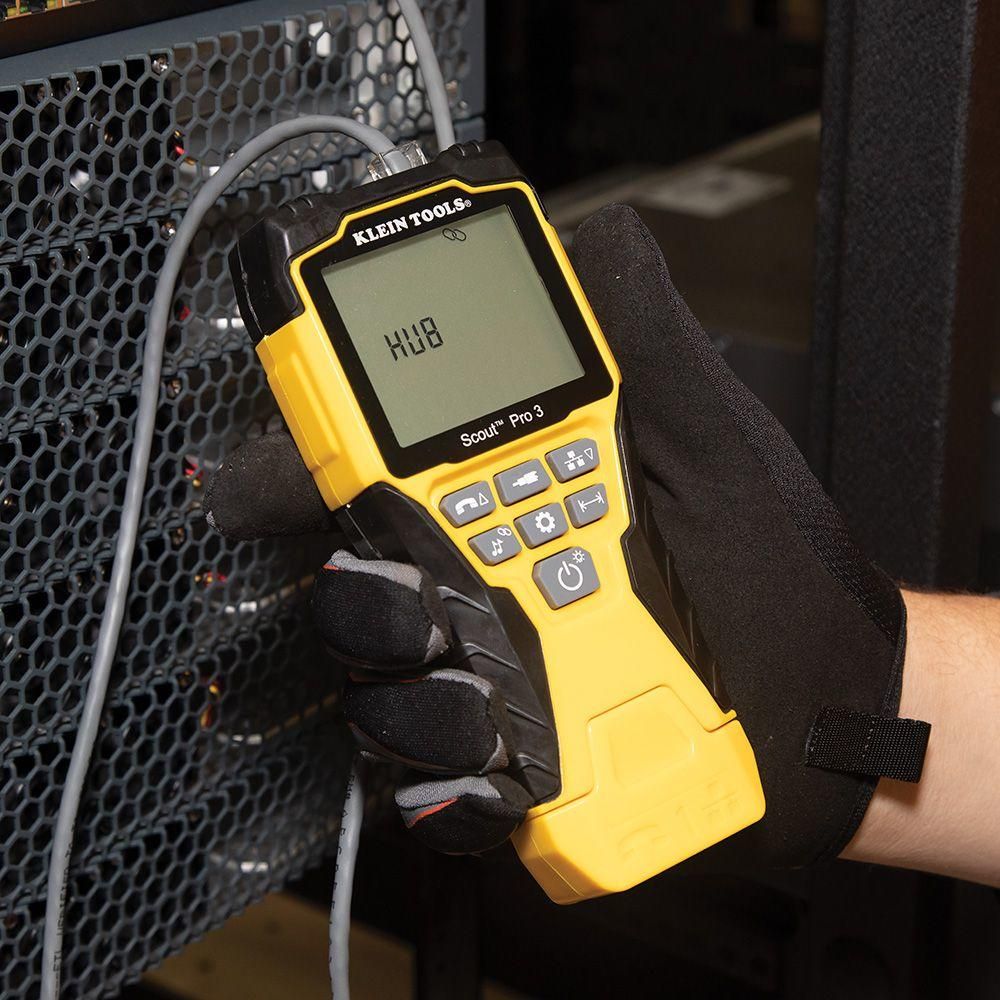

Hub blink mode to identify port location on a hub or a switch
LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step
Includes voltage warning, shield detection, auto power-off, low-battery indicator and a self-storing remote control

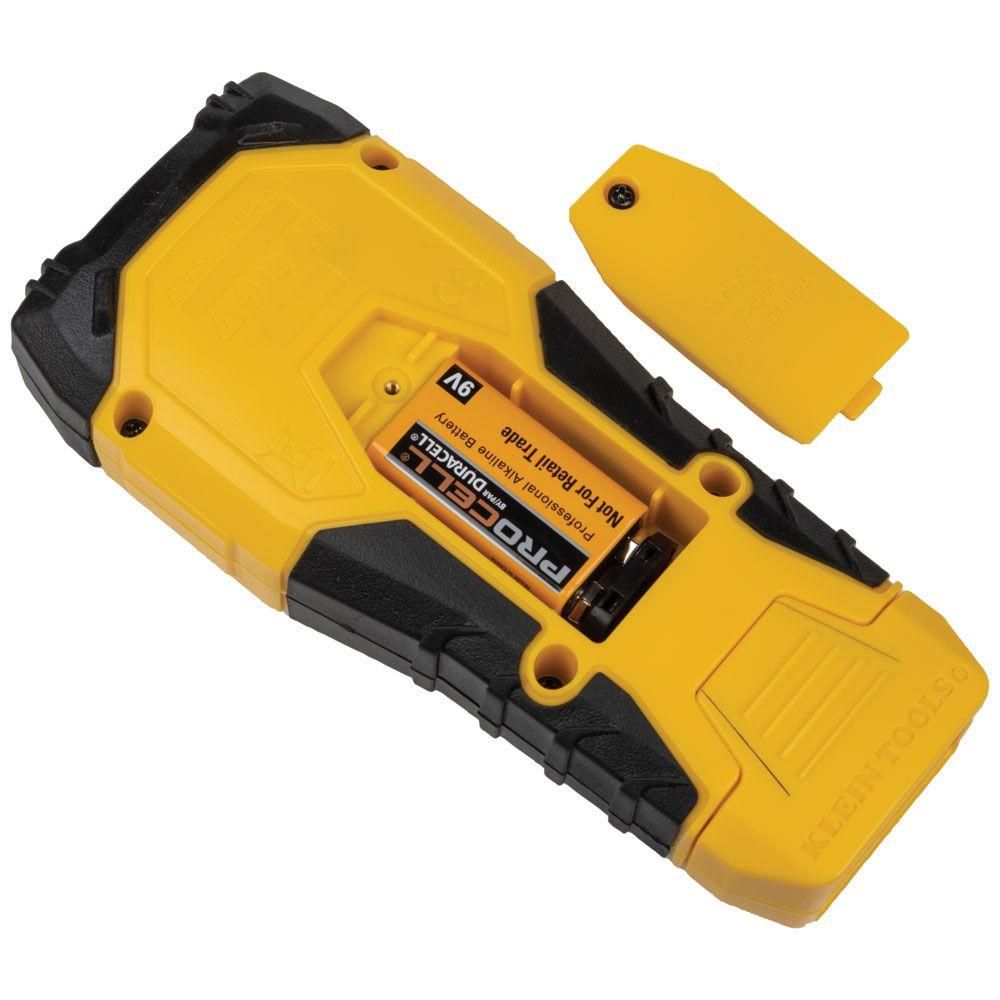

Auto Power-Off feature to conserve battery life (9V included)

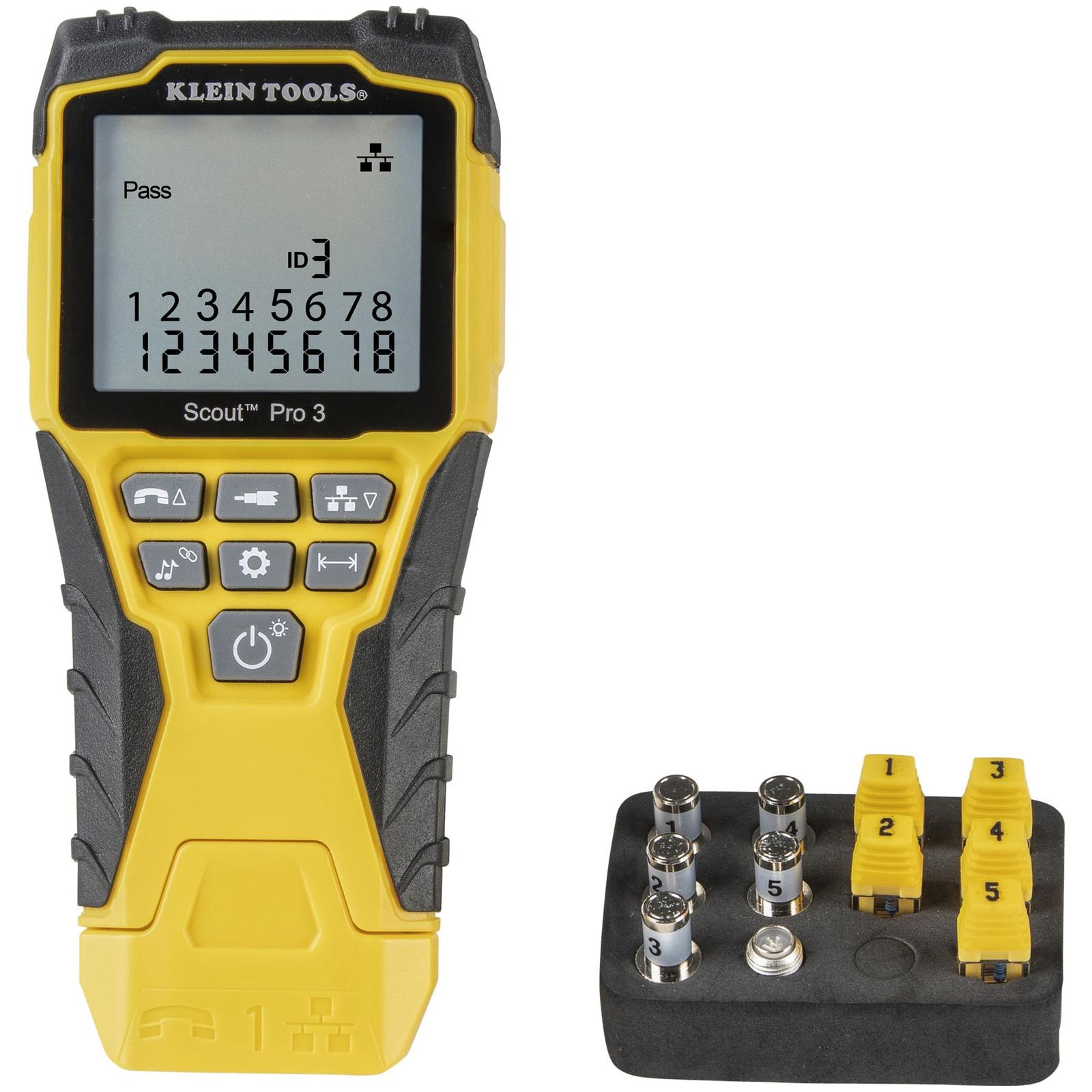

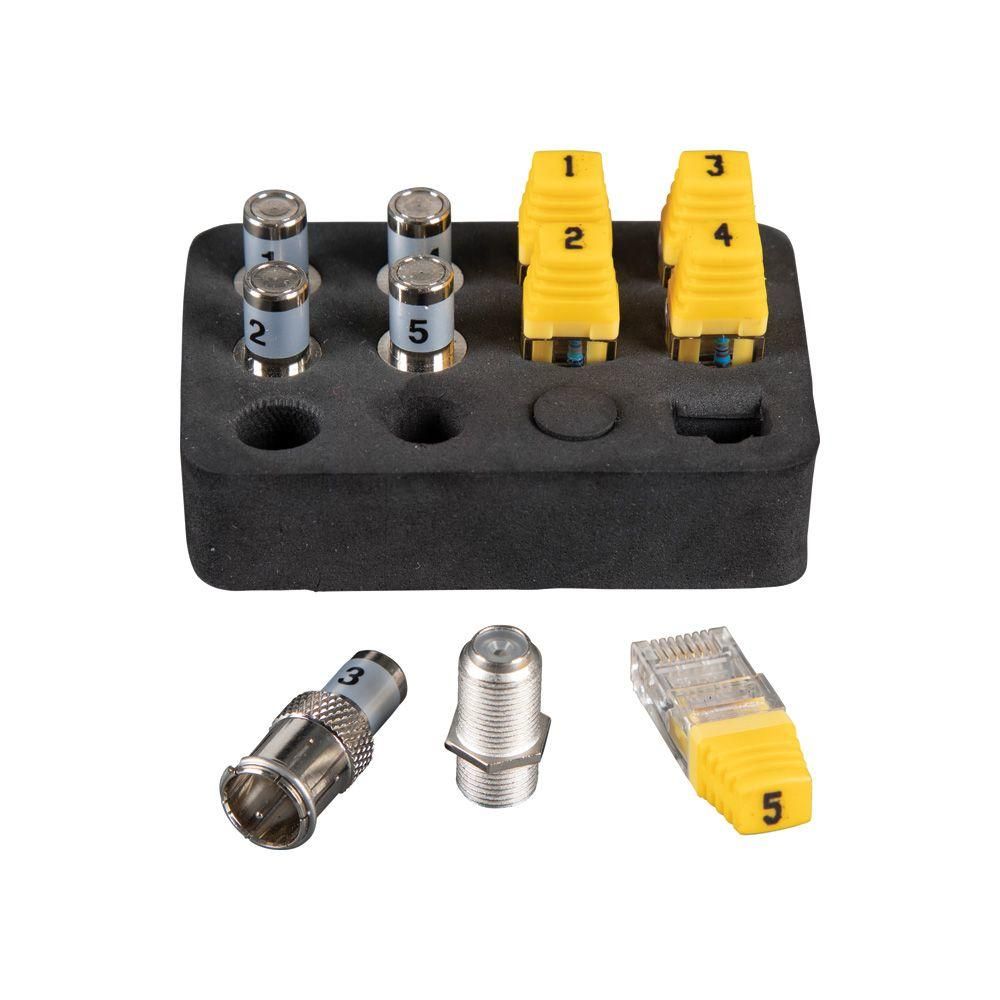

Kit includes: Scout™ Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-Connector locator remotes, (1) Coax F-Connector, manual and 9V battery

WARNINGS

Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
Always wear approved eye protection.
Do NOT use on live circuits.

Type: Twisted Pair, DATA, Voice, LAN and Coaxial

Application: Cable Testing

Special Features: Measures Cable Length; Backlit LCD; Hub Blink

Cable type: DATA: Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7, COAXIAL: RG59, RG6/6Q

Overall Length: 7'' (17.8 cm)

Overall Height: 3'' (7.6 cm)

Overall Width: 1.25'' (3.2 cm)

Material: Plastic and Metal

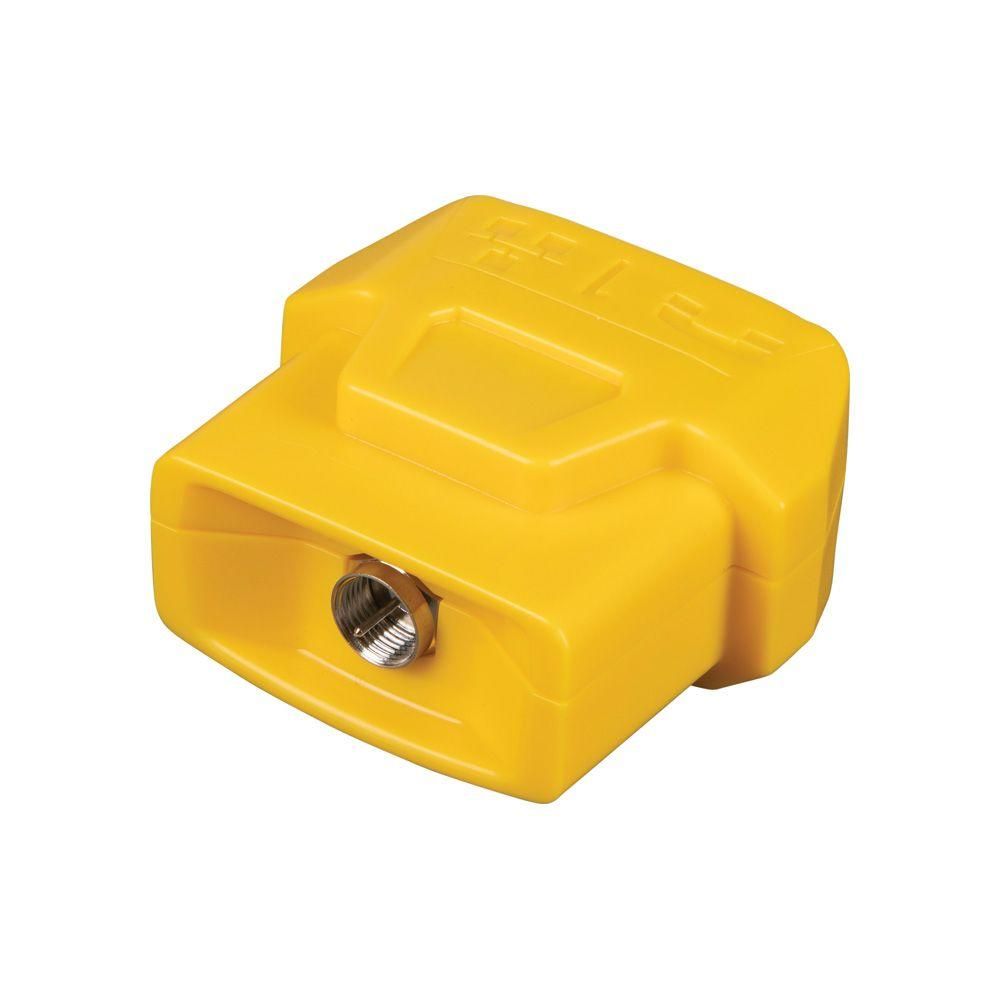

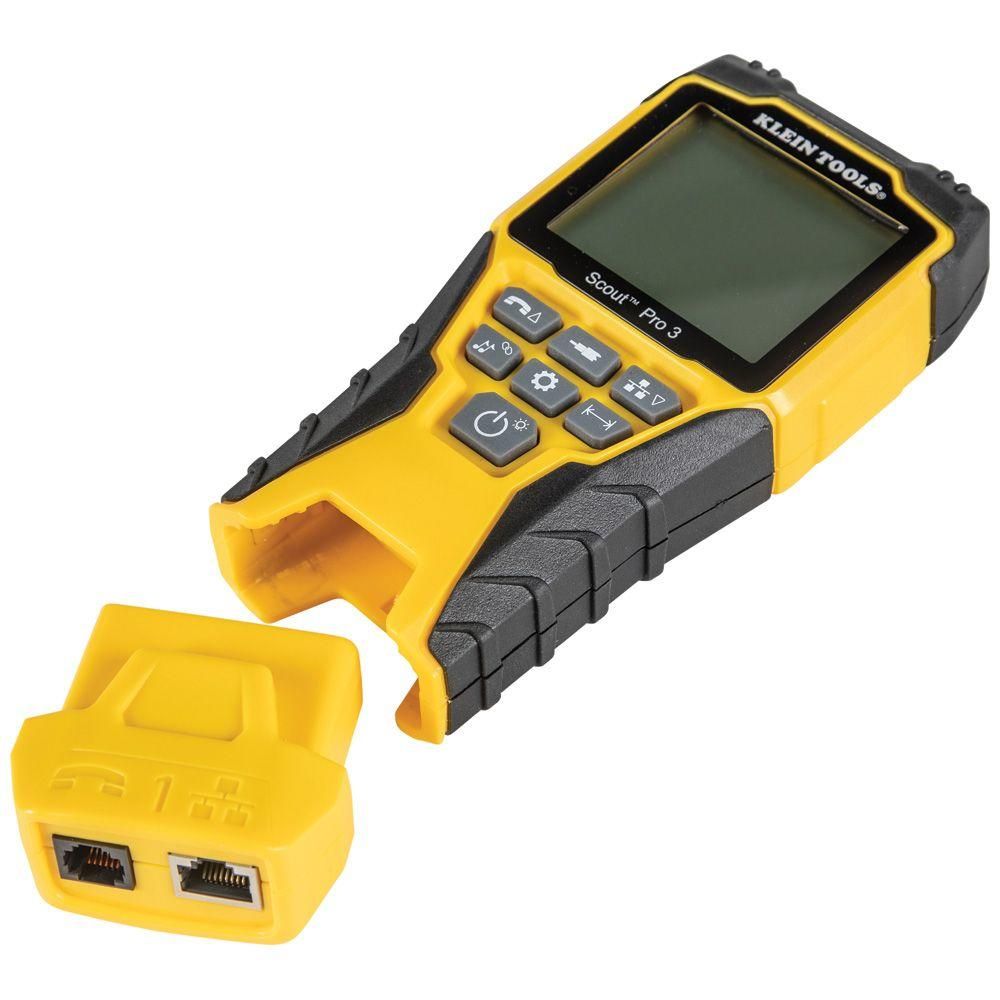

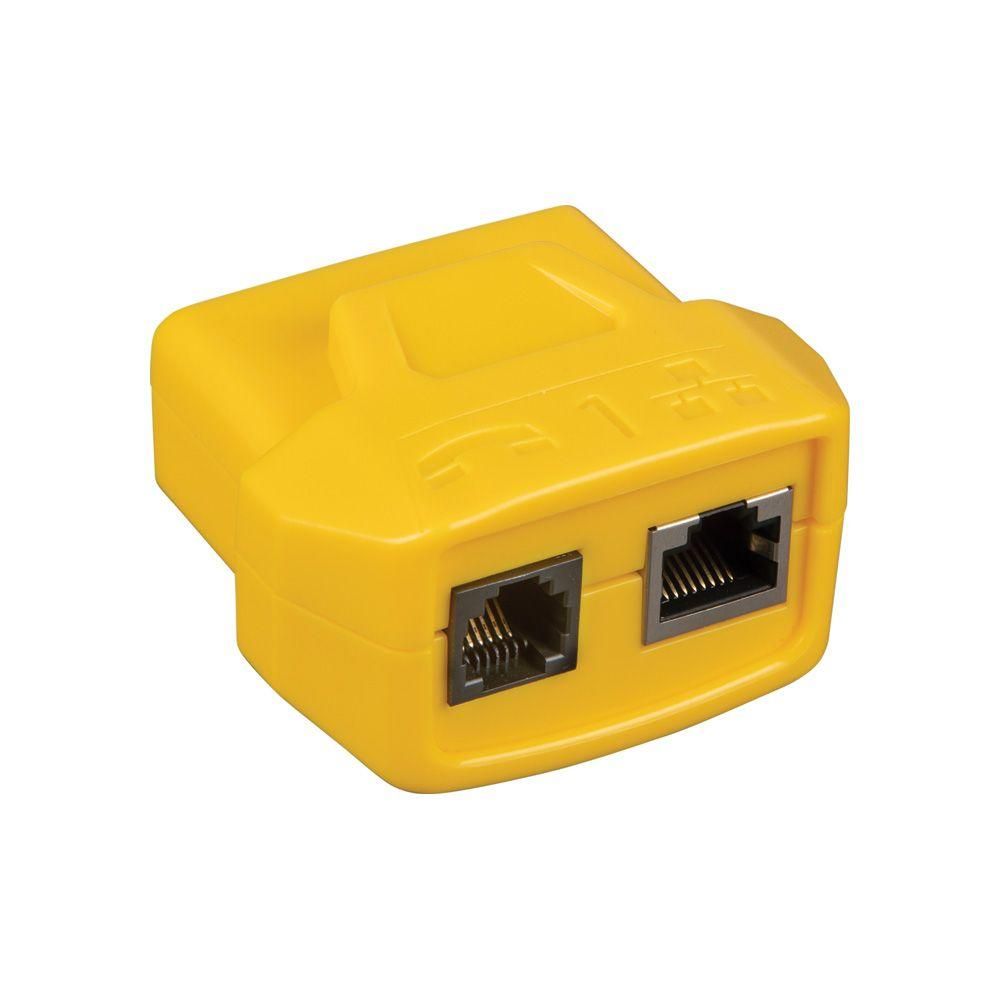

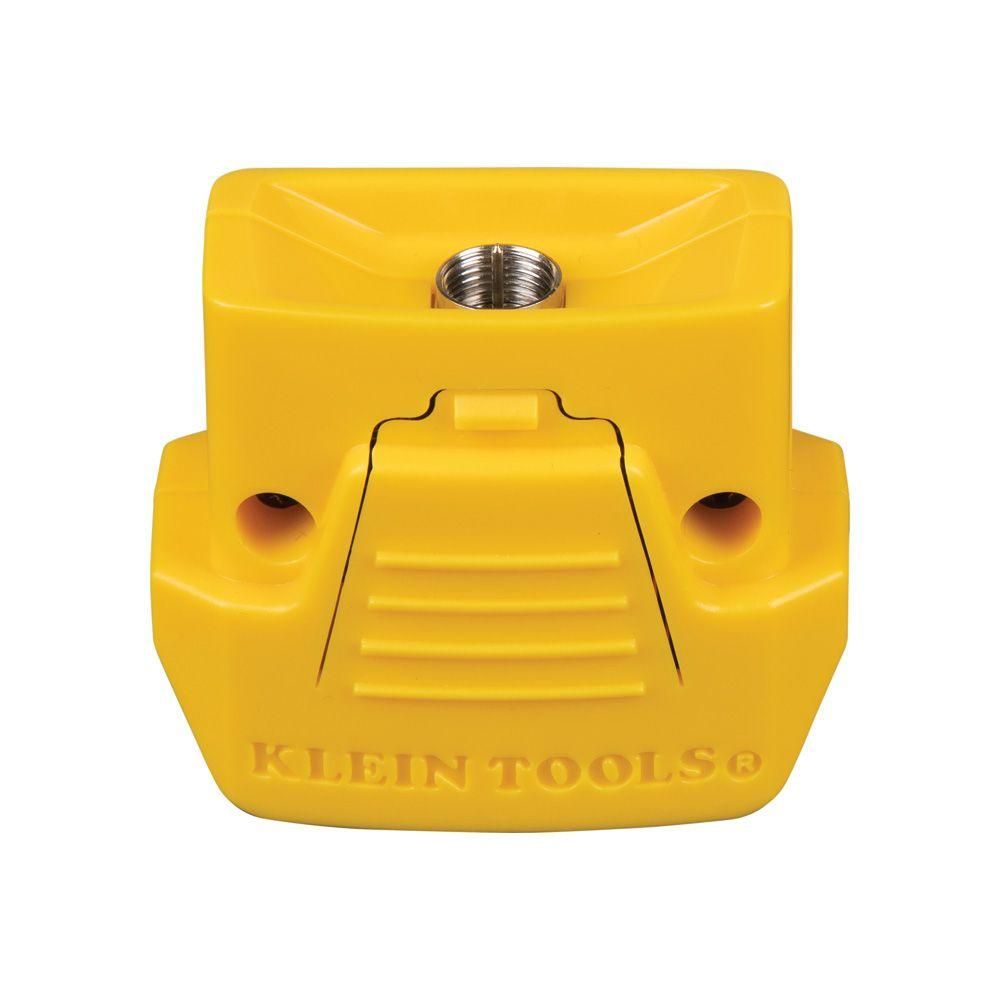

Test-n-Map ID Remotes: (1) Self-Storing

Location ID: (5) RJ45 Data and (5) F-Coax Connector Locator Remotes

Batteries: 9V Alkaline

Battery Life: 50 Active Hours

Drop Protection: 2 m

Supported Remotes: 18

Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F

Display: Back-lit LCD

Multiple-style tone generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately

Faults detected: Open, Short, Mis-wire

Testing & Measurement Types: Ethernet / Data and Coaxial

Included: Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-Connector Locator Remotes, (1) Coax F-Adapter, Manual, (1) 9V Battery

Standard: CE

Weight: 1.2 lb (0.5 kg)

UPC: 092644692260
