Neo8A 8x10 HDBaseT B-Class Matrix

P8-HDBT-L-FFMN810A-KIT

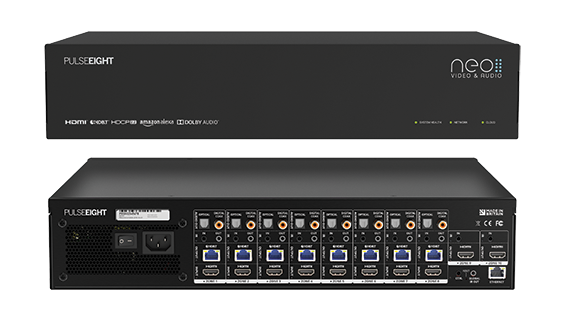

Neo8A 8x10 HDBaseT B-Class Matrix

Pulse eights flagship fixed format 8x10 HDBaseT matrix, includes 8 HDBaseT 70m Class B PoH receivers.

Smarter TV

What you see is what you control, instead of complex remote controls, use your original TV remote

Contextual IR

4 in, 4 out, that's 16 possible combinations of your video. Historically matrixes have offered remotes with 8 or 16 buttons, requiring multiple presses to get video to the TV your watching. We thought this was an odd solution, given you already known which room you are in, so should the matrix! Our designers did away with this old concept and instead created Contextual IR, this reduces the number of buttons to just 4, one for each possible input. Whatever room your in, select 1, 2, 3, 4 and watch that source instantly.

Rack mountable

Small and lightweight, can be mounted into almost any rack type. Matching your existing equipment so it seamlessly blends in.

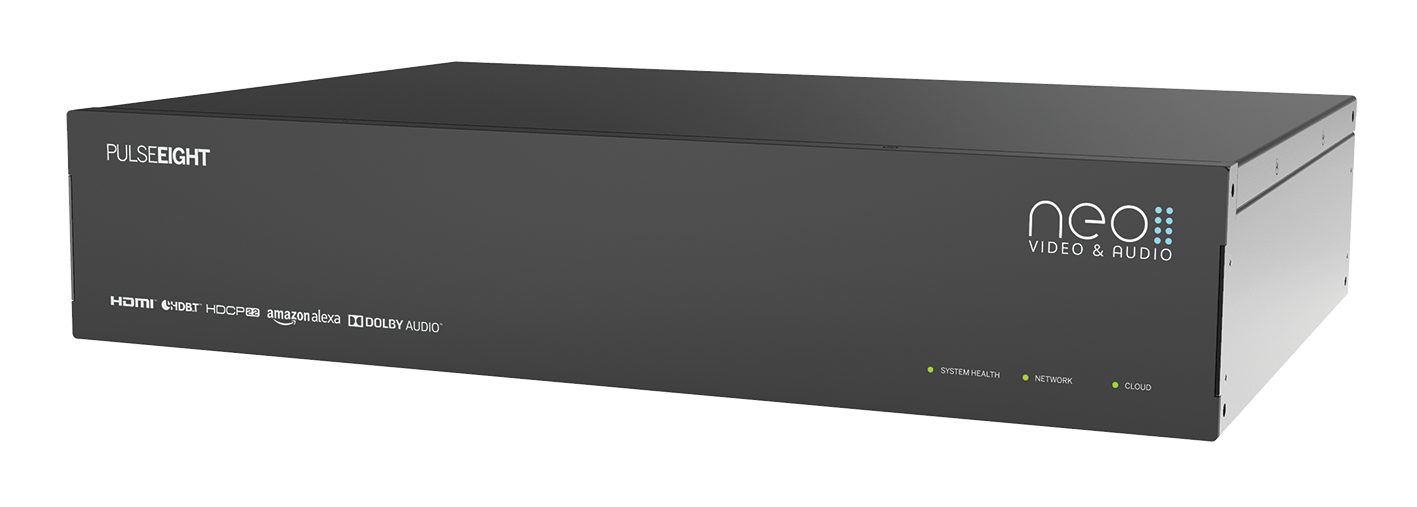

Monitoring

It's important that you get video all the time, to help us do that every neo professional matrix keeps in contact with our cloud management service. You can tell if this is working with the Monitored LED on the front of the matrix. If you get stuck, your installer or yourself can log into our cloud portal and see helpful diagnosis information (if you let them), fix problems remotely or tell you where you may have gone wrong in the installation. All of this is free of charge. If neo has a problem, we get alerted too and we can get in contact to arrange a hardware replacement or give you a step-by-step guide to get you up and running again.

Instant On

In the UK, Sky (one of the main satellite TV providers) recently added CEC support, the way they did it was pretty interesting (simply press the "Sky" button and your TV turned on and so did the Sky+ HD box) and it gave us an idea, we could do this with neo. With Instant On, press the Sky button in any room and we will detect this, turn the TV on and switch the video path to the Sky+ HD box.


But we go one step further, if you have more than one Sky+ HD box connected to neo then we will intelligently detect which Sky+ HD box is not in use and route this to your TV

Don't worry if you are not in the UK, Instant On can be customised for just about any collection of source devices

Web Interface

We want to give you the best experience possible, to do this, we think it's important you can access neo from any device, be it mobile, tablet or desktop PC and in any browser. We've done this with our responsive design, so it works with you and not the other way round. Our web interface is built directly on top of our REST/API, this means that whatever you can do on your phone, you can get your control system to do also and vice versa. There are no hidden tricks or special codes that require a magic moon dance to work. All of our documentation is free and available on our monitoring site.



  • ADDITIONAL INFORMATION


  • SPECIFICATIONS

    Full Specification & Features

    THIRD PARTY CONTROL

    Control 4 (OS2 and OS3), Crestron, Elan, RTI, Savant

    WHAT'S IN THE BOX

    Kit Includes:

    neo:8a Chassis

    8x neo:Lite PoH Receivers

    Rack Mounting Kit

    1x IR Blaster Cable Pack

    Power Cord

    Installation Guide

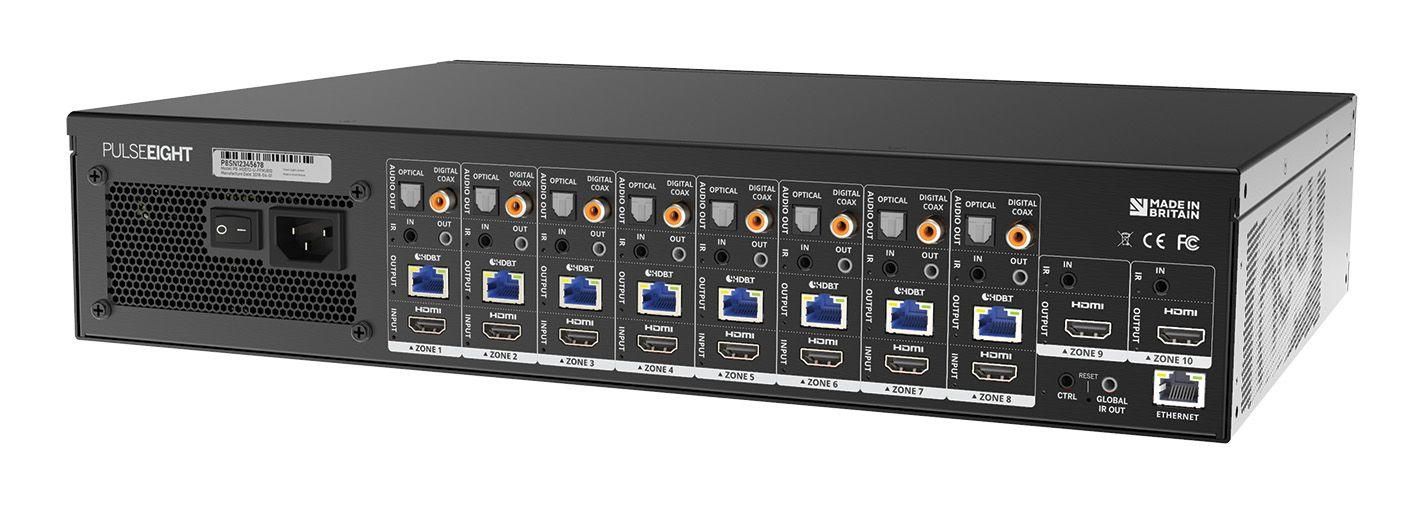

    INPUT TYPE(S) HDMI

    OUTPUT TYPE(S)

    HDBaseT

    Optical Audio

    Digital Coax Audio

    Connectivity HDMI INPUTS8

    VIDEO INPUT ZONES8

    AUDIO OUTPUT ZONES8x Source Audio Breakouts (Optical Audio or Digital Coax)

    HDBASET OUTPUTS8 x HDBaseT Class B (lite)

    HDMI OUTPUTS2

    OPTICAL AUDIO OUTPUTS8x Source Audio Outputs (linked to each HDMI input)

    DIGITAL COAX AUDIO OUTPUTS8x Source Audio Outputs (linked to each HDMI input)

    HDCP

    HDCP 1.4

    HDCP 2.2

    HDCP 2.3

    POWER INLETIEC C14 Inlet - 110-240V~ / 50-60Hz / 4.0A

    Special Features ETHERNET PASS-THROUGH No

    DSC (DISPLAY STREAM COMPRESSION) No

    ARC (AUDIO RETURN CHANNEL) No

    POH (POWER OVER HDBASET)8 x neo:Lite PoH Receivers included in Kit

    REMOTE MONITORING Real Time Remote Monitoring Portal

    Control HDMI-CEC Yes

    SERIAL CONTROL No

    IR CONTROL Bi-Directional

    CONTEXTUAL IR ROUTING Yes

    PROGRAMMABLE IRYes

    VOICE CONTROL Yes - Alexa Skill

    WEB INTERFACE / ANDROID APPYes + Android App available

    Dimensions and WeightDEPTH30.5 cm / 12 inches

    HEIGHT9 cm / 3.5 inches (2U)

    WIDTH44 cm / 17.3 inches

    WEIGHT3.78 kg / 8.4 lb (Matrix)

    Picture (processing)MAXIMUM PIXEL CLOCK340Mhz

    MAXIMUM BANDWIDTH10.2Gbps

    SUPPORTED VIDEO FORMATS4K@60Hz 4:2:0, 4K@30Hz 4:4:4, HDR10@24Hz, 720p, 1080i, 1080p (+3D)

    MAX VIDEO RESOLUTION4K@60Hz 4:2:0 or 4K@30Hz 4:4:4

    Regulatory POWER CONSUMPTION Max 2Amps @ 240V

    OPERATING TEMPERATURE0 to +35°C (32 to +95°F)

    STORAGE TEMPERATURE-4°F to 140°F (-20°C to 60°C)

    SAFETY & EMISSIONUKCA, CE, FCC, RoHS

VIDEO

SKUSKU: P8-HDBT-L-FFMN810A-KIT
