PROception Products

Proception HDMI over CAT6 Extender

HDMI Extender can extend high definition video/audio signal and IR control signal up to 70m

1080p resolution, and 131ft/40m for 4K30 resolution

via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver.

This extender with HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz.

It supports EDID copy function (you can choose local or remote EDID). It supports audio formats up to PCM7.1, Dolby True HD, DTS HD.

This product can be widely used in multimedia conference halls, TV teaching and large-screen displays.

  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Supports video resolution up to 4k2k@30Hz YUV 4:4:4
  • The maximum transmission distance via a single CAT6/5E cable is as follows:

CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30

CAT5e: 197ft/60m for 1080p, 115ft/35m for 4K30

  • Support copying EDID from receiver display or loop out display
  • Allow for cascading via additional HDMI loop out port Support one-way POC functionality (from transmitter to receiver)
  • One-way IR signal transmission
  • Compact design for easy and flexible installation
  • Ideal for extending HDMI Freesat // freeview // Sky Q // Sky HD // DVD Players // NVR // DVR etc

Sku:-PROHDMIEX70M

Trade log in



£0.00
£53.82
  • Add 2 x 1m Premium HDMI Cables

QTY


4K 70m HDMI over CAT5 / 6 / 7 Extender with IR, PoE

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Proception HDMI extender over Cat 6 is a device that allows you to transmit HDMI signals over long distances using Cat 6 Ethernet cables. Here's how it works:

HDMI signal is inputted into the transmitter unit of the extender.

The transmitter unit converts the HDMI signal into a form that can be transmitted over Ethernet cables.

The Ethernet cables are then used to transmit the signal from the transmitter unit to the receiver unit of the extender.

The receiver unit converts the Ethernet signal back into an HDMI signal and outputs it to the display device.

Some of the benefits of using a 1.4 HDMI extender over Cat 6 include:

Long-distance transmission: You can transmit HDMI signals over much longer distances than with a standard HDMI cable.

Reduced signal degradation: Ethernet cables are better at reducing signal degradation over long distances, resulting in a better overall signal quality.

Cost-effective: Using Ethernet cables is often more cost-effective than using long HDMI cables.

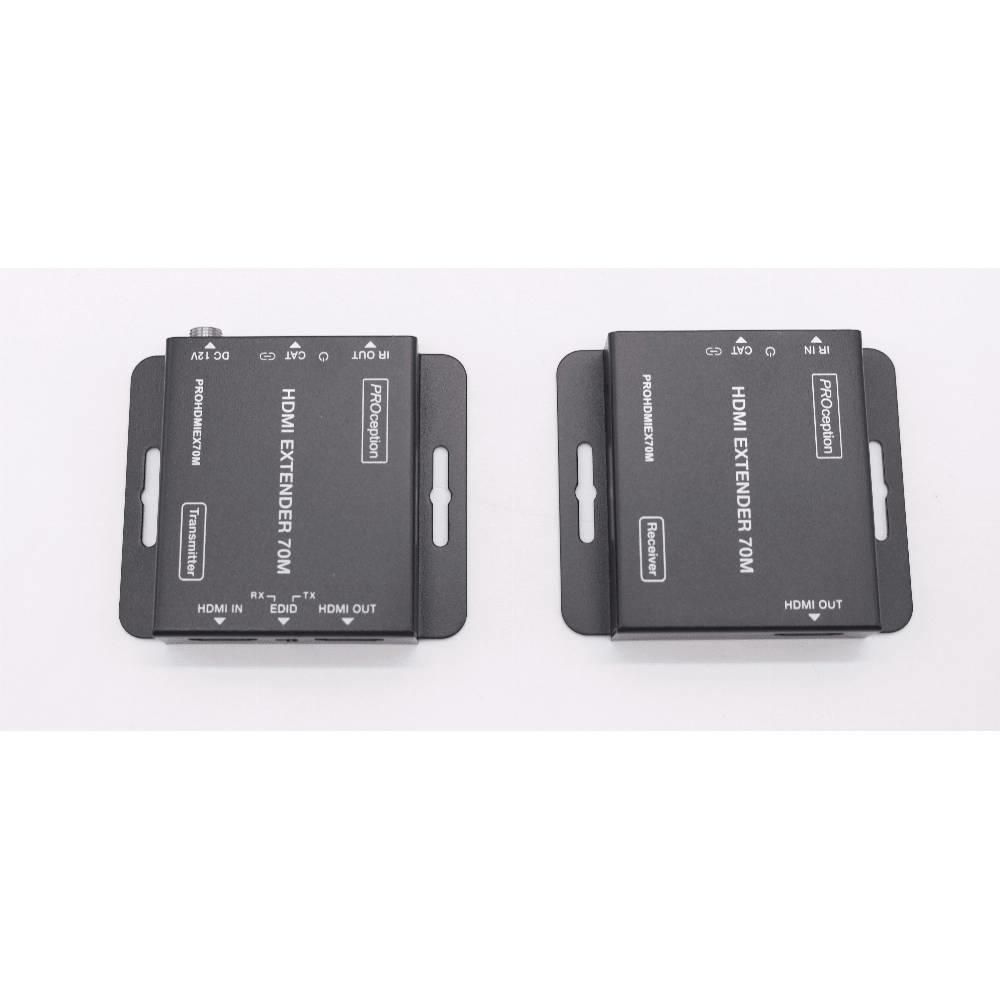

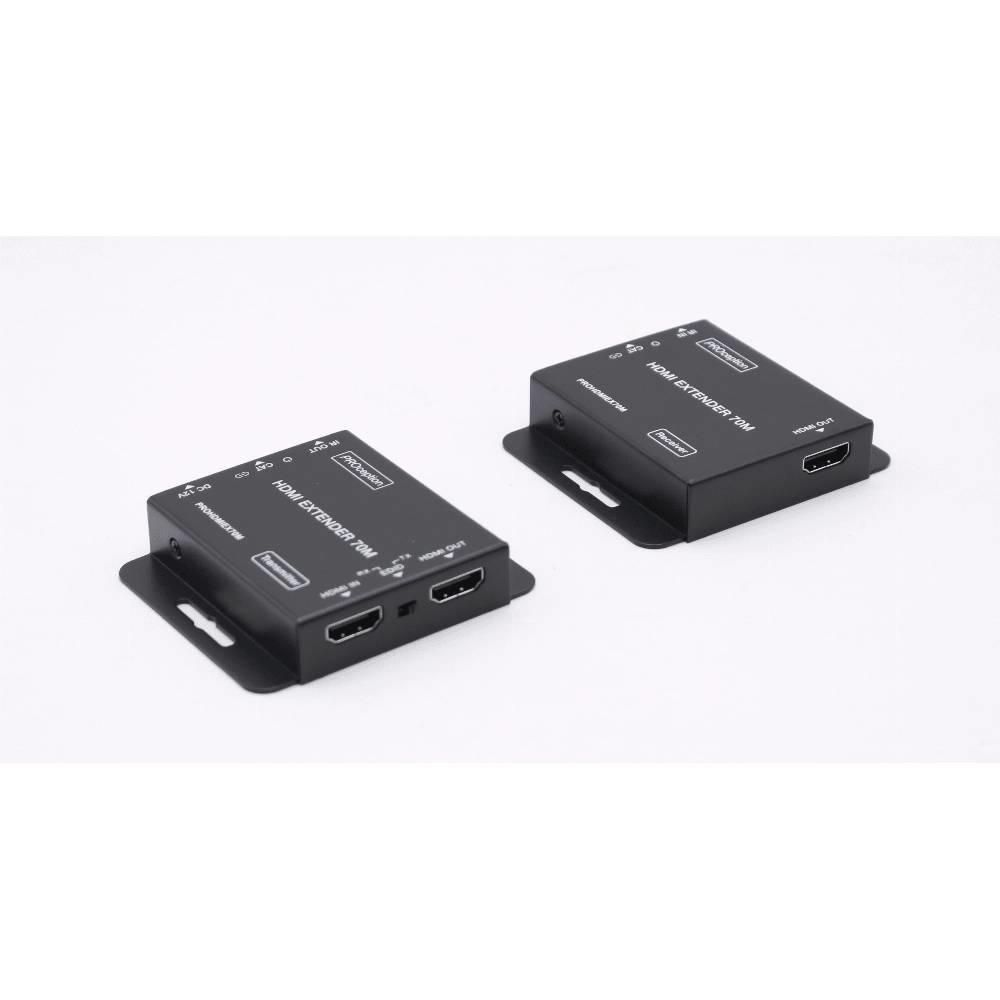

Kit contains:

  • 1 × HDMI Transmitter
  • 1 × HDMI Receiver
  • 1 × IR Blaster Cable (1.5 meters)
  • 1 × IR Receiver Cable (1.5 meters)
  • 1 × 12V/1A DC Power Adapter
  • 1 × User Manual

HDMI over CAT6 Extender


PDFSpec Sheet
