Q Acoustics E120 Audio System

Q Acoustics United Kingdom

Q Acoustics E120 Audio System

 E120 In Wall key features include:

  • Easy wall-mounting installation in any room in a home or garden space.
  • Zero clutter design – pair with two or four Q Acoustics ceiling or wall speakers.
  • High-quality built-in class D stereo amplifier serving up 2 x 25W of power.
  • IP54-rating makes it suitable for kitchen, bathroom and garden installations.
  • Features Bluetooth 5.0 for wireless streaming of music from compatible devices.
  • Built-in DAB+ and FM radio with one-touch pre-sets.
  • Touch-sensitive facia control, both splashproof and full-size remote controls supplied.
  • 3.2-inch colour display.
  • Boasts digital and analogue inputs for connection of audio sources such as TV audio.
  • Audio output suitable for a subwoofer.

Free P&P on this product

**In Store Demo Available**

Trade log in

  • Add 1 x Pair of Qi65CB in-ceiling speakers
  • Add 1 x Pair of QI65c - Professional In-Ceiling Speaker

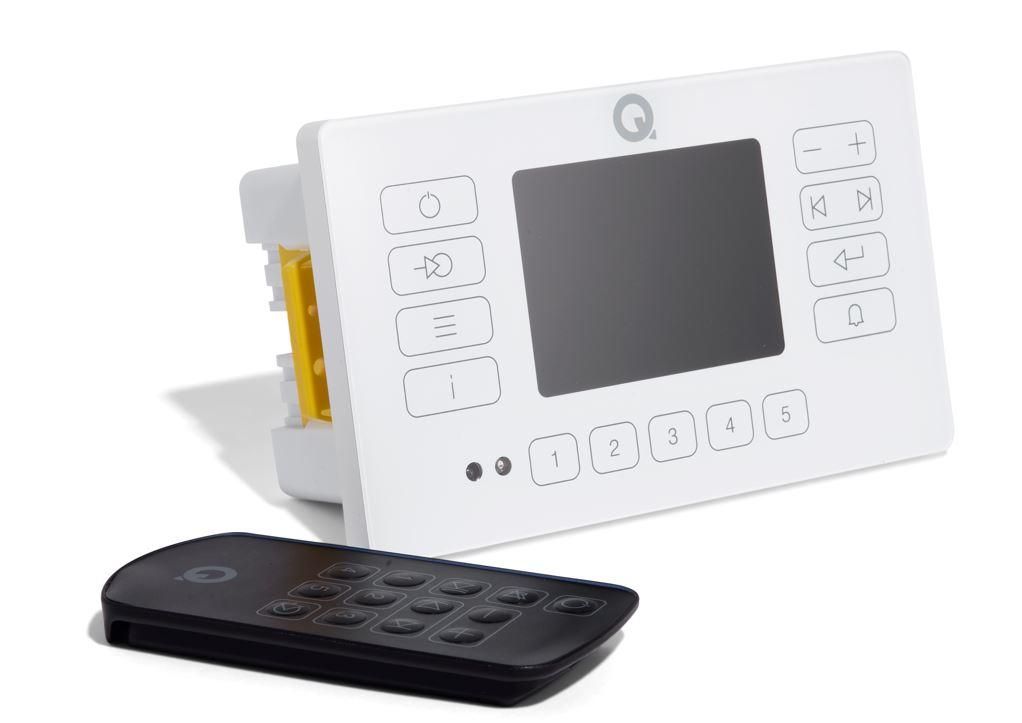

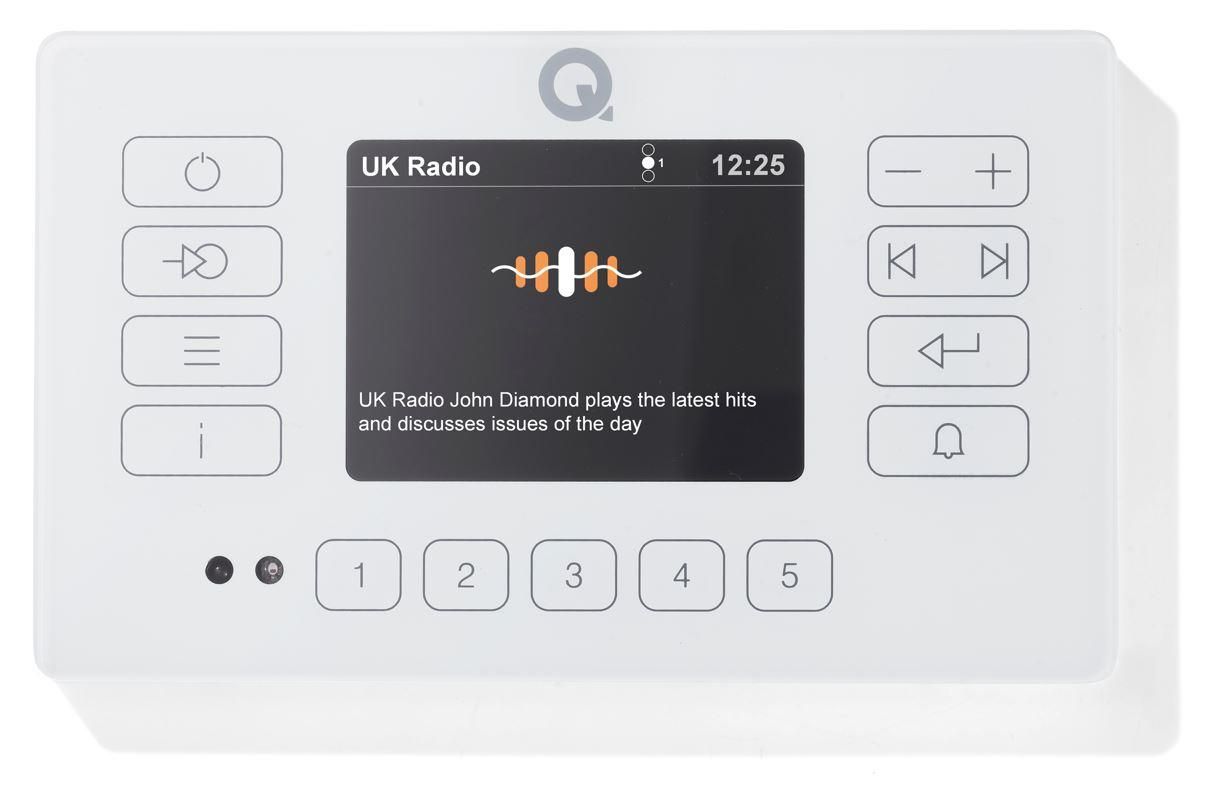

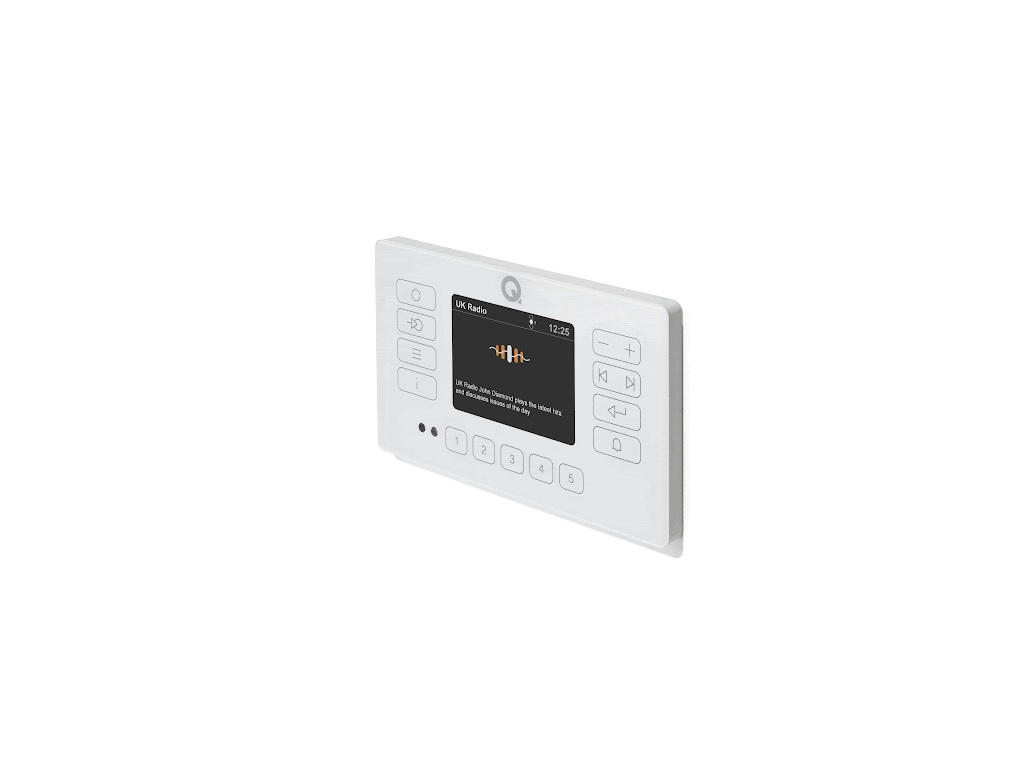

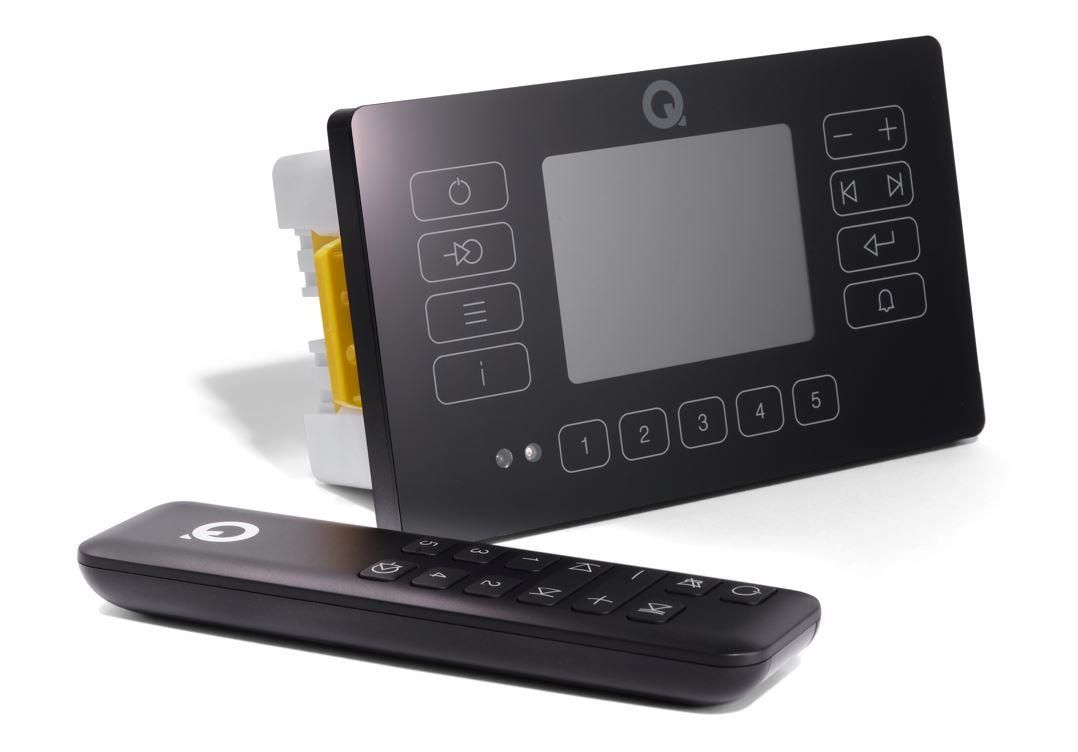

Q Acoustics E120 audio system

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Wireless streaming and radio

Once installed into the living space wall (all cabling is supplied) and connected to chosen speakers, users can wirelessly stream music from popular music services, via Bluetooth, from compatible devices such as smartphones, tablets, laptops and DAPs. Support for Bluetooth 5.0 provides a greater range and a more stable wireless connection when streaming. Radio fans can enjoy broadcasts over DAB+ or FM with up to five presents configurable to access favorite stations with a single button touch.

Enhance the sound on your TV

With digital and analogue connections on hand, the E120 enables connection to a TV to enhance the audio, delivering a more immersive and dynamic television and movie-watching experience. In addition, a rear analogue audio output can be configured to plug into a subwoofer for extra low-end bass sounds, an external power amplifier or even another E120 system.

Suitable for kitchens and bathrooms

Boasting an IP54-rating enables the system to be installed in bathrooms, kitchens and garden verandas where humidity and the ingress of water is possible. Using the supplied splash-proof remote control (or control via the app/device they are using), homeowners can listen to their favorite music and radio stations while relaxing in the bath or preparing an evening meal.


Technical specifications

Audio Sources: DAB / DAB+ / FM with RDS

Bluetooth: Version 5.0, A2DP

Analogue input:

  • Type: 3.5mm stereo
  • Sensitivity: 350mV
  • Max level: 1.5V
  • Impedance: 10k ohm

Optical input:

  • Type: mini TOSLINK
  • Resolution: 16bit 48kHz

Speaker outputs: Left & right, stereo or dual mono

Analogue output:

  • Type: 3.5mm stereo
  • Modes: Fixed or variable
  • Max level: 670mV


  • Type: Class D
  • Continuous power: 2 x 25W @ 6ohm
  • THD: 0.07% @ 1W / 0.2% @ rated power
  • SNR: >75dB @ Rated power
  • Frequency response: 20Hz - 20kHz +/- 1dB

IP ratings:

  • E120 wall panel: IP54
  • Splash proof remote: IP67


  • Touch sensitive buttons
  • Infra-red remote control
  • Bluetooth AVRCP v1.6: Play, pause, skip, track, artist, album name

Menu languages:

English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish

Alarms: x2 once, daily, weekdays, weekends

Power supply:

  • Input: 100 - 240V AC 50/60 Hz
  • Output : 22V DC 1.5amps
  • Dimensions (HxWxD): 30mm x 50mm x 115mm

Power consumption:

  • Typical: 10W
  • Standby: <1W
    • Deep standby: <0.5W
  • Wall panel

    • Net weight: 0.251kg
    • Dimensions (HxWxD): 91mm x 151mm x 33mm
  • Speaker cable supplied:

    • Gauge   19 AWG
    • Lengths: 2 x 7m
  • Power cable supplied:

    • Gauge: 16 AWG
    • Lengths: 5m
    • Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female
