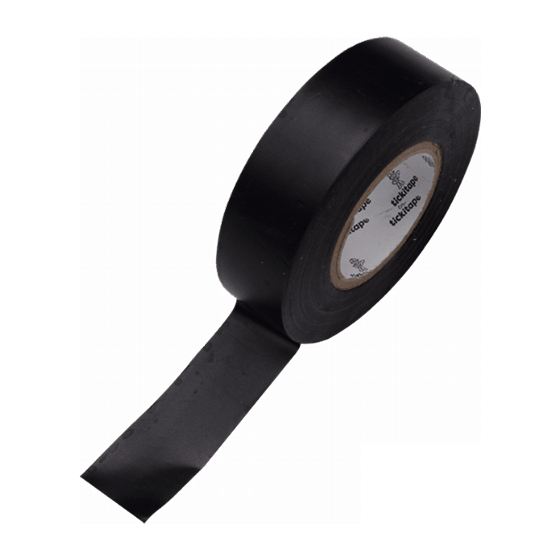

Tickitape PVC Insulation Tape

Name: Tickitape PVC Insulation Tape
Brand: Tickitape
SKU: TAPEB
Price: 2.148 GBP
Availability: InStock

PVC tape has very good electrical properties, tough & flexible

Tickitape PVC Insulation Tape used in electrical installations to provide insulation and protection to electrical wires and cables.

It is made of a soft, pliable PVC material that can conform to irregular surfaces, making it ideal for use on cables and wires.

Flame retardant falls into the self-extinguishing category, it is also compliant with RoHS.

19mm x 33mm

Trade log in

£0.00

£2.15

Tickitape PVC Insulation Tape is typically used to insulate and protect wires and cables like RG6 OR CT100 from exposure to moisture, dust, and other elements that can cause damage or short circuits.

It is also used to bundle wires and cables together for organisation and to mark or identify individual wires and cables.

Tickitape PVC Electrical Insulation Tape is known for its high level of adhesion and can be applied to a variety of surfaces, including metal, plastic, and rubber. It is also resistant to abrasion, moisture, and UV radiation, which helps to ensure its long-lasting performance.

SPEC: Widths Available: 50, 75, 100mm
Standard Length: 33M
Core Size: 76mm core
Colour: Black,
Thickness: 130 µm (± 5%)
Backing Thickness: 115 µm (± 5%)
Adhesive Thickness: 15 µm (± 5%)
Adhesive Rubber, non-residue Adhesion: ≥ 1.6 N/cm
Tensile Strength: ≥ 22 N/cm Elongation: ≥ 180%
Flammability Passed (UL510 test method)
Voltage breakdown 7.5 KV
Application Temperature 0 – 50 °C
Heat Resistance - 12 to 80 °C/min
Shelf Life 12 months
STORAGE Normal Room Temperature

USES: Wire and cable insulation, colour coding of electrical cables, loom harnessing, stopping off in plating, prevention of electrolytic corrosion, packaging applications, drum or tube sealing.

APPLICATION: Surfaces to be bonded must be clean, dry and free from dust.

If necessary, clean surfaces sparingly with a ketone-free proprietary solvent, allow to dry prior to tape application.
