Triax TV / SAT Combiner

110 - TV/SAT Combiner (Diecast)
Triax United Kingdom

Triax TV / SAT Combiner

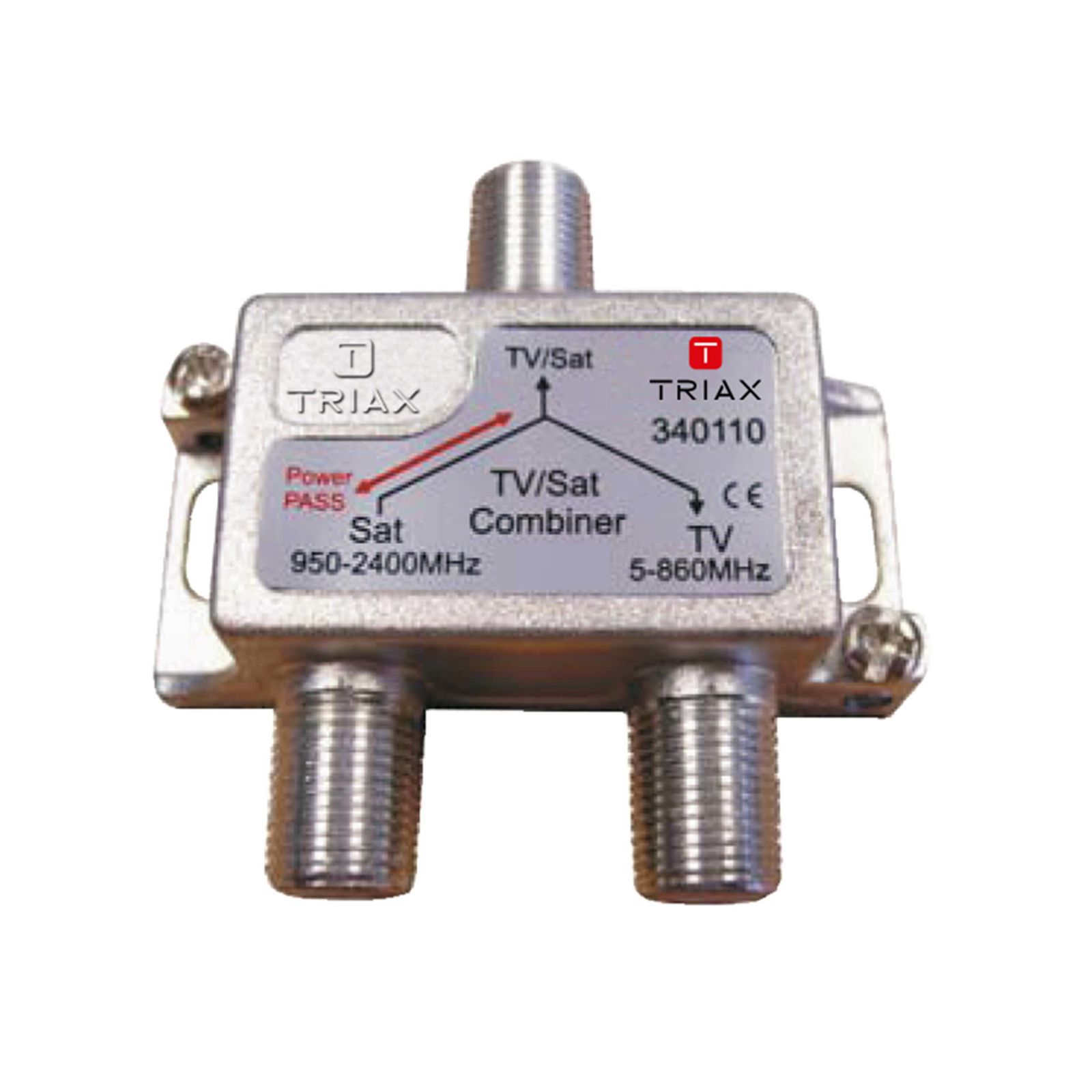

TV/SAT mast combiners with F-connector in time-saving housing.

The majority of our filters and combiners are in the same type of time-saving housing as our mast amplifiers.

  • Inputs for VHF/UHF and satellite
  • Combined output containing VHF/UHF/Sat
  • Power pass on satellite input
  • Robust, die-cast, fully screened housing
  • F-connectors
  • Frequency Range: VHF/UHF: 5-862MHz, Sat: 950-2400MHz
  • Insertion Loss: VHF/UHF: <2.5dB typical, Sat: 3.0dB typical
  • Power Pass: VHF/UHF: No, Sat: Yes
  • SKU :-340110
£0.00
£5.76
  • Add 3 x F Type Twist-on Connector with O-ring

QTY


110 - TV/SAT Combiner (Diecast)

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

TRIAX 110 is a TV/SAT combiner, which is a device used to combine television and satellite signals onto a single coaxial cable

This allows both signals to be transmitted over a single cable, which can be more convenient and cost-effective than running separate cables for each signal.

The TRIAX 110 combiner typically has one input for a satellite signal and one input for a terrestrial (TV) signal. The signals are combined inside the device and then output through a single coaxial cable, which can be connected to a TV or other receiving device.

TV/SAT combiners like the TRIAX 110 are commonly used in residential and commercial installations where both satellite and terrestrial signals need to be distributed to multiple rooms or devices. They can be used in conjunction with other signal distribution equipment, such as amplifiers or splitters, to further distribute the combined signal to additional devices.

ORDER INFORMATION

EAN Number

5702663401105

CHARACTERISTICS

Type

Combiner

FREQUENCY

Band

VHF / UHF / SAT

Input 1 – channels

IF

Input 1 – frequency

950...2400 MHz

Input 2 – frequency

5...860 MHz

LOSS

Input 1 - through loss

2.0/3.0 dB

Input 1 - Stop Band Attenuation

22/25 dB

Input 2 - through loss

2.0 dB

Input 2 - Stop Band Attenuation

20 dB

OPERATIONAL

DC Passthrough

Yes SAT

CONNECTORS

Number of inputs

2

Number of outputs

1

MECHANICAL

Product Height

38 mm

Product Width

75 mm

Product Depth

16 mm

Packaging Height

0,020 m

Packaging Width

0,060 m

Packaging Depth

0,050 m

Net Weight

0,045 kg

Tara Weight

0,006 kg

Total Weight

0,051 kg

Remarks

Diecast housing. DC through power to SAT input

PDFSpec Sheet
