TRIAX

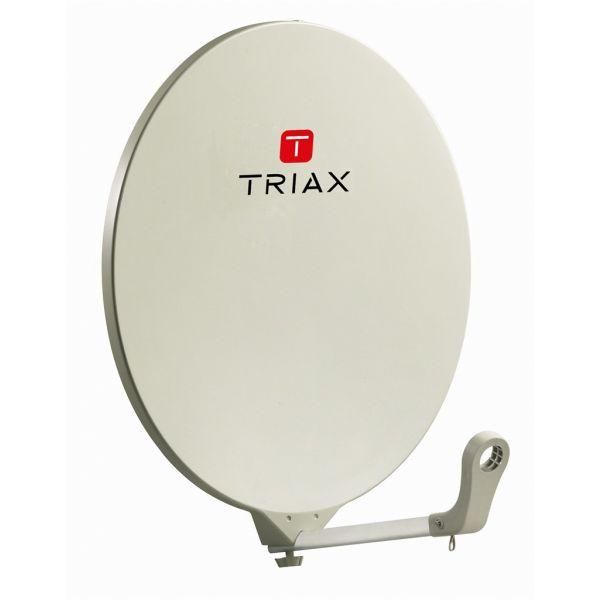

TRIAX 70cm Fibreglass Satellite Dish

TRIAX DAP 710 - RAL 1013 70cm Fibreglass Satellite Dish

TRIAX 70cm Fibreglass Satellite Dish

Fibreglass dishes are the preferred choice in some markets.

The most durable long-term solutions in difficult environments, for example in coastal areas or mountain regions.

Available in light grey and anthracite colour.

  • 70cm
  • RAL 1013
  • Cream
  • SPECIFICATIONS

    ORDER INFORMATION

    EAN Number3700113427912

    CHARACTERISTICS

    X-polarisation> 27 dB
    Offset angle26 °
    Elevation range10-55 °
    Efficiency70

    MECHANICAL

    Height (cm)72 cm
    LNB holderPlastic
    Mast bracket diameterØ 40-60 mm
    Reflector typeOffset
    Windload @42 m/s600 N
    Product Length625 mm
    Packaging Height0.001 m
    Packaging Width0.007 m
    Packaging Depth0.006 m
    Packaging Volume0.000 m3
    Net Weight4.940 kg
    Tara Weight0.000 kg
    Total Weight4.940 kg
    Remarks1 U-Bolt for mast mount 2nd U-Bolt P/N 362700

    FREQUENCY

    Frequency range10.7 - 12.75 GHz

    GAIN

    Gain @ 11.7 GHz36,5 dBi
    Gain @ 12.625 GHz37.3 dBi
    Noise temperature< 35 °K
  • EXTERNAL LINKS
VIDEO

SKUSKU: 362710
£126.00
£151.20
Inc VAT
Reward points:0

This item is currently out of stock. We’ll notify you when it’s back in stock if you enter your email address in the box below..
