Triax HTS 16 Way Splitter

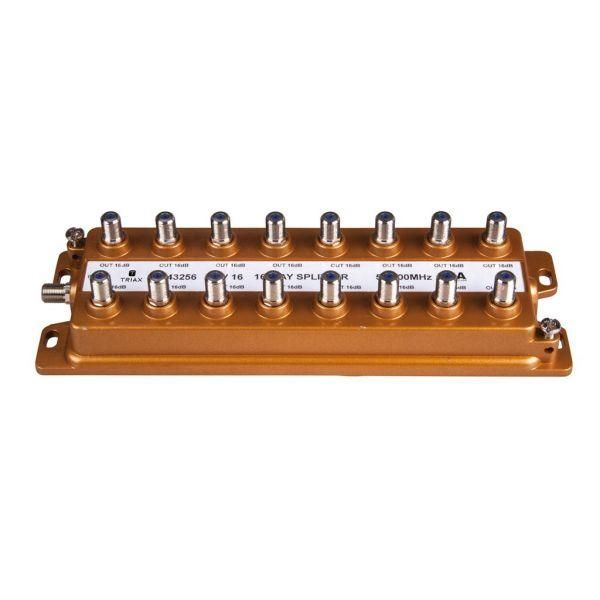

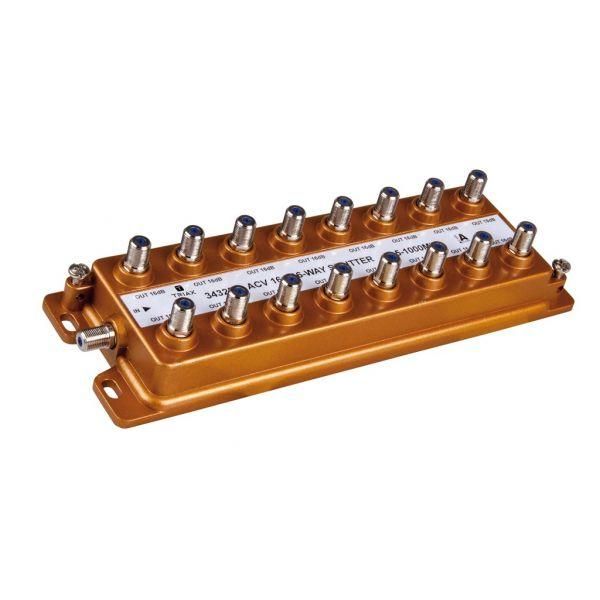

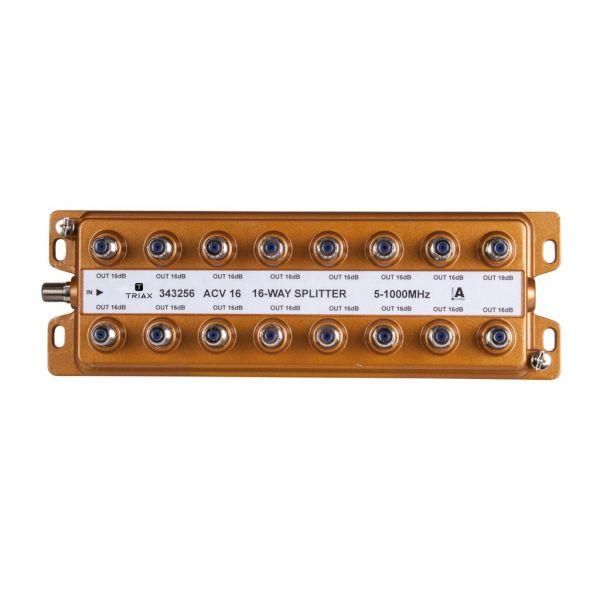

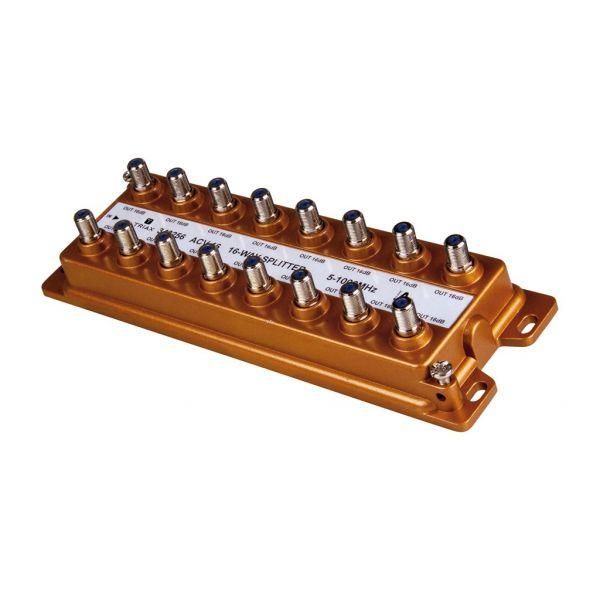

ACV 16 - 16 way splitter

Triax HTS 16 is a 16-way splitter designed for distributing television or radio signals to multiple devices such as TVs, set-top boxes, and audio equipment.

  • ACV 16-16 - 16 way splitter, one-sided connectors
  • TRIAX splitter all round performance for use in CATV, SMATV & MATV
  • Frequency range 5-1000 MHz
  • High shielding
  • Return loss Grade 2
  • High quality die cast housing Sn coated.
  • All ports AC/DC blocked at inner conductor.
  • Acc. to EN 50083-2 & EN 60728-4

SKU 343256

Trade log in

£0.00
£35.28

QTY


triax 343256 16 way splitter

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Commonly used in commercial or residential settings where there is a need to distribute a single signal source to multiple devices.

The Triax HTS 16 splitter features a compact and durable design, with a frequency range of 5-1000 MHz. It is compatible with both analogue and digital signals, and its high isolation between the outputs ensures minimal signal loss and interference.

The splitter also features F-type connectors, which provide a secure and reliable connection.

ORDER INFORMATION

EAN Number

5702663479166

SHIELDING

Shielding efficiency VHF/UHF

> 110.0 dB

FREQUENCY

Frequency range

5...1000 MHz

LOSS

Insertion loss (in-out) 5-40 Mhz

< 14.5 dB

Insertion loss (in-out) 40-470 MHz

< 14.5 dB

Insertion loss (in-out) 470-860 MHz

< 16.0 dB

Insertion loss (in-out) 860-1000 MHz

< 16.0 dB

ISOLATION

Isolation (tap-tap) 5-40 MHz

> 26.0 dB

Isolation (tap-tap) 40-470 MHz

> 26.0 dB

Isolation (tap-tap) 470-860 MHz

> 23.0 dB

Isolation (tap-tap) 860-1000 MHz

> 23.0 dB

RETURN LOSS

Return loss (in-out) 5-40 MHz

> 17.0 / > 17.0 dB

Return loss (in-out) 40-470 MHz

> 20.0 / > 20.0 dB

Return loss (in-out) 470-860 MHz

> 17.0 / > 17.0 dB

Return loss (in-out) 860-1000 MHz

> 17.0 / > 17.0 dB

ELECTRICAL

Impedance

75 Ω

OPERATIONAL

DC Passthrough

NO

CONNECTORS

Number of outputs

16

MECHANICAL

Product Height

78 mm

Product Width

242 mm

Product Depth

44 mm

Packaging Height

0,050 m

Packaging Width

0,080 m

Packaging Depth

0,240 m

Packaging Volume

0,001 m3

Net Weight

0,300 kg

Total Weight

0,300 kg

PDFSpec Sheet
