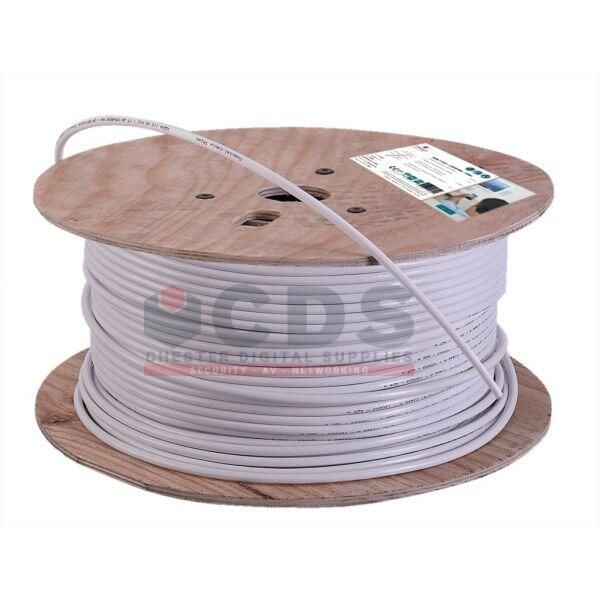

TRIAX KOKA 110 A+ Cable - LSZH white

Class Cca CPR EN50575 Compliant, CAI approved - 250m reel


TRIAX flagship CAI certified, Class Cca, cable is designed for indoor applications and has been independently tested and certified as ‘limited contribution to a fire’.

Meeting the standards of today and the network demands of tomorrow, this triple shielded class A+ coaxial cable delivers high quality TV signals with low LTE interference.

With superior build quality, this is the right choice for demanding installations requiring crystal clear images and safety in case of fire, for example, public and high rise buildings.


Class Cca -S1a,d1,a1  - CPR EN50575 Compliant – Suitable for indoor application

LSZH (Low Smoke Zero Halogen) sheath with limited contribution to a fire

CAI approved - cert. CAI 0150C

Class A+ (EN 50117-2-4) & PE cable (EN 50117-2-5)

Superior build quality and materials

High performance even over long distances

LTE protected – tinned copper braid & two layers foils protect signals

LSZH (Low Smoke Zero Halogen) jacket is ideal where fire resistance is a requirement.



£0.00
£203.46

QTY


Triax KOKA 110 Cable: CAI Benchmarked (151622)

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

ORDER INFORMATION

EAN Number      5702661516221

MECHANICAL

Cable length       250 m

Colour   White

Packaging Height              0.150 m

Packaging Width               0.360 m

Packaging Depth               0.360 m

Packaging Volume            0.019 m3

Net Weight         13.200 kg

Tara Weight        0.000 kg

Total Weight       13.200 kg

CONSTRUCTION

Inner conductor - material            Cu

Inner conductor - dimension       1.02 ± 0.01 mm

Dielectric - material         Foam PE

Dielectric - dimension     4.6(+0.2-0.3) mm

1. Shield foil – material   Alu/PET copolymer bonded

1. Shield foil - overlap     20 %

2. Shield braid - material                CuSn

2. Shield braid - coverage              60 %

3. Shield foil – material   Alu/PET

Jacket - material                LSZH

Jacket – dimension          6.8 ± 0.1 mm

OPERATIONAL

Application         Indoor

Fire Class             EN 50575 (Cca)

Fire SubClass      S1a,d1,a1

DoP number       TR0012

Notified Body     2479

Screening Efficiency         EN50117 (Class A+)

TRANSFER IMPEDANCE

Transfer Impedance @ 5-30 MHz               < 2.5 mΩ/m

SHIELDING

Screening attenuation @ 30-1000 MHz  ≥ 106 dB

Screening attenuation @ 1000-2000 MHz             ≥ 90 dB

Screening attenuation @ 2000-3000 MHz             ≥ 80 dB

ELECTRICAL

Impedance          75 ± 3 Ω

Capacity               53 ± 2 pF/m

Velocity ratio      83 ± 1 %

Inner DC resistance          < 20.4 Ω/km

Outer DC resistance         < 11.7 Ω/km

LOSS

Attenuation (20°C/100mtr) @ 5 MHz       1.3 dB

Attenuation (20°C/100mtr) @ 200 MHz  8.5 dB

Attenuation (20°C/100mtr) @ 470 MHz  13.5 dB

Attenuation (20°C/100mtr) @ 862 MHz  18.8 dB

Attenuation (20°C/100mtr) @ 1000 MHz               19.8 dB

Attenuation (20°C/100mtr) @ 2400 MHz               32.5 dB

RETURN LOSS

Structural return loss @ 5-470 MHz         ≥ 25 dB

Structural return loss @ 470-1000 MHz  ≥ 23 dB

Structural return loss @ 1000-2400 MHz               ≥ 19 dB
