RG6 coax cable is a type of coaxial cable that is commonly used for a variety of applications, including television, internet, and telephone service. Typically secured to the wall using 7mm brown round cable clips and is designed to carry high-frequency signals with low signal loss and interference, making it an ideal choice for transmitting high-quality video, audio, and data signals over long distances.

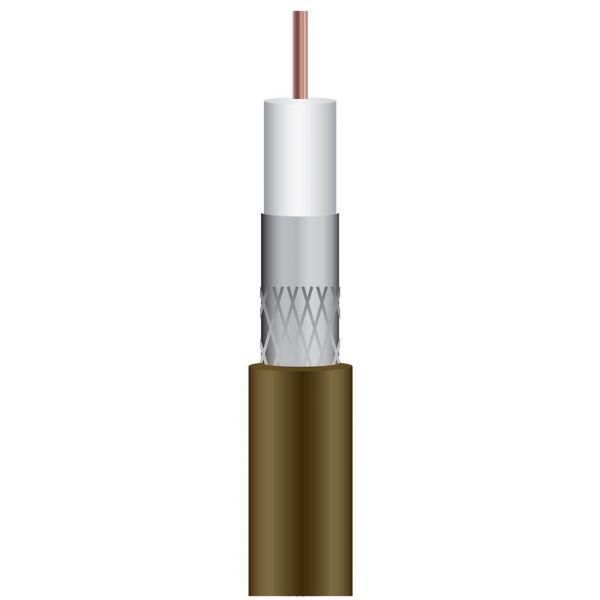

The "RG" in RG6 stands for "Radio Guide" and the "6" refers to the specific type of cable. RG6 cable is constructed with a central copper conductor, which is surrounded by a dielectric insulating material and a braided copper shield. The copper shield helps to prevent signal interference, while the dielectric material helps to maintain the cable's impedance and prevent signal loss.
One of the key benefits of RG6 coax cable is its low signal loss and interference. This means that it can transmit high-quality signals over long distances without degradation, making it an ideal choice for use in professional applications. It is also a popular choice for residential use in home entertainment systems, as it provides excellent signal quality for high-definition video and audio.
RG6 cable is available in a variety of lengths, making it easy to customize for specific applications. outdoor cable featuring a durable UV-resistant jacket that can withstand harsh weather conditions.
In summary, RG6 coax cable is a versatile and high-quality cable that is widely used in a variety of applications. Its low signal loss and interference, combined with its durability and availability in a variety of lengths, making it an excellent choice for transmitting high-quality signals over long distances.
MECHANICAL
Cable length | 100 m |
Minimum bending radius - single/repeated | 27.4 / 75.5 mm |
Colour | Brown |
Remarks | 100m, Card Reel |
CONSTRUCTION
Inner conductor - material | CCS |
Inner conductor - dimension | 1.02 mm |
Dielectric - material | Foam PE |
Dielectric - dimension | 4.6 mm |
1. Shield foil – material | Alu/PET |
2. Shield braid - material | Alu |
2. Shield braid - coverage | 40 % |
Jacket - material | PVC |
Jacket – dimension | 6.50 mm |
OPERATIONAL
Application | Indoor |
Fire Class | EN 50575 (Fca) |
DoP number | TR0027 |
Screening Efficiency | EN50117 (Class B) |
SHIELDING
Screening attenuation @ 30-1000 MHz | > 75 dB |
ELECTRICAL
Impedance | 75 Ω |
Capacity | 52 pF/m |
Velocity ratio | < 82 % |
Inner DC resistance | < 102 Ω/km |
Outer DC resistance | < 60 Ω/km |
LOSS
Attenuation (20°C/100mtr) @ 5 MHz | 1.6 dB |
Attenuation (20°C/100mtr) @ 50 MHz | 4.6 dB |
Attenuation (20°C/100mtr) @ 100 MHz | 6.5 dB |
Attenuation (20°C/100mtr) @ 200 MHz | 9.5 dB |
Attenuation (20°C/100mtr) @ 470 MHz | 15.0 dB |
Attenuation (20°C/100mtr) @ 862 MHz | 19.5 dB |
Attenuation (20°C/100mtr) @ 1000 MHz | 21.5 dB |
Attenuation (20°C/100mtr) @ 1750 MHz | 29.0 dB |
Attenuation (20°C/100mtr) @ 2150 MHz | 32.5 dB |
Attenuation (20°C/100mtr) @ 3000 MHz | 39.0 dB |
RETURN LOSS
Structural return loss @ 5-470 MHz | 23 dB |
Structural return loss @ 470-862 MHz | 23 dB |
Structural return loss @ 470-1000 MHz | 23 dB |
Structural return loss @ 862-2400 MHz | > 20.0 dB |
Structural return loss @ 1000-2000 MHz | 18 dB |
