Ubiquiti UniFi Dream Machine All-in-One


Ubiquiti UniFi Dream Machine All-in-One

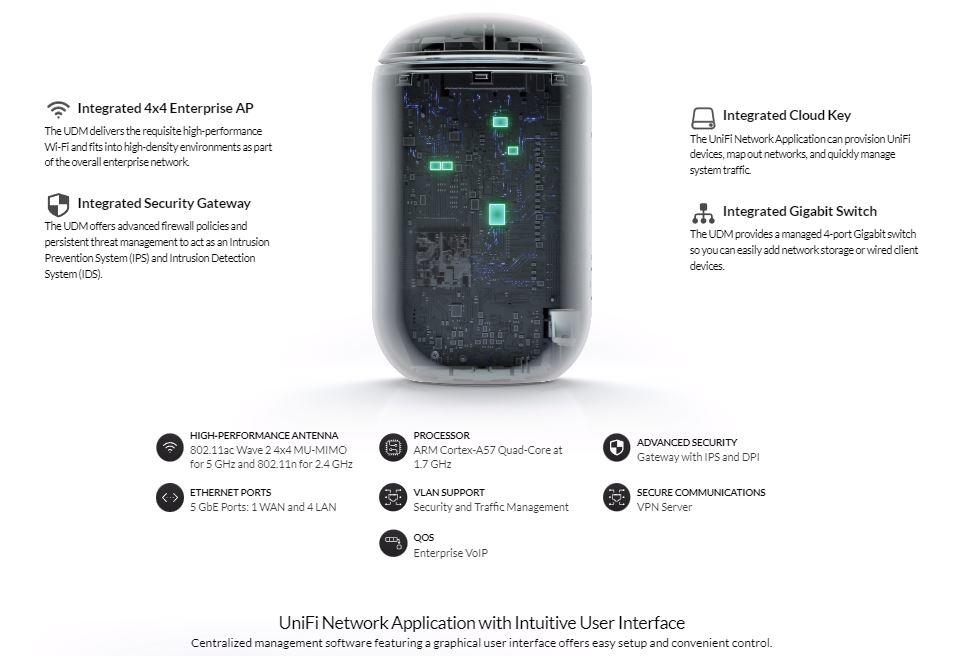

The Dream Machine (UDM) all in one, is an easy-to-use UniFi OS console with a built-in, high-performance WiFi access point.

Designed for the UniFi Network application, the UDM offers an intuitive platform for home and enterprise users to build and manage small-scale wired or WiFi networks, monitor device activity, and explore the world of UniFi.

Dual-band Wave 2 access point (802.11ac, 4x4)

Managed, 4-Port Gigabit switch

Advanced security gateway with internet threat management and deep packet inspection

Pre-installed UniFi Network application

Powered by a fast, 1.7 GHz quad-core processor

Allows you to easily scale your deployment by connecting additional UniFi devices


Ubiquity Dream Machine

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Key features of the Ubiquiti UniFi Dream Machine include:

Router: The UDM functions as a router, allowing you to connect your local network to the internet. It supports various WAN (Wide Area Network) connection types, such as Ethernet, DHCP, PPPoE, and static IP addressing.

Switch: The UDM has built-in switch capabilities, providing multiple Ethernet ports to connect wired devices. This allows you to create a local wired network for devices such as desktop computers, game consoles, or smart TVs.

Access Point: The UDM incorporates a high-performance 802.11ac Wi-Fi access point, offering wireless connectivity for your devices. It supports both the 2.4GHz and 5GHz bands and provides fast and reliable Wi-Fi coverage for your home or office.

Security Gateway: The UDM includes a security gateway, which provides firewall functionality to protect your network from unauthorized access and potential threats from the internet. It offers advanced features such as intrusion detection and prevention, deep packet inspection, and virtual private network (VPN) support.

UniFi Controller: The UDM integrates with the UniFi Controller software, which allows you to manage and monitor your entire UniFi network from a single interface. This software provides centralized control over network configuration, device management, user access controls, and advanced analytics.

Cloud Management: The UDM can be easily integrated into Ubiquiti's cloud-based management platform, UniFi Cloud Key. This enables you to access and manage your network remotely, monitor performance, and receive notifications about any network issues.

Scalability: The UniFi Dream Machine is designed to be scalable, allowing you to expand your network by adding additional UniFi devices, such as switches, access points, and security cameras. These devices can all be managed through the UniFi Controller software.


Dimensions        Ø 110 x 184.2 mm (Ø 4.33 x 7.25")

Weight 1.05 kg (2.32 lb)

Networking Interfaces   (4) LAN 10/100/1000 RJ45 Ports

(1) WAN 10/100/1000 RJ45 Port

Buttons Reset

IDS/IPS Throughput        850 Mbps

Processor            Arm Cortex-A57 Quad-Core at 1.7 GHz

System Memory               2 GB DDR RAM

On-Board Flash Storage 16 GB

Maximum Power Consumption 26W

Supported Voltage Range             100 - 240VAC

Power Method AC Power Cord

Power Supply    Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC)

Power Save        Supported

Beamforming    Supported

TX Power*

2.4 GHz // 5 GHz

23 dBm   26 dBm

Antenna              (1) Dual-Band, Quad-Polarity Antenna

Antenna Gain

2.4 GHz // 5 GHz

3 dBi      4.5 dBi

Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2

Wireless Security              WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

BSSID    Up to 8 per Radio

Operating Temperature -10 to 45° C (14 to 113° F)

Operating Humidity         5 to 95% Noncondensing

Certifications     CE, FCC, IC

PDFSpec Sheet
