Triax United Kingdom

Wolsey LTE 700 12 Way IR Pass

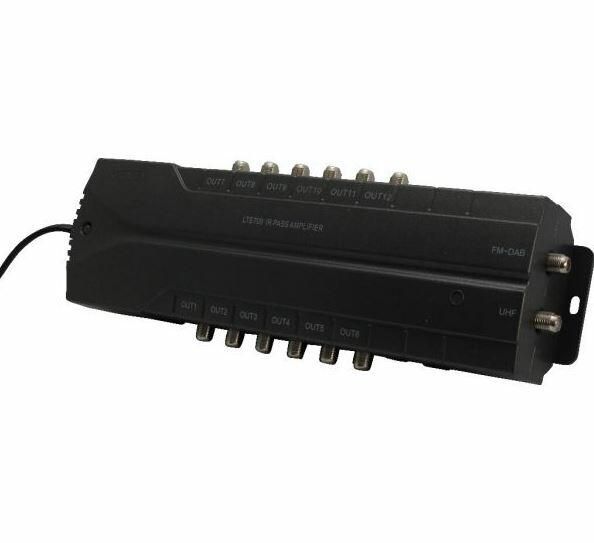

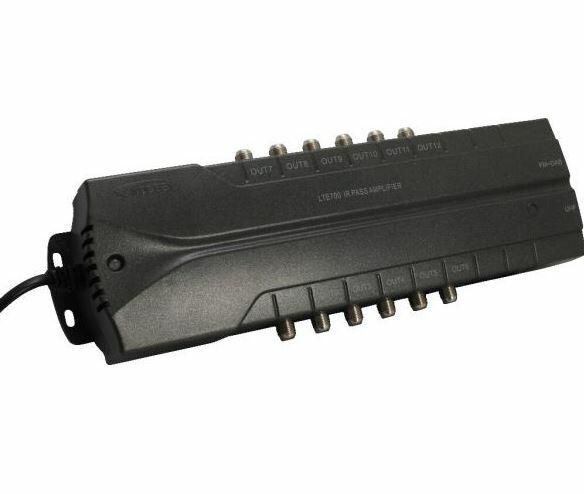

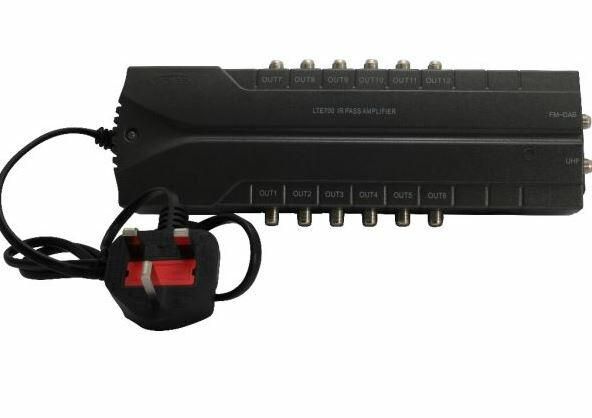

12 Way LTE700 protected IR Pass Distribution Amplifier

  • Distributes to multiple TV's around the home
  • Allows control of Sky Digital receivers when used with TRIAX Digital Links and MOD103T Modulator
  • 2 Input 12 Output
  • Short circuit protected in each output
  • Power on LED
  • Screened housing
  • F-Connectors
  • Easy to mount fixing
  • SKU :- 334095

Need extra coax cable ?

Trade log in

£0.00
£59.98
  • Add 14 x F Type Twist-on Connector

QTY


12 Way IR Pass Amplifier 334095

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Wolsey LTE 700 12 Way IR Pass Amplifier 334095 is signal amplifier designed for use with LTE (Long-Term Evolution) 700 MHz frequencies. This amplifier is capable of amplifying signals across 12 output ports, making it ideal for use in distributing signals to multiple devices or locations.

The "IR pass" feature of this amplifier means that it allows infrared (IR) signals to pass through it, which is important for applications where remote-control signals need to be transmitted along with the main signal.

The amplifier can be used in a variety of settings, including homes, businesses, and other locations where reliable signal distribution is required. It can also be used with a variety of different types of antennas, making it a flexible solution for many different use cases.

Overall, the LTE 700 12 Way IR Pass Amplifier 334095 is a powerful and versatile signal amplifier that can help improve signal quality and distribution in a variety of settings.

EAN Number                               5702663340954

CHARACTERISTICS

Max. Output level | dBµV            94.0 dBµV

FREQUENCY RANGE

Output frequency range | MHz : 85...694 MHz

Frequency range UHF | MHz     470...694 MHz

Frequency Range FM | MHz     87.5...108 MHz

Frequency Range DAB | MHz   217...230 MHz

Frequency range VHF | MHz    85...230 MHz

GAIN

Gain | dB                                   10 +/-2 dB

Noise figure | dB                       <5 dB

ELECTRICAL

Impedance | Ω                            75 Ω

OPERATIONAL

AC Supply voltage | VAC        230 ±10% / 50Hz VAC

CONNECTORS

Number of inputs                    2

Number of outputs                 12

MECHANICAL

Colour                                      RAL 7016 - Anthracite grey

Packing QTY                           1

Packaging Height | m              0.060 m

Packaging Width | m               0.310 m

Packaging Depth | m               0.145 m

Packaging Volume | m3           0.003 m3

Net Weight | kg                        0.690 kg

Tara Weight | kg                       0.210 kg

Total Weight | kg                      0.900 kg

Remarks                                  fully screened within plastic housing

PDFSpecifications
