Mercury 2183Y 0.5mm² PVC Round Flexible
3 Core Flexible PVC Cable (300/500V) – 0.75mm², 1.0mm² & 1.5mm²
Reliable, flexible and built for everyday electrical installations, this 3 core PVC flex cable is ideal for domestic, office and light commercial use. Manufactured with fine stranded Class 5 copper conductors, it offers excellent flexibility while maintaining strong current performance.
Available in black or white outer sheath.
Built for Performance
- 3 x Class 5 Stranded Copper Cores
- Brown (Live) | Blue (Neutral) | Green/Yellow (Earth)
- Durable PVC insulation & outer sheath
- Medium-duty application cable
- Easy to strip, terminate and route
Electrical Ratings
Voltage Rating: 300/500V
Current Capacity (In Air):
- 0.75mm² – 6A
- 1.0mm² – 10A
- 1.5mm² – 16A
Overall Diameter:
- 0.75mm² – 6.30mm
- 1.0mm² – 6.70mm
- 1.5mm² – 7.80mm
Mercury 2183Y 0.5mm² PVC Round Flexible PVC sheath. Suitable for the connection of electrical equipment and most light electrical applications.
BSI approved to BS6500, VDE approved.
SKU:
- White - 804.398UK
- Black - 804.401UK
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

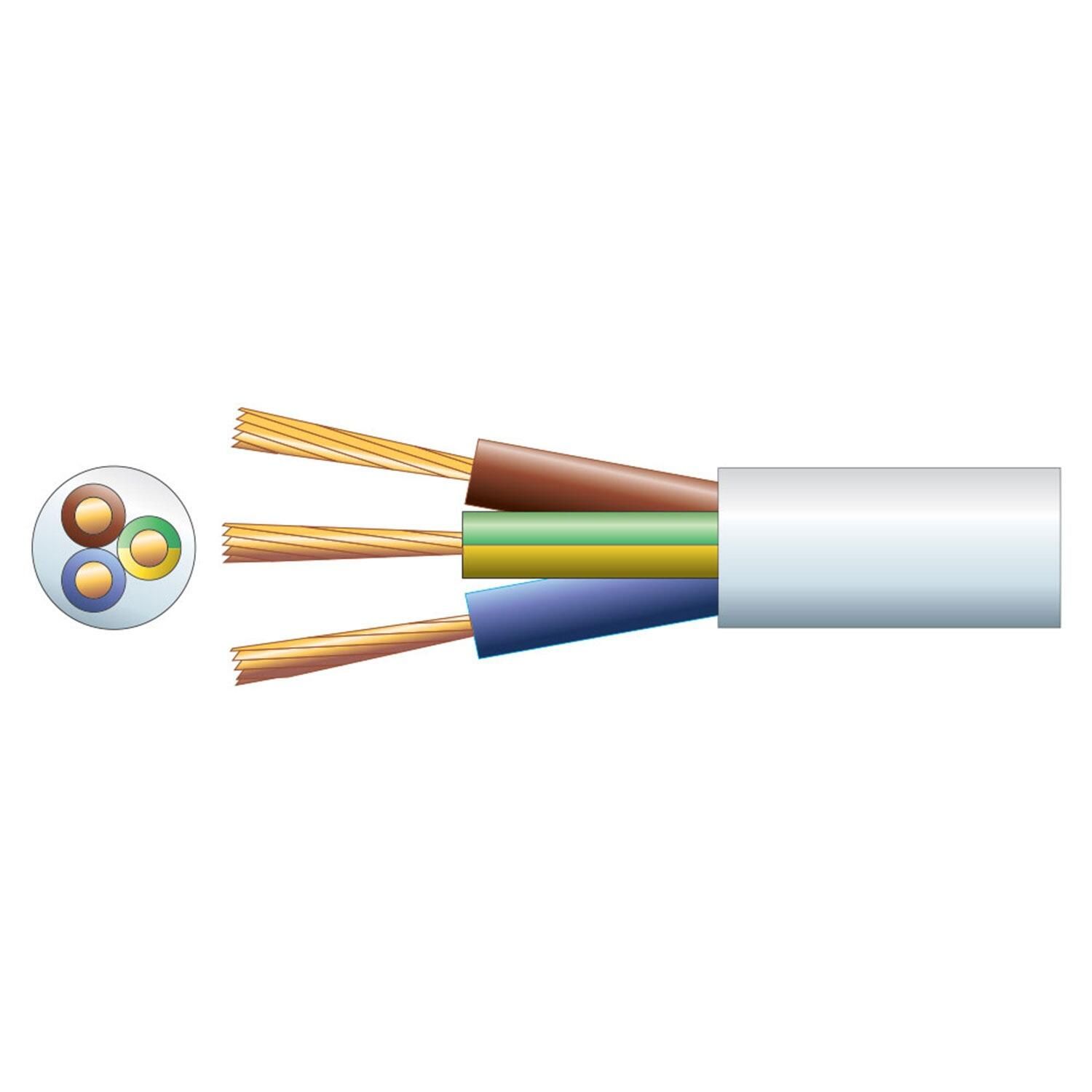

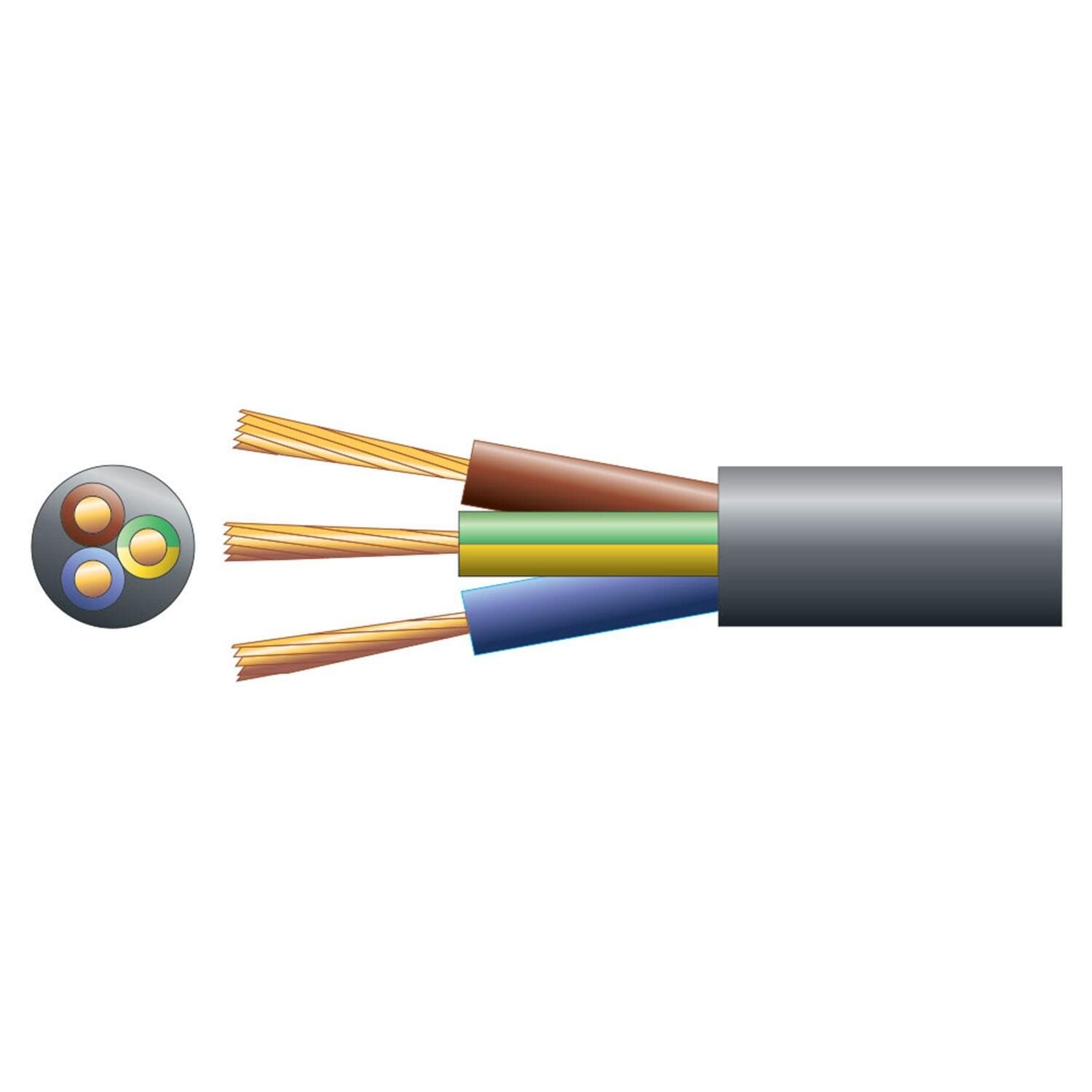

Cable Construction:
Three cores: The cable consists of three stranded copper cores.
Conductor: The cores are made of fine stranded copper (Class 5).
Insulation: Each core is individually insulated with PVC in colors: blue, brown, and green/yellow.
Overall Sheath:
The cable has a thick overall PVC sheath, making it suitable for medium-duty applications.
Available in black or white sheath colors.
Specifications:
- Voltage Rating: 300/500V.
- Current Capacity in Air:
- 0.75mm² core: 6A
- 1.0mm² core: 10A
- 1.5mm² core: 16A
- Overall Diameter:
- 0.75mm² core: 6.30mm
- 1.0mm² core: 6.70mm
- 1.5mm² core: 7.80mm
Application:
Ideal for interior installations where cable flexibility is required. Suitable for use in power tools, lawnmowers, extension cables, and fixed wiring.
Reel Lengths:
Available on 100-meter reels.
