Adastra BP4V Speaker
Indoor/outdoor speakers, with ABS enclosures and a sturdy metal grille.

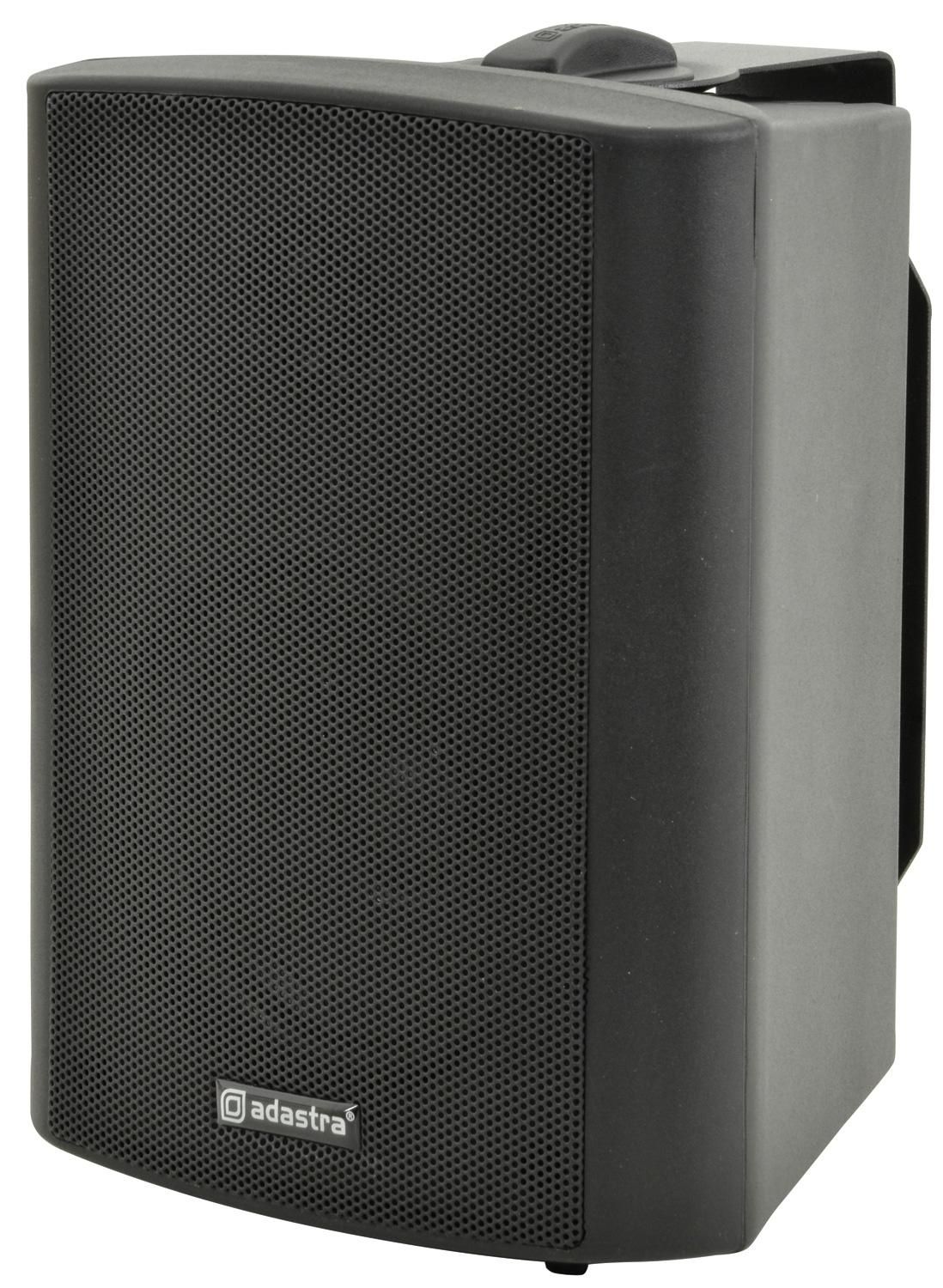

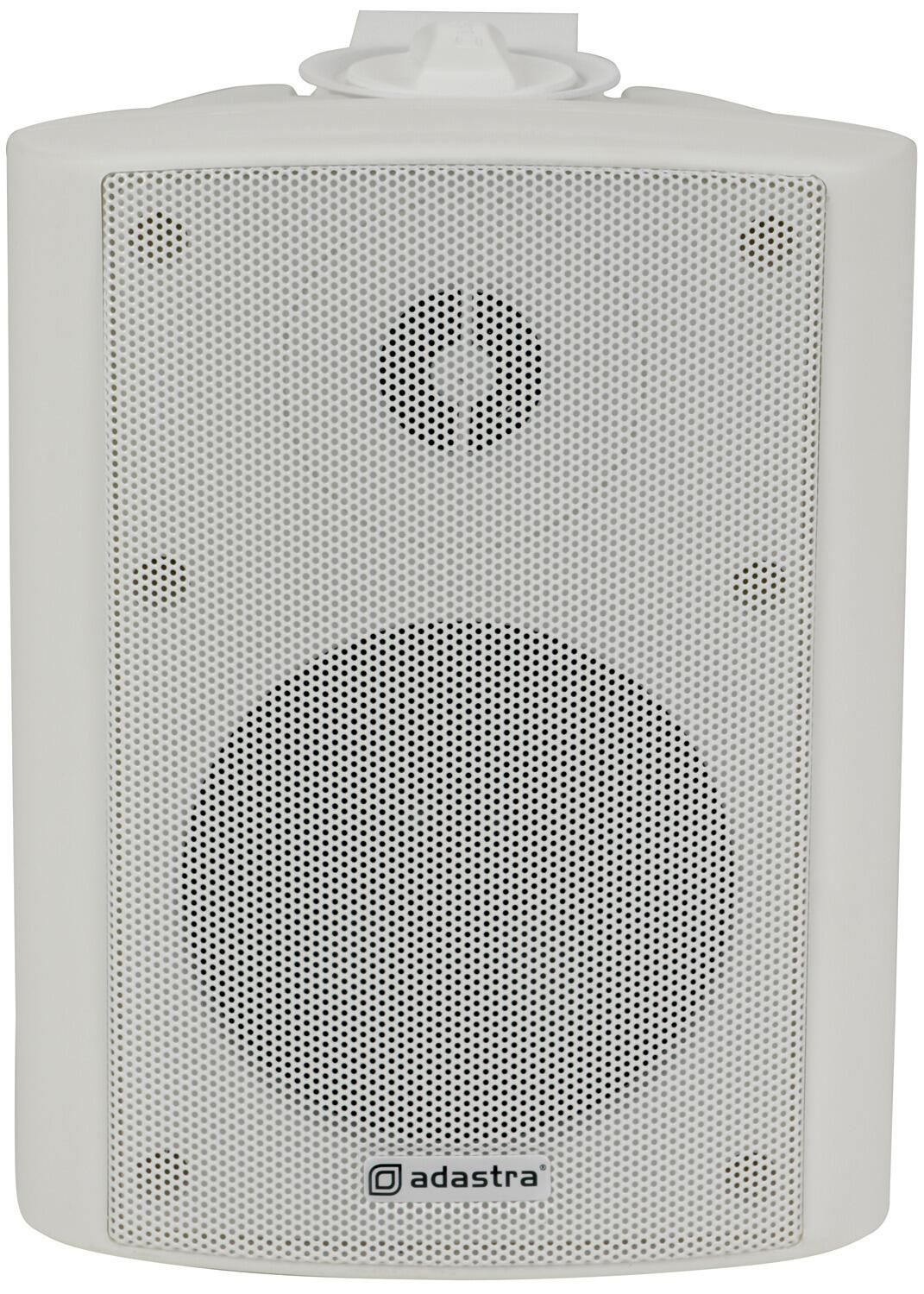

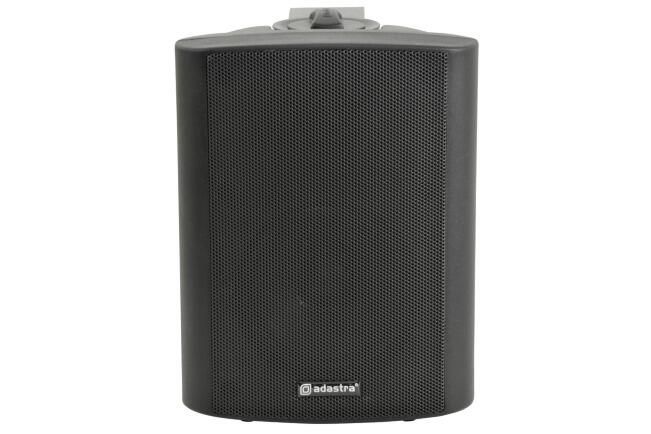

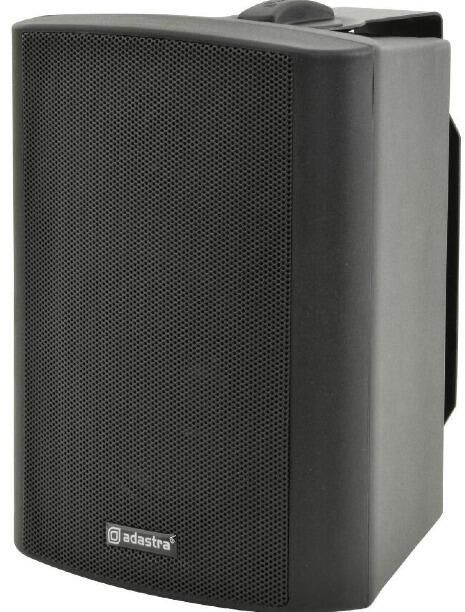

BP4V-B 100V 4" background speaker
Suitable for wall mounting via an adjustable fixing bracket.
The Adastra weatherproof speaker design makes these speakers ideal for outdoor music and public address applications.
- Water-resistant PP cone main driver

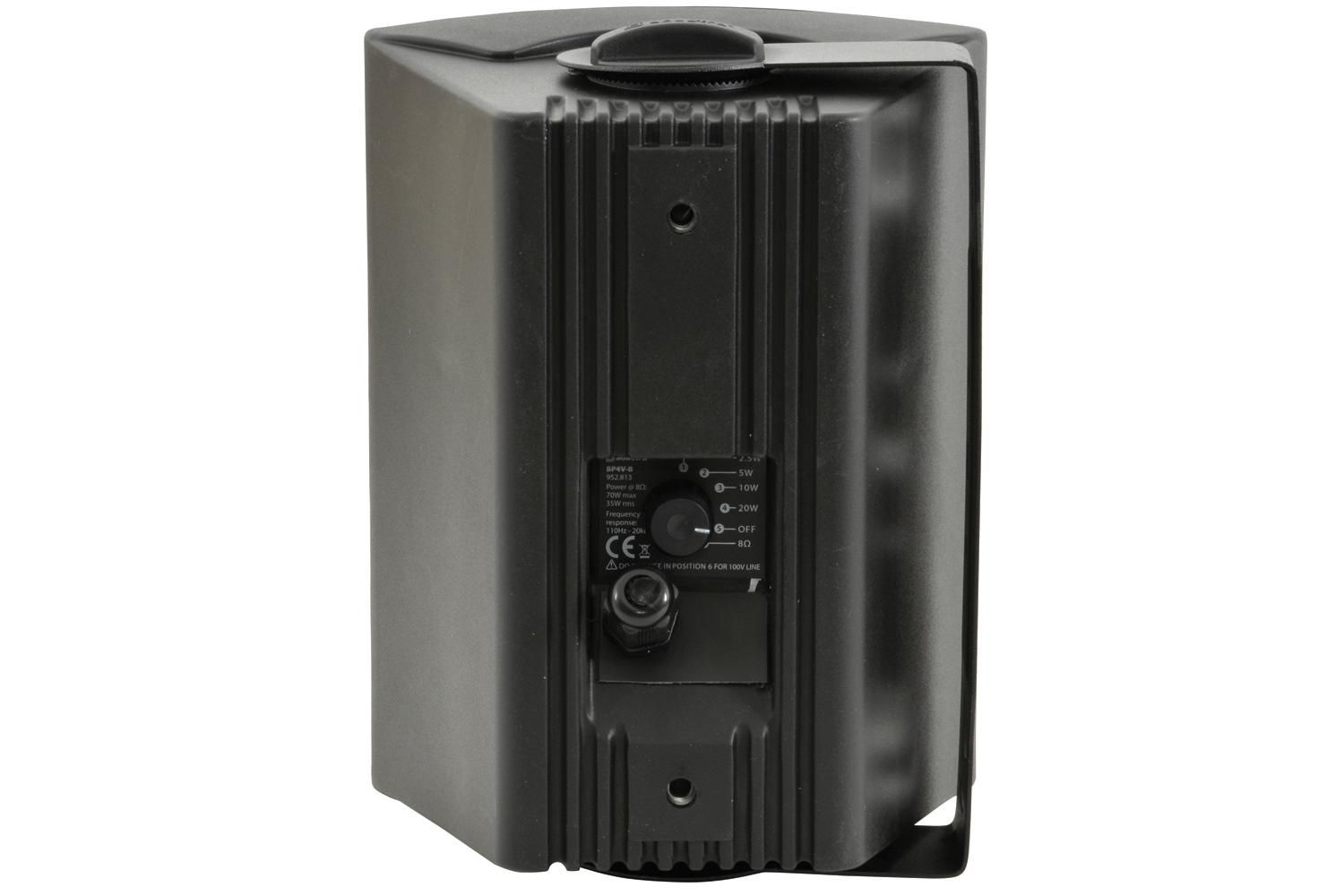

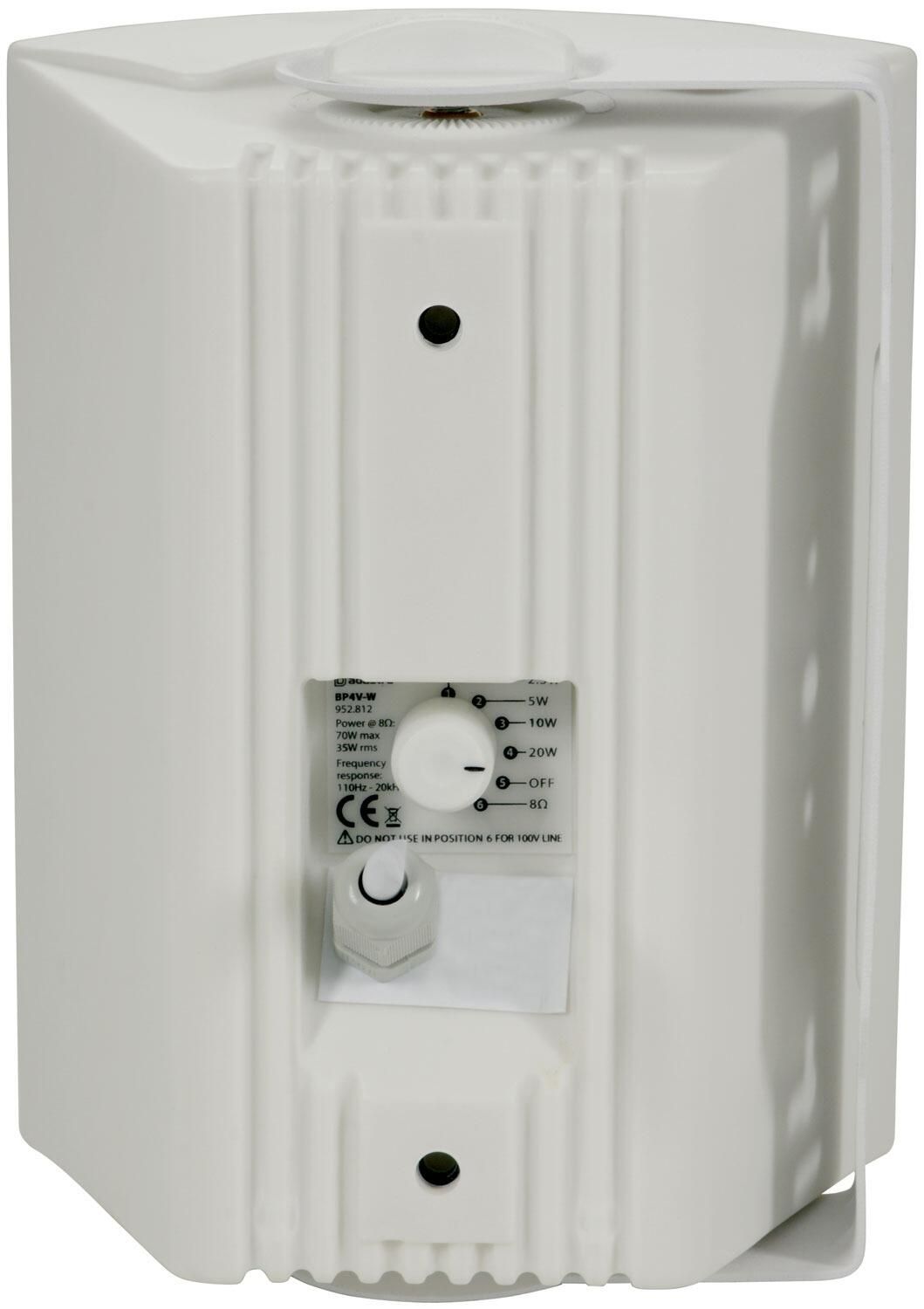

- Rotary selector switch for 100V line tapping's or 8 Ohms operation
- Wall mounting bracket supplied
- Alternative M6 threaded mounting points
- 1m hard-wired speaker cable connected
- Supplied single
- Black or White
- IP rating: IP54
- Operating temperature range: -5°C to +40°C
- Connection: 1m hard-wired speaker cable
SKU:-952.813UK ((Black))
SKU:-952.812uk ((White))
Share the love with your friend
Complete the form below and we'll email your friend about this product
You’ll earn 0 reward points with this purchase.
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Adastra BP4V-B 100V 4" background speaker
In black or white is a high-quality speaker designed for use in background music and paging applications. It features a 4-inch woofer and a 1-inch tweeter, providing clear and balanced audio reproduction across a wide frequency range.
The speaker is designed to operate on a 100V line system, which is a type of audio distribution system commonly used in commercial installations such as offices, retail stores, and public spaces. The 100V line system allows multiple speakers to be connected in parallel without the need for complex wiring, making it easy to install and configure a distributed audio system.
The Adastra BP4V-B speaker is also designed to be weather-resistant, making it suitable for use in indoor or outdoor environments. It features a moisture-resistant cone and a durable ABS enclosure, which helps to protect it from damage caused by humidity, rain, or exposure to the sun.
Other features of the speaker include a built-in transformer with multiple power taps, allowing it to be used in a range of applications with different power requirements. It also includes a built-in mounting bracket, making it easy to install the speaker on a wall or ceiling.
Overall, the Adastra BP4V-B 100V 4" background speaker in black is a versatile and reliable speaker that is well-suited for use in a range of commercial or industrial applications. Its high-quality audio reproduction, weather-resistant design, and ease of installation make it a popular choice for background music and paging systems in a variety of settings.
When used with a 100V line amplifier, select the required maximum wattage that the speaker should demand from the amplifier. Ensure that the sum of the wattages of all the speakers attached to the amplifier does not exceed the recommended output of the amplifier.
When used with a standard (non-100V) amplifier, select the “8Ω” setting and refer to the amplifier manufacturer’s manual to ensure that total speaker impedance (Ω) is not less than recommended for the amplifier.
The amplifier mustn't deliver more power than can be handled by the BCV speaker. Refer to the amplifier manual and specifications below to calculate this. Normally, it is recommended that the amplifier is capable of the RMS power rating of the speaker but cannot ever exceed the Max power rating.
