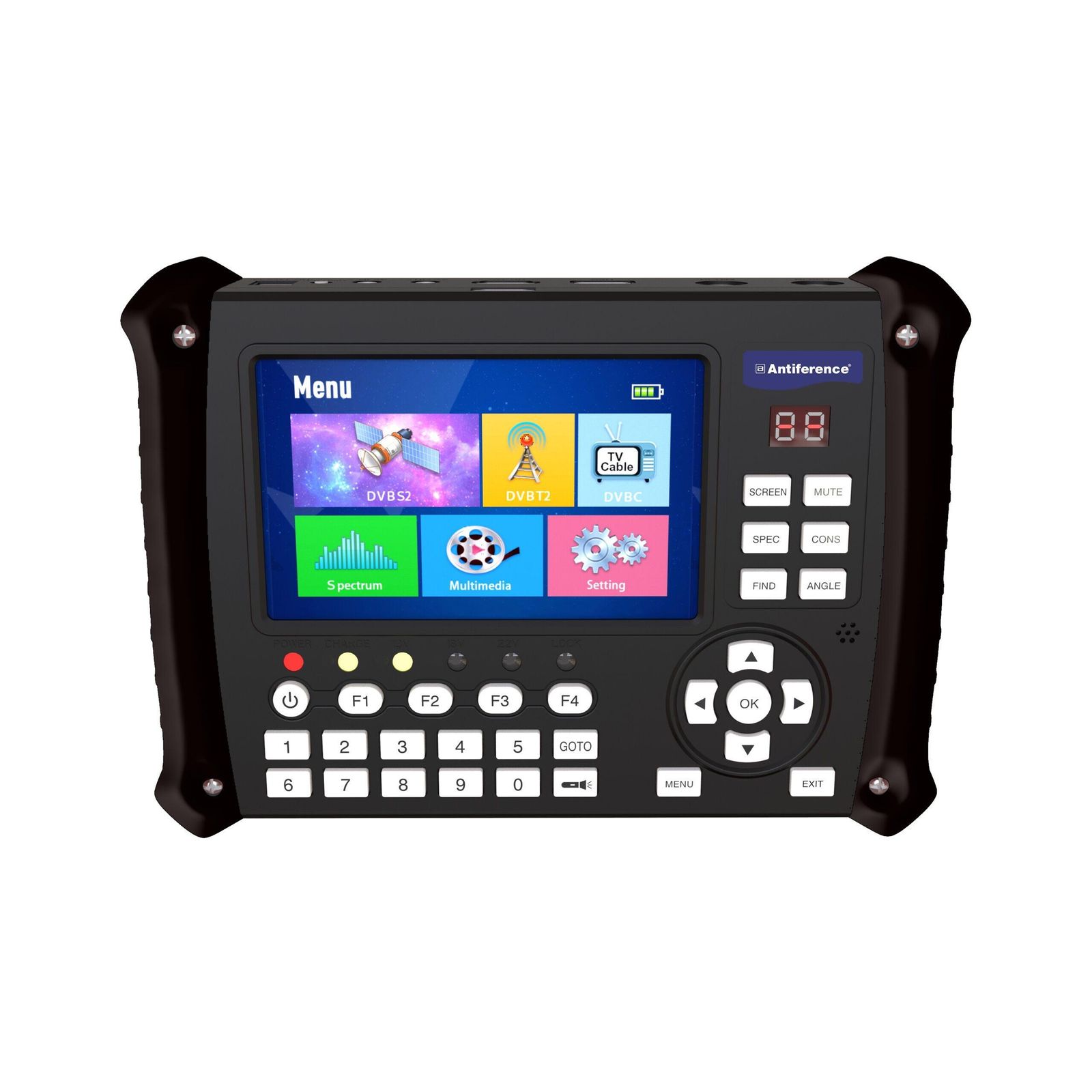

Antiference ASM03 Signal Meter

Digital Terrestrial & Satellite Meter

Antiference ASM03 Signal Meter is a device that is used to measure the strength and quality of a TV signal. It is typically used by technicians and installers to ensure that TV signals are properly aligned and optimised for maximum performance.

A simple-to-use and cost-effective signal strength meter. The ASM03 model replaces the ever-popular ASM01 with an improved operating system and additional features.

With the capability of analysing both satellite and terrestrial bands, this meter has everything you need for basic alignment and analysis and is ideal for the professional installer.

The spectrum analyser can operate on both bands showing various data readings such as MER, BER, C/N etc. Satellite channel plans are pre-installed but can be modified or altered when required.

The terrestrial band now features 12V line powering option on the input enabling powering of a masthead amp during installation.

Also now included are HDMI and AV inputs for use with monitoring onsite, useful with CCTV systems.

The unit is lightweight and compact with a large screen and a user-friendly OS.

Product Warranty Registration

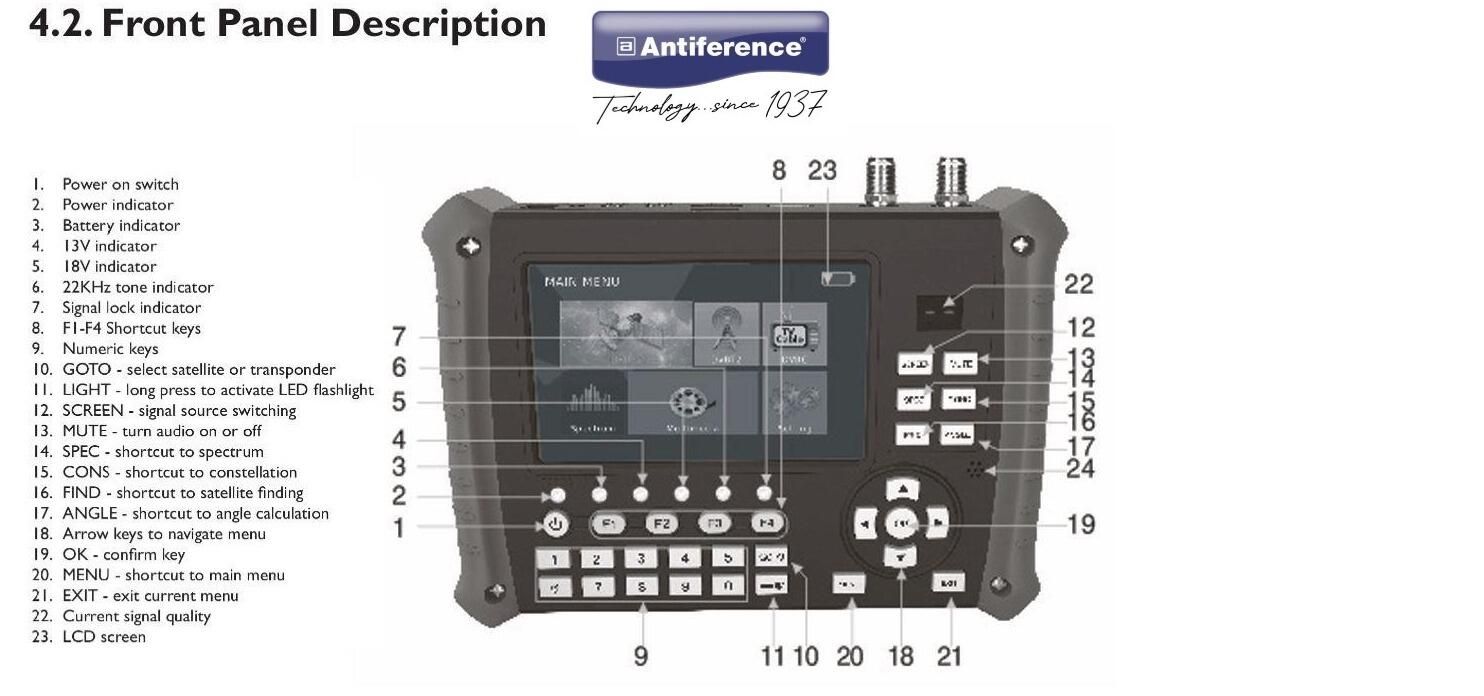

• 5 inch TFT LCD display
•  Supports DVB-S/S2/DVB-T/T2/DVB-C.
•  Video decoding: MPEG2/4, H.264, HVEC/H.265
•  Audio decoding: MPEG-1, MPEG-2, ISO/IEC 13818-3 LAYER I&II
•   Measurement values MER, dbµV, VBER, CBER, LBER
•  Internet connection with USB WiFi dongle (available from 3rd party supplier)
•  Signal lock audible notification
•   CVBS input/output (CCTV)
•  USB interface for firmware updates and PVR function

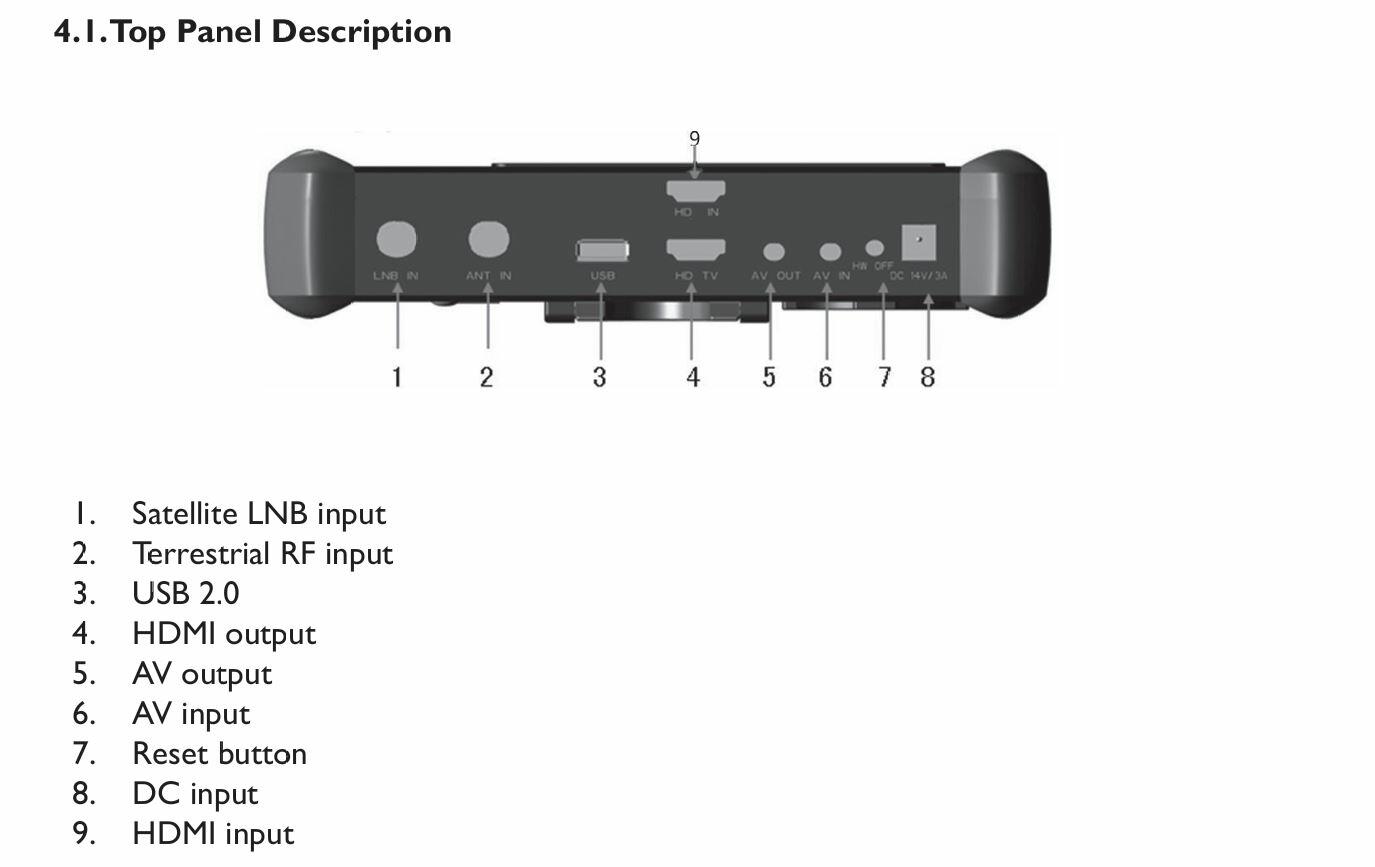

•  HDMI input/output (CCTV)

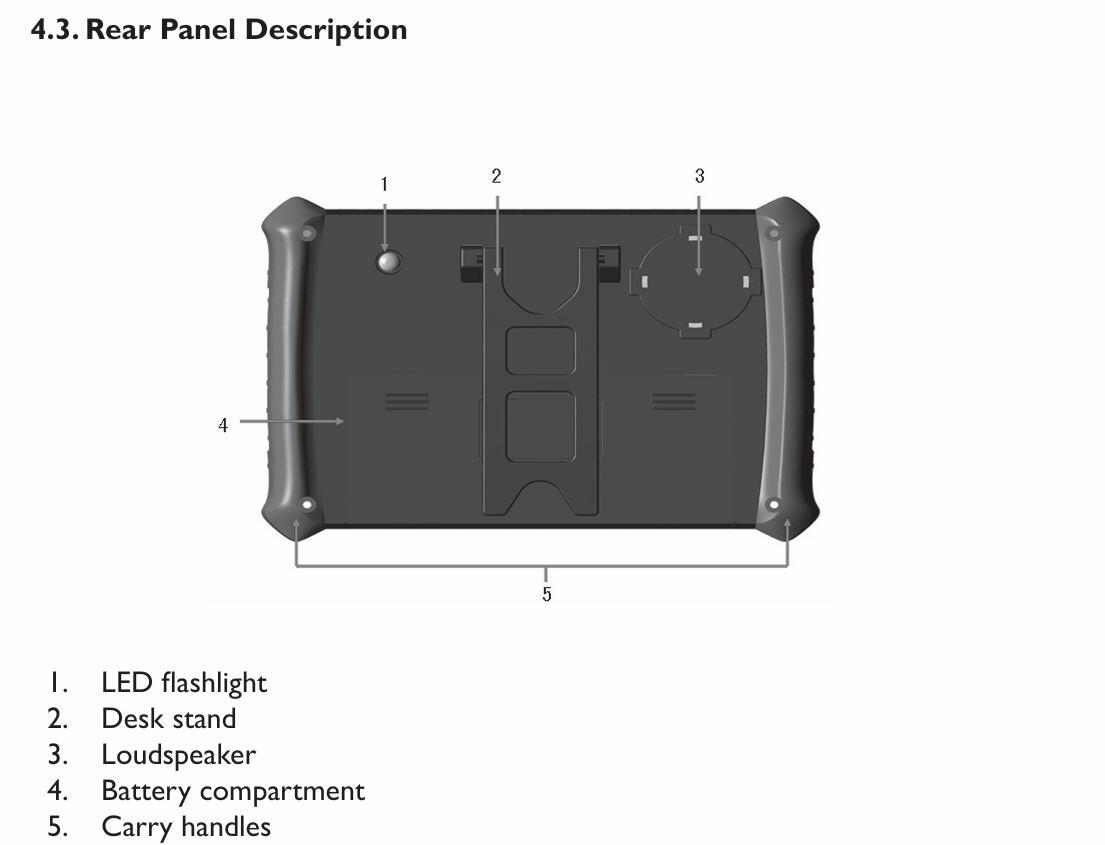

•  LED flashlight
•  Li-ion battery 4000mAh@12.6V
•  OSD with multi-languages
•  Loudspeaker for audio playback
•   Protective case
• power supply 100-240V/50/60Hz 12V 3000mA
