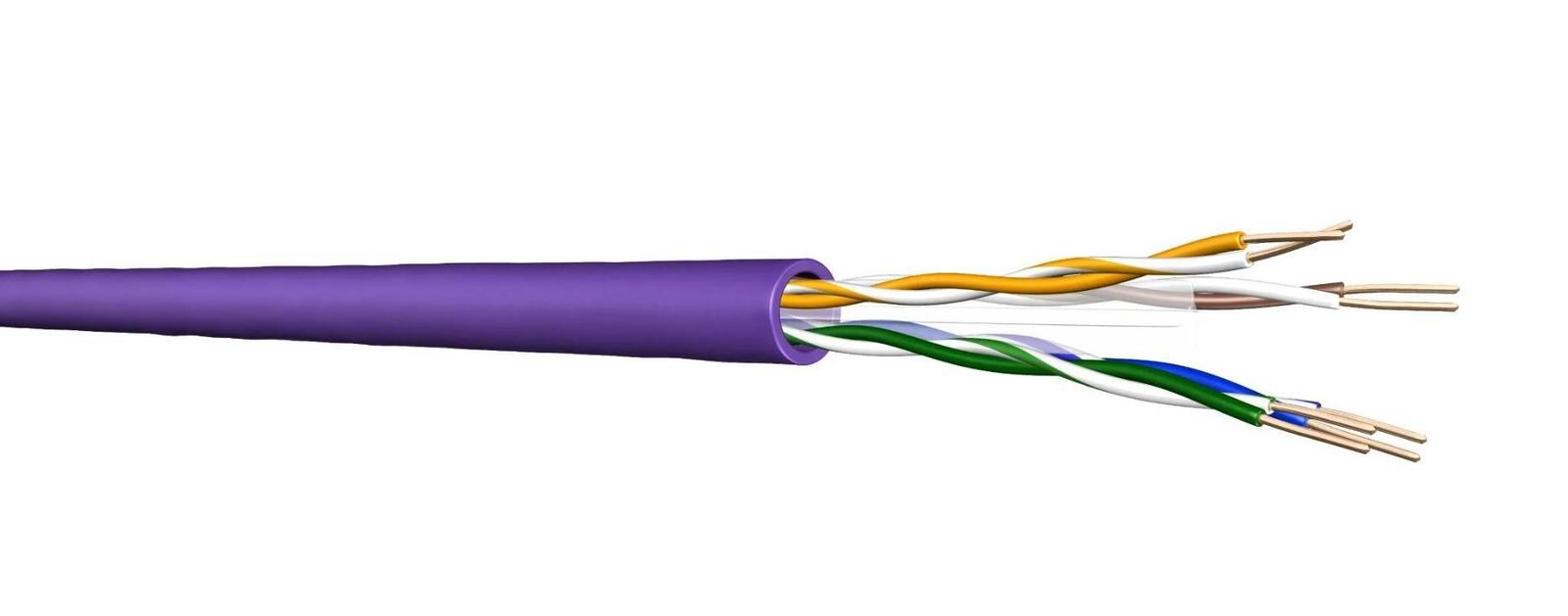

CAT5e UTP LSOH Violet, 305m

EIA/TIA 568A, ISO/IEC 11801 2ND ED,

IEC 61156-5, EN50173, EN 50288-3-1

CONDUCTOR: Bare copper wire 0.5mm diameter (AWG24)

INSULATION: Polyethylene 0.9mm diameter

TWISTING: 2 cores to the pair

CABLE LAY UP: 4 pairs to the core

SHEATH COLOURS: PVC grey, OHLS violet

MINIMUM BENDING RADIUS: Installation 8D, Installed 4D

TEMPERATURE RANGE:

During operation -20˚C upto +60˚C

During installation 0˚C upto +50˚C

DC LOOP RESISTANCE: ≤ 190 Ω/km

RESISTANCE UNBALANCE: ≤ 2%

INSULATION RESISTANCE (500V): ≥ 2000 MΩ/km

CAPACITANCE AT 800Hz: nom. 48nF/km

CAPACITANCE UNBALANCE (PAIR TO GROUND): ≤ 1500 pF/km

CHARACTERISTIC IMPEDANCE (1-100 MHz): (100 ± 15)ΩΩ

NOMINAL VELOCITY OF PROPAGATION: Approx 67%

PROPAGATION DELAY: Nominal ≤ 535 ns/100m

DELAY SKEW: Nominal ≤ 20 ns/100m

TEST VOLTAGE (DC, 1 min) CORE/CORE: 1000V
