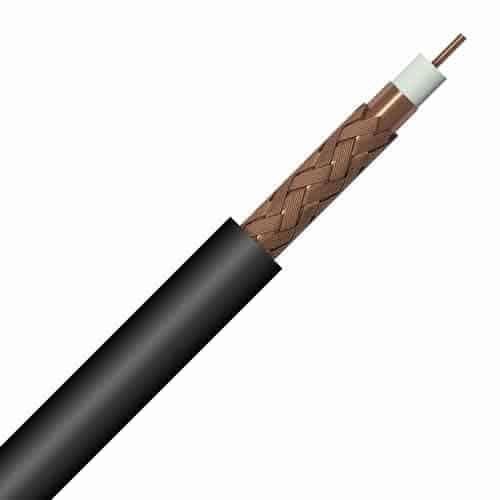

Premium CT100 LSZH Coax Cable 250m
High-Performance 75Ω, LSZH, Dual-Screened
The CT100 coaxial cable is a premium, professional-grade 75Ω cable designed for TV, CCTV, satellite, and terrestrial installations. Its dual-screened construction (conductive foil + woven braid) ensures excellent noise rejection and signal integrity, while the foamed-polyethylene dielectric provides low signal loss across long runs.
The LSZH (Low Smoke Zero Halogen) outer jacket offers high performance and safety in installations where fire and smoke standards are critical. Supplied on a 100m drum, it is ideal for both commercial and residential multi-point TV distribution systems.
Features
- Manufactured to CT100 industry standard
- True 75Ω characteristic impedance for reliable signal quality
- Dual screen: conductive foil + woven braid for excellent noise rejection
- Low-loss foamed-polyethylene dielectric
- LSZH high-performance outer jacket for fire and smoke safety
- Exceeds fire and gas emission standards: IEC61034-1:2005, IEC61034-2:2005, IEC60332-1-2:2004, IEC60754-2:1991
- Ideal for digital satellite, terrestrial TV, cable TV, and CCTV systems
- Supplied on 100m black LSZH drum
- Colour-coded cores for easy identification
Technical Specifications
- Cable Type: CT100 Copper Coaxial
- Conductor: 1.0mm Copper
- Impedance: 75Ω
- Core Count: 5 (including earth)
- Screening: Dual-screen foil + woven braid
- Dielectric: Low-loss foamed polyethene
- Outer Jacket: LSZH (Low Smoke Zero Halogen)
- Length: 100m per drum
- Applications: Professional TV & CCTV installations, multipoint distribution systems, head-end installations

Share the love with your friend
Complete the form below and we'll email your friend about this product
You’ll earn 0 reward points with this purchase.
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Premium CT100 LSZH Coax Cable is a high-quality coaxial cable that is commonly used in various applications, such as in television and radio broadcasting, telecommunications, and CCTV systems. LSZH stands for Low Smoke Zero Halogen, which means that the cable has a flame-retardant outer sheath that produces low smoke and does not emit toxic halogen gases in the event of a fire.
The CT100 designation refers to the specific design and specifications of the cable. It is a 75-ohm impedance cable that is designed to carry high-frequency signals over long distances. The cable features a solid copper core, which is surrounded by a layer of dielectric material, and then a braided copper shield. This shield helps to prevent signal interference and ensure the highest possible signal quality. One of the key benefits of using a Premium CT100 LSZH Coax Cable is its superior signal quality.
The cable is designed to minimize signal loss and interference, which means that it can transmit high-quality video and audio signals over long distances without degradation. This makes it an ideal choice for use in professional applications where signal quality is critical. Another important benefit of using a Premium CT100 LSZH Coax Cable is its durability and reliability.
The cable is made from high-quality materials that are designed to withstand harsh environmental conditions and frequent use. The LSZH outer sheath provides additional protection against damage and ensures that the cable meets the highest safety standards. In summary, if you are looking for a high-quality coaxial cable for professional or industrial use, a Premium CT100 LSZH Coax Cable is an excellent choice. Its advanced design and LSZH construction make it a safe and reliable option that can provide superior signal quality over long distances.
Inner Conductor Annealed Copper
Conductor Diameter (mm) 1.00 ±0.01
Insulation Foamed PE
Insulation Thickness (mm) 1.79 ±0.01
Insulation Colour White
Insulation Thickness 2 (mm) 4.65 ±0.5
AI-PET Shield Copper coloured >=115%
Braid Copper Clad Aluminium
Braid Construction 0.12 ±0.003 x 16 x 4
Braid Coverage >=46%
Jacket UV LSZH
Jacket Colour Black RAL 9005
Jacket Thickness (mm) 1.23
Overall Diameter (mm) 6.60 ±0.20
Overall Sheath UV LSZH
Overall Colour Black
Capacitance >55 nF/km
Nominal Velocity Ratio 0.84
Impedance 76O ±3O
Weight 10.6
Compliance and Standards CE2014/30/EU,RoHS2 2011/65/EU,LVD 2014/35/EU
CPR Dca -s2 -a1 -d1
Application For satellite, television and CCTV installations.
EAN 5056631500179
Drain Wire N
Flame Propagation Standard Dca
| Manufacture Securi-flex Cable |
