Pyronix Security

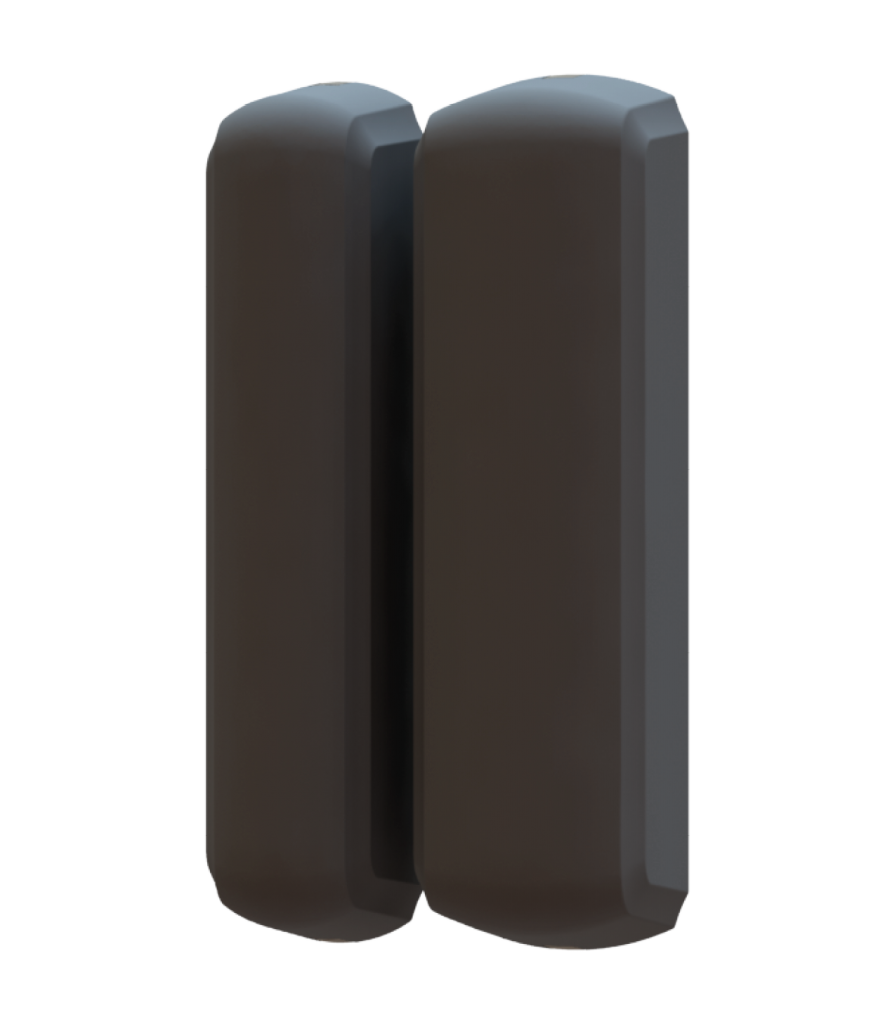

Pyronix External Magnetic Contact

Pyronix Security

Pyronix External Magnetic Contact



External contact for protecting gates, garages, sheds, roller shutters and more

Universal transmitter with wired input terminals

Robust housing


No wires, no fuss

IP66 rating

Two-way Wireless Technology

Signal Strength Indicator (SSI)

Pyronix High Security Wireless Encryption Protocol

One-Push-To-Learn Button

Trade log in




Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Built for outdoors

Developed and manufactured to last, the MCEXTERNAL-WE is built with several layers of quality housing and a firm rubber

gasket for satisfying installation and superior robustness. With an IP66 rating, be secure whatever the weather.

Mind the gap

The MCEXTERNAL-WE’s large magnet reduces the risk of false alarms to protect gaps up to 70mm between magnet and

unit. This provides maximum flexibility on installation across a range of different applications. So, whether protecting garden

gates, garage doors, shed doors or roller shutter doors, the MCEXTERNAL-WE has it covered.

Extend your capabilities with video verification

By linking the MCEXTERNAL-WE with our range of security cameras, in the event of an activation, your user will receive a

voice push notification alongside video verification. Alerted and shown exactly what’s happening via the smart device app, your

user can evalute and take appropriate action.

Maximum outdoor security, with style

It may have been developed for harsh outdoor conditions, but the MCEXTERNAL-WE’s stylish anthracite housing still provides a

discreet, uniform and premium finish.

Security that’s not to be tampered with

With two firm fixes and a rear tamper breakout, the

MCEXTERNAL-WE means business, providing easy and firm

installation. Its CR123A battery also minimises maintenance, with

a life up to 2 years.


External Magnetic Contact

Key features

Front and rear tamper protection P

Signal Strength Indicators (SSI) P

Magnet included P

Casing (outer/inner) & colour (2mm / 2.5 to 4mm) polycarbonate,


IP rating IP66

Electrical specifications

Transmission frequency 868MHz, FM transceiver narrow band

LED colours Red, blue, green

Transmission method Fully encrypted rolling code, 300m


Storage -30°C to 60°C

Operating -25°C to 60°C


1x lithium battery included 1 x 3V lithium CR123A

Low voltage threshold 2.2V +/-5%

Dimensions (W x H x D) and weight

Device 40 x 146 x 40mm, 155g

Magnet 30 x 146 x 40mm, 95g


Electrical conformity CE

EN50131 Grade 2*

Environmental class II

PDFSpec Sheet
