Antiference Solutions

Antiference HDMI0108SCATV3

Antiference HDMI0108SCATV3 1 x 8 HDMI Over CAT6 splitter with auto-scaling
Antiference Solutions

Antiference HDMI0108SCATV3

1 x 8 HDMI Over CAT6 splitter with auto-scaling

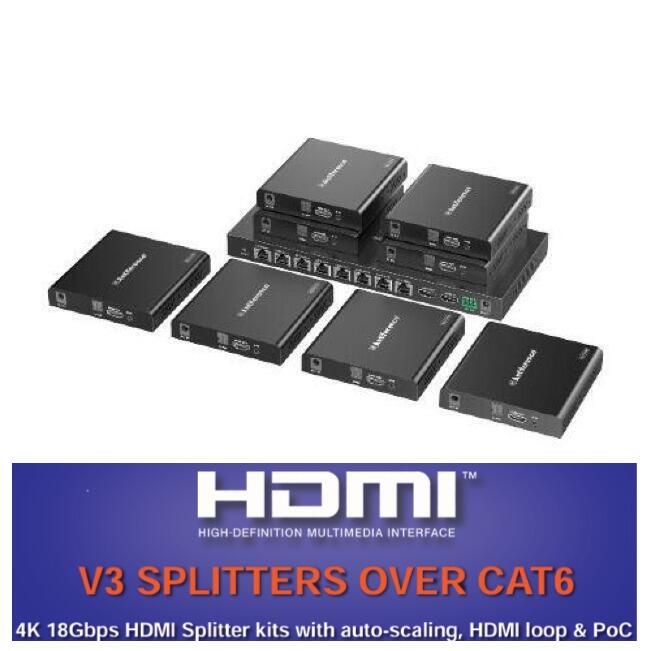

This Antiference 4K HDMI splitter over CAT6 takes a single HDMI source and can split to up to 9 displays using the 8 CAT6 outputs and 1 HDMI loop output.

4K or 1080p resolutions can be sent up to 70m over the CAT6 cable runs to the PoC receivers units at the displays.

The splitter kit features an auto-scaling function to enable a 1080p screen to be connected to the system and receive audio and video from a 4K source.

The system downscales as required.

PoC receivers feature an optional optical audio output allowing audio to be routed to either the optical S/PDIF connection or the HDMI.

IR control is also included to allow remote control of the source.

  • 18Gbps video bandwidth
  • 1 HDMI input, 4 CAT6 outputs + local HDMI loop through
  • Supports resolutions up to 2160p@60 4:4:4 with HDCP2.2
  • Extend UHD@60 or 1080p@60 to 70m over a single CAT6
  • Auto-scaling function
  • Supports bi-directional IR control
  • Advanced EDID management system
  • One way PoC system
  • Supports up to 5.1CH Dolby Digital audio pass-through
  • HDMI or S/PDIF audio output selector on receiver


£0.00
£726.42

QTY


Antiference HDMI0108SCATV3 1 x 8 HDMI Over CAT6 splitter with auto-scaling

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Antiference HDMI0108SCATV3 is a combination HDMI splitter and CATV distribution amplifier. It allows you to distribute a single HDMI source to up to 8 displays and also amplify a CATV signal to multiple TVs.

4K 18Gbps Support: It is capable of handling 4K resolution video signals at a bandwidth of 18Gbps, ensuring high-quality video transmission.

Auto-Scaling: The splitter has an auto-scaling feature, which means it can adjust the resolution and aspect ratio of the input signal to match the capabilities of the connected displays. This ensures compatibility and optimal viewing experience across different devices.

CAT6 Connectivity: In addition to the HDMI connections, this splitter also utilises CAT6 cables to distribute the HDMI signals to the output devices. CAT6 cables are commonly used for Ethernet and can provide reliable transmission over longer distances compared to standard HDMI cables.

Product Description

  • 18Gbps 4K HDMI splitter over CAT6
  • Auto-scaling function
  • HDR support
  • 70m range over CAT6
  • HDMI loop out
  • PoC receivers
  • Audio output selector on receiver
  • IR control
  • EDID management system
  • Complete kit with receivers included
PDFSpec Sheet
PDFHDMI0108SCATV3-User-Guide
