Hikvision Security UK

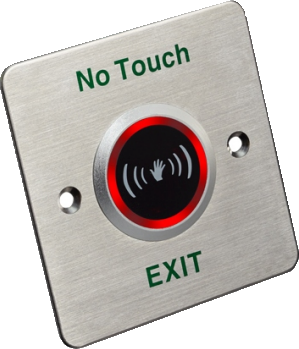

Hikvision Contactless Exit Button

HIKVISION CONTACTLESS BUTTON DS-K7P03
Hikvision Security UK

Hikvision Contactless Exit Button

Touch Free Exit Button

  • Dimension (L x W x H) 86 x 86 x 25.7mm (3.39" x 3.39 x 1.01")
  • Input voltage: 12V DC
  • Working current: 40 mA (standby), 70mA (working)
  • Current rating: 1 A@30 VDC
  • Outout contact: NO/NC/COM contact
  • Panel: Stainless steel
  • Aging test: Already passed 1 million times aging test
  • Suitable doors: All kindss of narrow doorframes
  • Working Temperature: -20ºC to 50ºC (-4ºF to 122ºF)
  • Working humidity: 0 to 95% (relative humnidity)
  • Detection range (adjustable): 40mm to 120mm (1.57 to 4.72")
  • Time delay: 1 to 25s (adjustable)
  • LED indicator status: Green/red LED indicates working/standby
  • Product weight: 0.2kg (0.44lb)
  • SKU :- DS-K7P03
£0.00
£22.62

QTY


HIKVISION CONTACTLESS BUTTON DS-K7P03

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Hikvision Contactless Exit Button is a device used for secure access control systems, particularly in commercial or institutional settings. Unlike traditional exit buttons that require physical contact, these contactless exit buttons utilize proximity sensing technology.

This means users can trigger the button without actually touching it, enhancing hygiene and minimizing the spread of germs or contaminants.

These buttons typically use infrared or capacitive sensing to detect when a person's hand or body is nearby, activating the button to release a door lock or grant access.

PDFSpec Sheet
