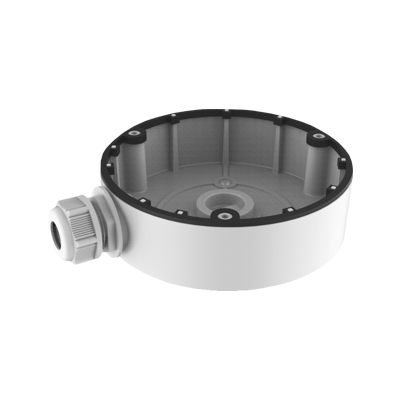

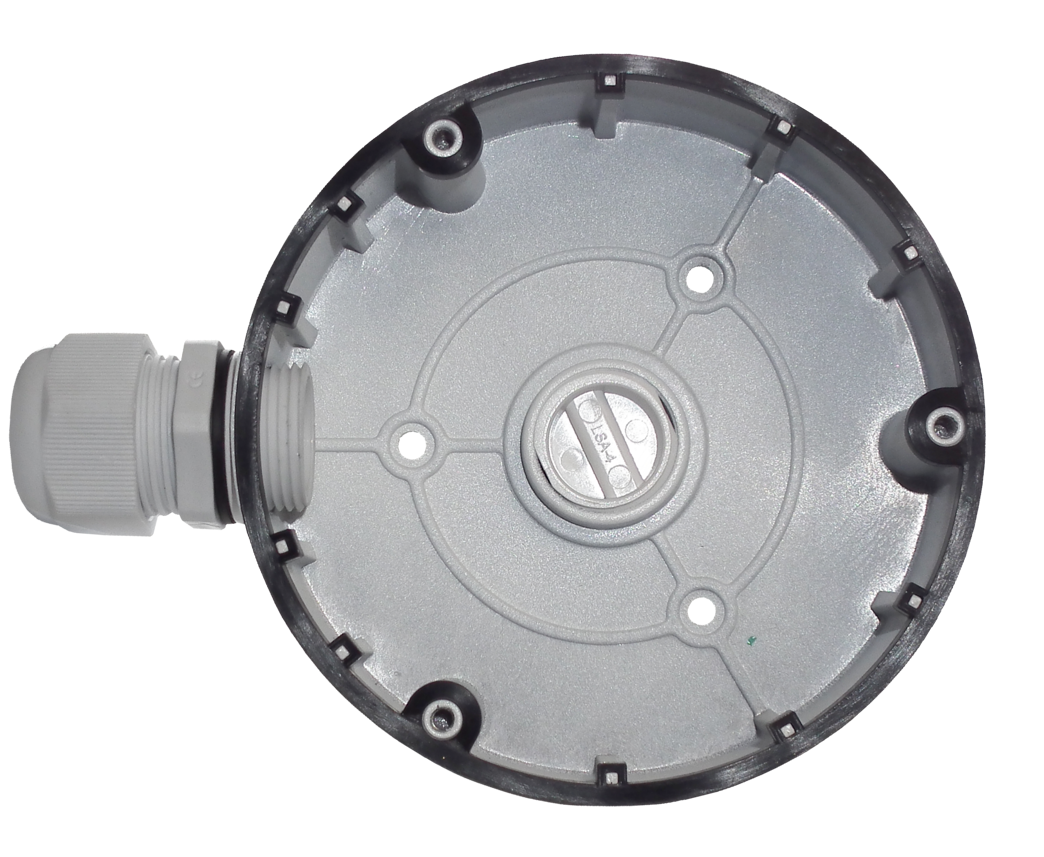

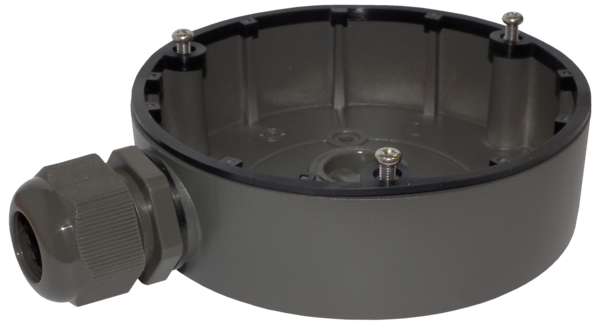

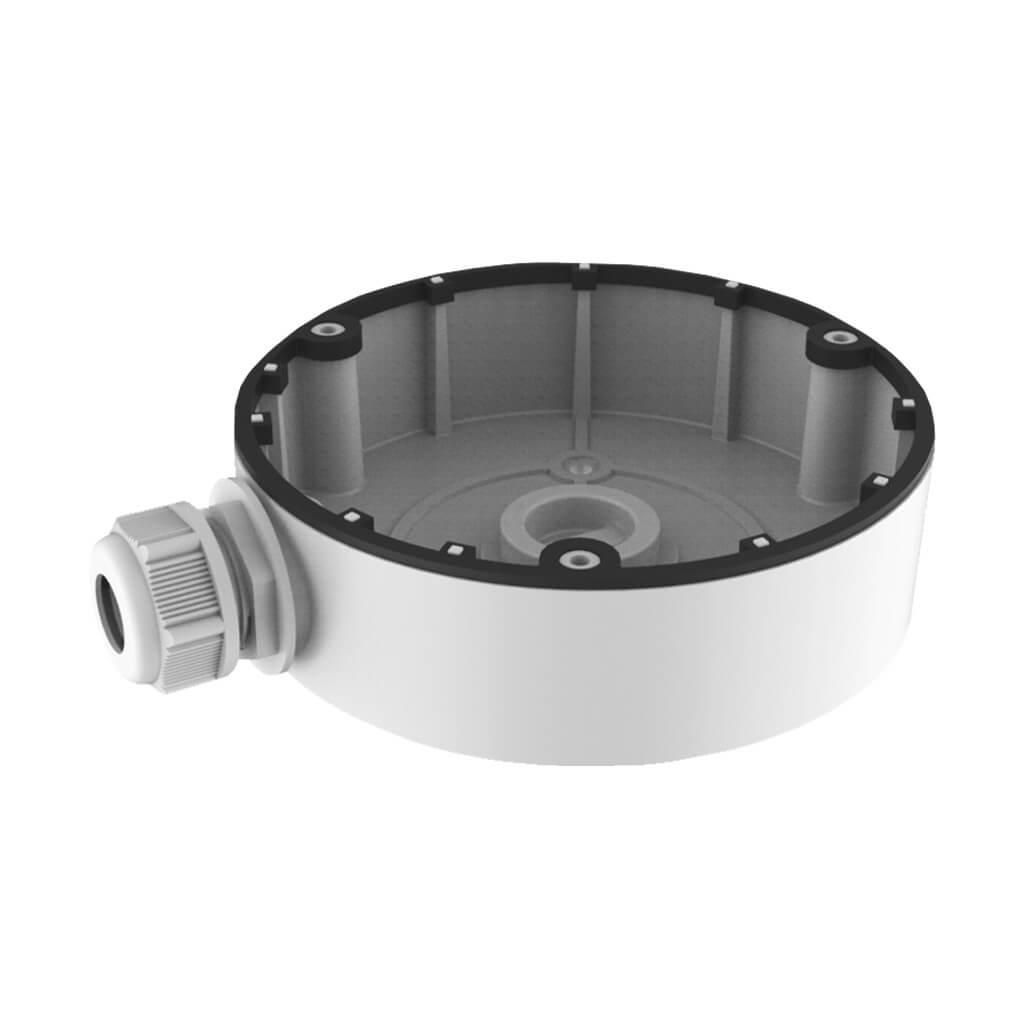

Hikvision DS-1280ZJ-DM8 - Junction Box

Junction Box For DS-2CD23 Range Of IP Cameras**

Parameters: Power intake box
Colour: Hik White
Feature: Suitable for dome cameras
Material: Aluminum Alloy
Cable gland size G
Dimension: 126.7 x 35mm
Weight: 210g
The junction box should be installed on the flat surface.
The waterproof rubber is necessary for the outdoor application.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket.
The maximum load capacity of the bracket is 1 Kg (2.2 lb.).

Please login for pricing

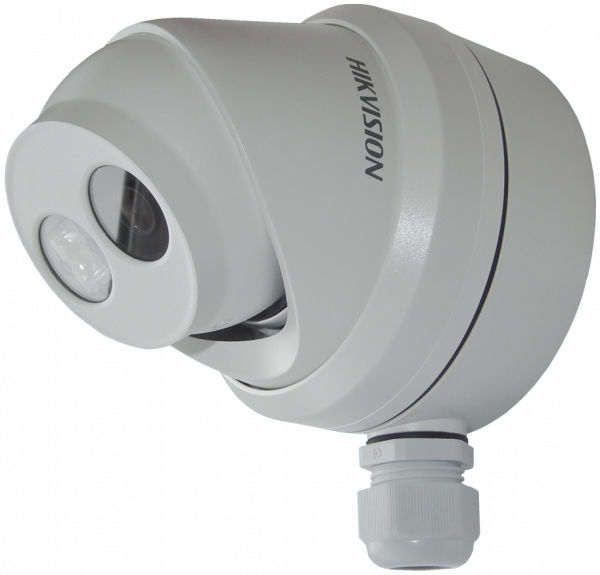

The Hikvision DS-1280ZJ-DM8 is a junction box designed for use with select Hikvision dome cameras. The box is made of high-quality aluminium alloy and is designed to provide a secure and sturdy mounting solution for the camera.

The junction box allows for flexible cable routing and protects the camera's wiring from environmental damage, which makes it ideal for outdoor installations. The DS-1280ZJ-DM8 is compatible with a range of Hikvision dome cameras.

It comes with a waterproof rubber gasket that helps to ensure the camera remains protected from moisture and dust, which is especially important for outdoor installations.

The junction box also features a cable gland that provides a secure and professional cable management solution.
