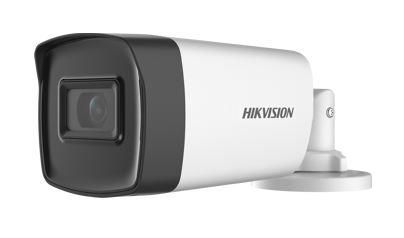

Hikvision DS-2CE17H0T-IT3E -(3.6MM)(C)

 Specification

Camera

Image Sensor 5 MP CMOS

Max. Resolution 2560 (H) × 1944 (V)

Min. Illumination 2.8 mm, 3.6 mm and 6 mm: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night ICR

Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°

Signal System PAL/NTSC

Lens

Lens Type 2.8 mm, 3.6 mm and 6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°

6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV: 72°

Lens Mount M12


Image Parameters Switch STD/HIGH-SAT

Image Settings Brightness, Sharpness, Smart IR

Frame Rate 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps

Day/Night Mode Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR) Digital WDR

Image Enhancement DWDR, BLC, HLC, Global

Noise Reduction 2D DNR

White Balance Auto/Manual

AGC Yes

Interface

Video Output 1 HD analogue output

General

Material

Front Cover: Metal

Main Body: Plastic

Dimension 216.6 mm × 78.9 mm × 75.4 mm (8.53" × 3.10" × 2.97")

Weight Approx. 380 g (0.84 lb.)

Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication HIKVISION-C

Language English

Power Supply

12 VDC ±25%/PoC.af

*You are recommended to use one power adapter for one camera, and use 2-pin

power supply for long-distance power supply.

Consumption Max. 4 W

IR Range Up to 40 m
