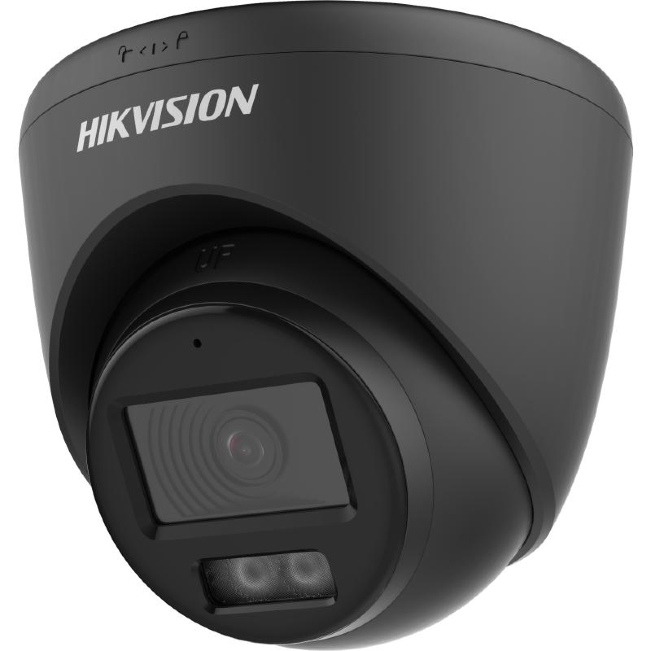

HIKVISION DS-2CE72KF0T-LFS

3K ColorVu Audio Fixed Turret Camera

  • High quality imaging with 3K
  • 2960 × 1665 resolution
  • 24/7 colour imaging with F1.0 aperture
  • 2.8 mm fixed focal lens
  • Up to 40 m IR distance for bright night imaging
  • Up to 40 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • High quality audio with audio over coaxial cable, built-in mic
  • Water and dust resistant (IP67)

smart hybrid, DS-2CE72KF0T-LFS



HIKVISION || DS-2CE72KF0T-LFS

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Specification

Image Sensor 3K CMOS

Signal System PAL/NTSC

Resolution 2960 (H) × 1665 (V)

Frame Rate

TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps

AHD: 5 MP@20fps, 4 MP@25fps/30fps

CVI: 4 MP@25fps/30fps

CVBS: PAL/NTSC

Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens 2.8 mm

Field of View

2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°

3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°

Lens Mount M12

Light Alarm Solid Light Alarm (White Light)

Day & Night 24/7 Color Imaging

WDR (Wide Dynamic Range) Digital WDR

Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


White Light Auto/Off

Image Mode STD/HIGH-SAT/HIGHLIGHT

AGC Yes

Day/Night Mode Colour

White Balance Auto/Outdoor/Global/Manual

AE (Auto Exposure) Mode DWDR,BLC,HLC,Global,HLS

Noise Reduction 2D DNR

Language English

Function

Brightness,Contrast,Mirror,Defective Pixel Correction,Sharpness,Anti-Banding,Smart

Light

Interface

Video Output Switchable TVI/AHD/CVI/CVBS

Audio In Built-in mic

General

Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%,

*You are recommended to use one power adapter to supply the power for one camera.

Consumption Max. 3.5 W

Protection Level IP67

Material Main body: Metal, Enclosure: Plastic

White Light Range Up to 40 m

Communication HIKVISION-C

Dimension Φ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")

Weight Approx. 318 g (0.70 lb.)
