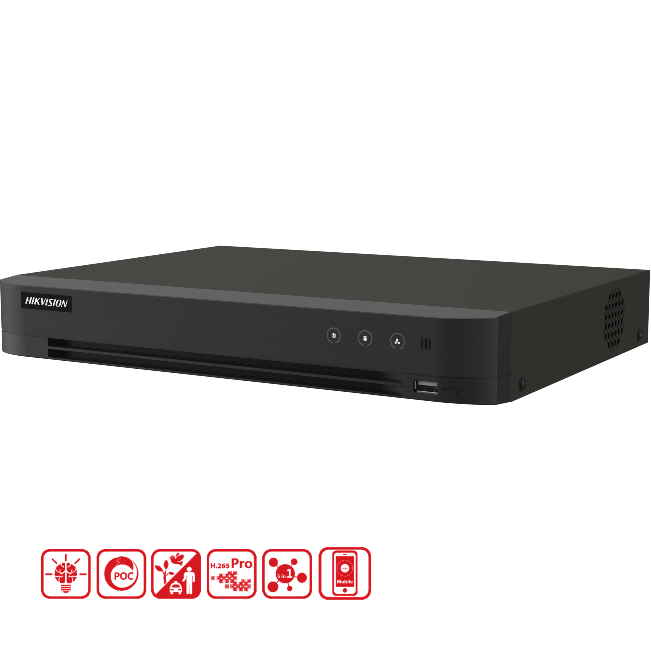

HikVision iDS-7204HUHI-M1/PXT
4-ch 5MP 1U H.265 AcuSense POC DVR
Hikvision iDS-7204HUHI-M1/PXT is a 4-channel 1U Digital Video Recorder (DVR) designed for advanced surveillance with multiple video formats, including HD-TVI, AHD, CVI, CVBS, and IP cameras. Featuring AcuSense technology, it delivers intelligent monitoring with enhanced accuracy for human and vehicle detection.
Equipped with deep learning-based analytics, this DVR supports 2 channels of facial recognition or 4 channels of perimeter protection, reducing false alarms and improving event accuracy. It also supports 4-channel AcuSearch technology, enabling efficient retrieval of relevant events from recorded footage.
The DVR encodes up to 4K/8MP @ 8fps (1-ch) and 3K/5MP @ 12fps, supporting up to 8 channels of IP camera inputs with a maximum of 8MP per channel. H.265 Pro+ compression ensures efficient storage without compromising video quality. Additionally, the device supports two-way audio via HD-TVI, motion detection on all channels, and adaptive input across 5 signal types.
With 1 HDD slot and a compact 1U form factor, the iDS-7204HUHI-M1/PXT is ideal for professional surveillance installations requiring reliable performance, high-definition recording, and smart analytics.
Features:
- 4-channel 1U H.265 AcuSense PoC DVR
- Supports HD-TVI, AHD, CVI, CVBS, and IP cameras
- Deep learning analytics: 2-ch facial recognition / 4-ch perimeter protection
- 4-ch AcuSearch for fast video retrieval
- Up to 4K/8MP @8fps (1-ch) and 3K/5MP @12fps
- Up to 8 channels IP input (max 8MP each)
- All-channel motion detection
- HDTVI two-way audio support
- Efficient H.265 Pro+ compression
- 1 HDD slot, compact 1U form factor
Please login for pricing
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
AcuSense Technology: Utilises deep learning algorithms to distinguish between human and vehicle targets, effectively reducing false alarms caused by irrelevant moving objects like leaves or lights.
Power over Coax (PoC): Simplifies installation by delivering power to compatible cameras directly through the coaxial cable, eliminating the need for separate power supplies.
Video Input Flexibility: Supports 4 analogue channels and up to 8 IP channels (with enhanced IP mode enabled), accommodating various camera configurations.
High-Definition Recording: Capable of recording at resolutions up to 8 MP at 8 frames per second (fps) for channel 1, and 5 MP at 12 fps for other channels.
Efficient Compression: Employs H.265 Pro+ compression technology to optimise storage usage without compromising video quality.
Smart Analytics: Includes features like facial detection and perimeter protection (line crossing and intrusion detection) for enhanced security monitoring.
Storage Capacity: Equipped with one SATA interface, supporting hard drives up to 10 TB for extended video storage.
Remote Access: Compatible with Hik-Connect for cloud-based P2P remote viewing, allowing users to monitor their surveillance system from various devices.
HikVision iDS-7204HUHI-M1/PXT
Spec Sheet
