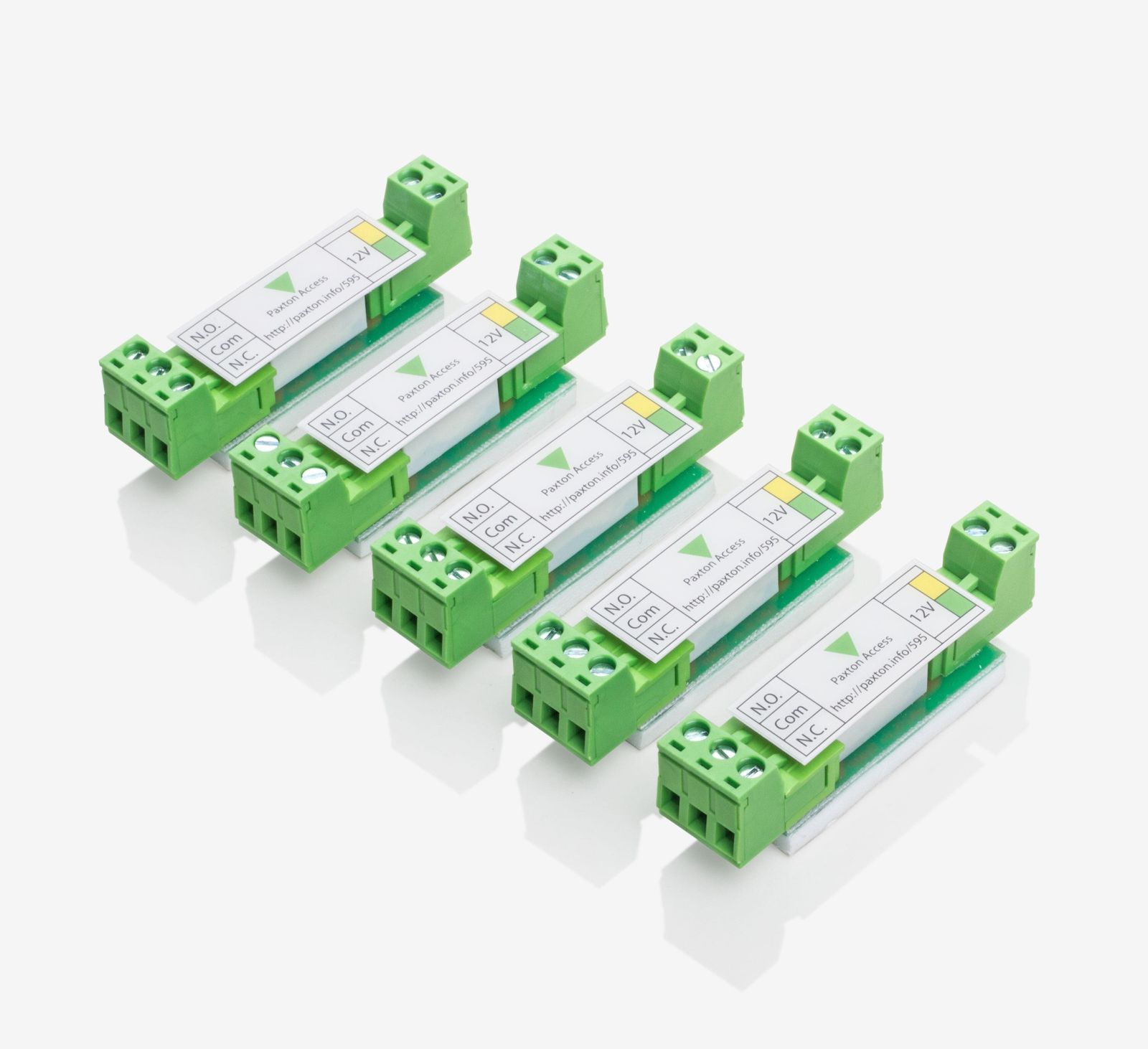

Paxton Compact – Relay module, pack of 5

Paxton Compact – Relay module, pack of 5

Name: Paxton Compact – Relay module, pack of 5
Brand: Chester Digital Supplies Ltd
SKU: 325-010
Price: 36.36 GBP
Availability: InStock

Compact Relay Module with Volt-Free Contacts

Compact Relay Module is designed to convert the 12V DC output from compact access control systems into switched volt-free contacts (NO/NC). This makes it ideal for controlling external equipment such as roller shutters, 24V locks, or other devices that require a volt-free input.

The module features colour-coded terminals for straightforward installation—simply wire according to the labels provided. It is engineered to handle switching of up to 40V AC/DC at 4A, offering reliable operation for a wide range of access control and automation applications.

Features

Converts 12V DC switched output to volt-free contacts
Provides Normally Open (NO) / Normally Closed (NC) functionality
Colour-coded terminals for easy installation
Suitable for roller shutters, 24V locks, and other external devices
Switches up to 40V AC/DC at 4A
Compact, reliable, and professional-grade module

SKU: 325-010

Trade log in

£0.00

£36.36

Description
Delivery & Manufacture

Compact systems use a 12V DC switched voltage to provide

an output for a lock. This is not suitable in situations where

volt free contacts are required for controlling external

equipment, such as roller shutters or 24v locks. The compact

relay module has been designed to be connected across this

output (Green / Yellow wires) and provide switched (NO / NC)

volt free contacts.

The terminals are colour coded to show the compact

connections. Simply wire according to the label on the

module.

The relay is suitable for switching a maximum of 40V AC/DC

at 4A.
