- Digital Toslink / Coax to RCA Phono L / R Audio Converter

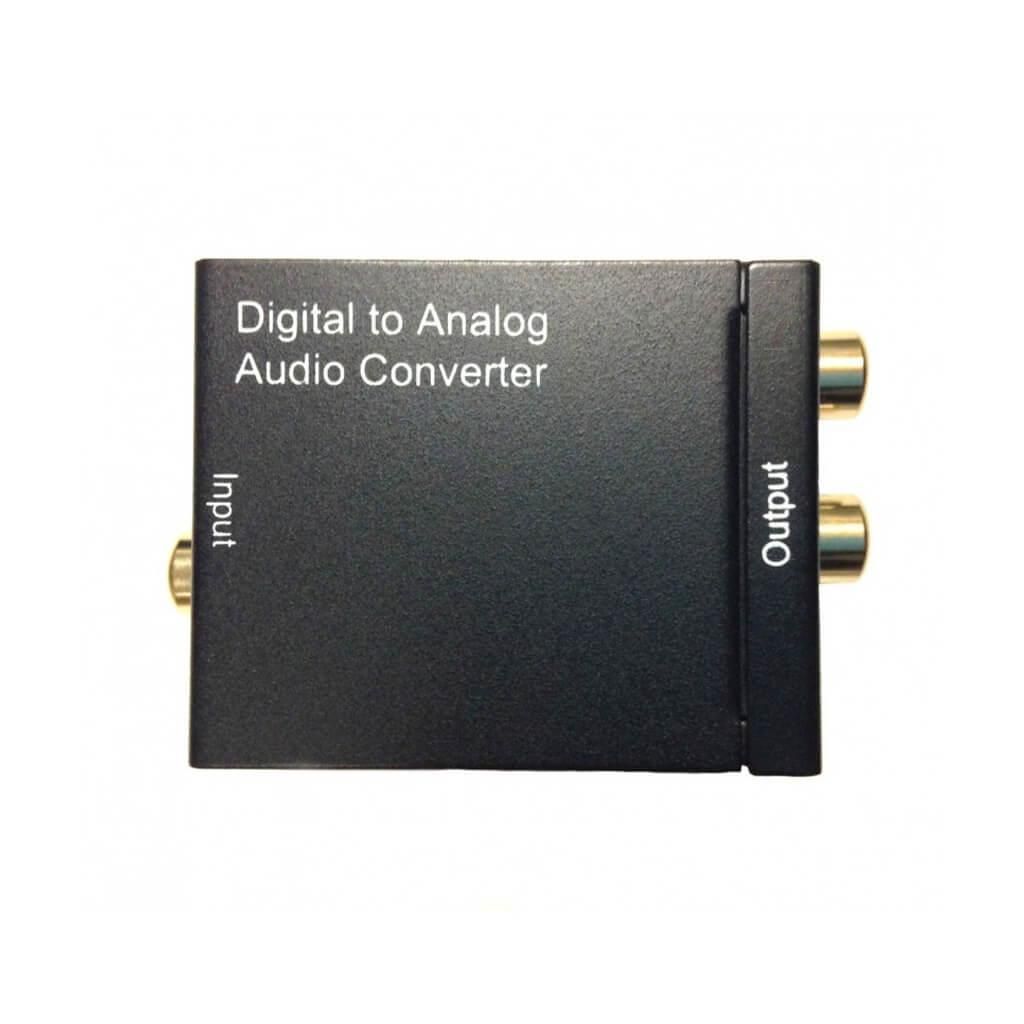

Digital Toslink / Coax to RCA Phono L / R Audio Converter
Proception PRODAC22 is designed for either home or professional audio switching.
It converts Coaxial or Toslink digital audio signals to analogue L/R audio via RCA phono outputs to make an easy connection to an external device such as an amplifier.
The converter is small and easy to install.

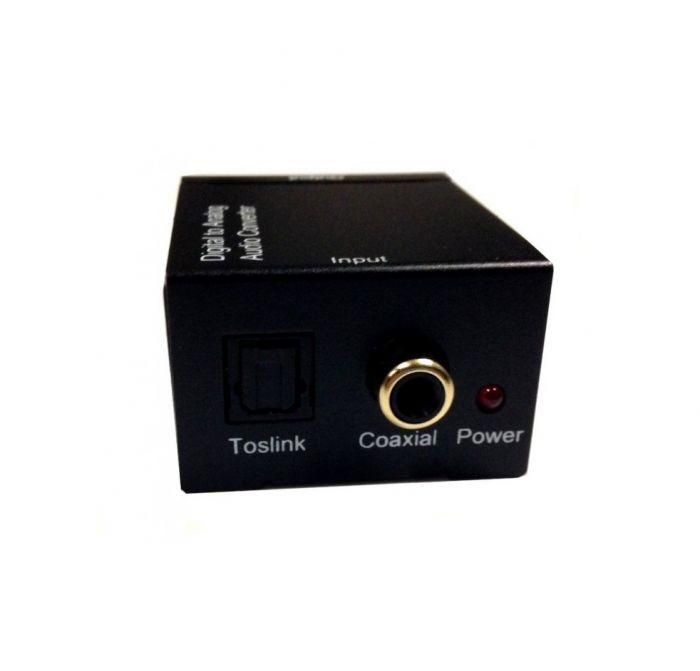

- Toslink/Optical or Co-axial inputs + power LED.

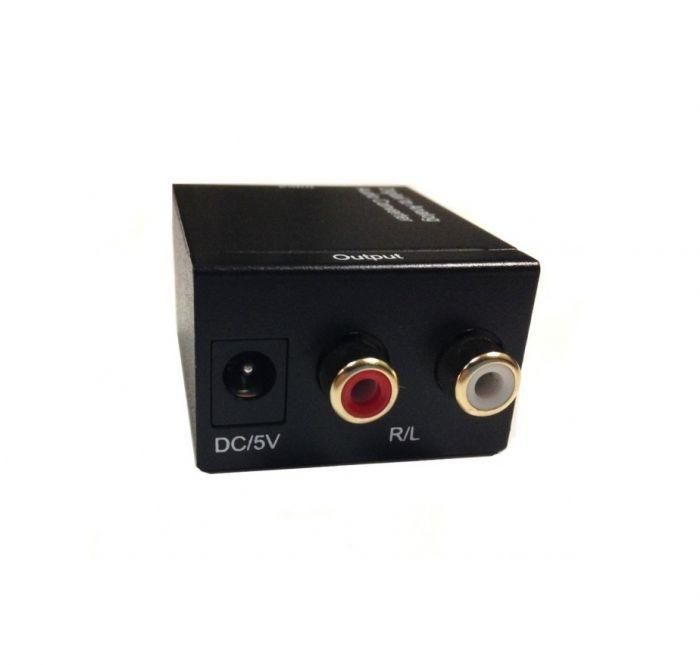

- L/R audio outputs + PSU input.
- Supports sampling rate at 32, 44.1, 48 and 96 kHz.
- 24-bit S/DIF incoming bit stream on left and right channels.
- Provides electromagnetic-noise-free transmission.
- Low cost, easy to install, simple to operate solution.
Share the love with your friend
Complete the form below and we'll email your friend about this product
You’ll earn 0 reward points with this purchase.
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Toslink audio connection that uses fiber optic cables to transmit digital audio signals between devices. The term "Toslink" stands for "Toshiba Link," as the technology was first developed by Toshiba Corporation in the 1980s.
Digital Toslink cables are designed to transmit digital audio signals with high fidelity and low noise, making them a popular choice for home theater systems, audio interfaces, and other audio applications. The cables use light to transmit the audio signals, which eliminates the risk of electrical interference that can be present in traditional copper-based audio connections.
To use Digital Toslink, both the sending and receiving devices must have a Toslink port. The cable is then inserted into the port on each device, and the audio signal is transmitted over the fiber optic cable. The signal can be transmitted over long distances without signal degradation, making it ideal for use in home theater systems where the audio source is located far away from the audio receiver.
Audio Input | Coaxial or Toslink digital audio |
Audio Output | L/R audio |
Input audio connector | Toslink, 1 x RCA(Coaxial) |
Output audio connector | 2 x RCA (R/L) |
Sampling rate | 32,44.1, 48 and 96KHz |
Size(L x W x H) | 51mm x 41mm x 26mm |
Weight (Net) | 78g |
Warranty | 1 year (limited) |
Operating Temperature | 0to+70 |
Operating Humidity | 10% to 85% RH(no condensation) |
Storage Temperature | -10to+80 |
Storage Humidity | 5 to 90%RH(no condensation) |
External Power Supply | DC5V1A |
Power Consumption | 0.5 watt (max) |
Regulatory Approvals: | |
Converter Unit | FCC,CE,UL |
Power Supply | UL,CE,FCC |
AC Power Adapter | UK standard |
