Pyronix Alarms LEDRKP-WE

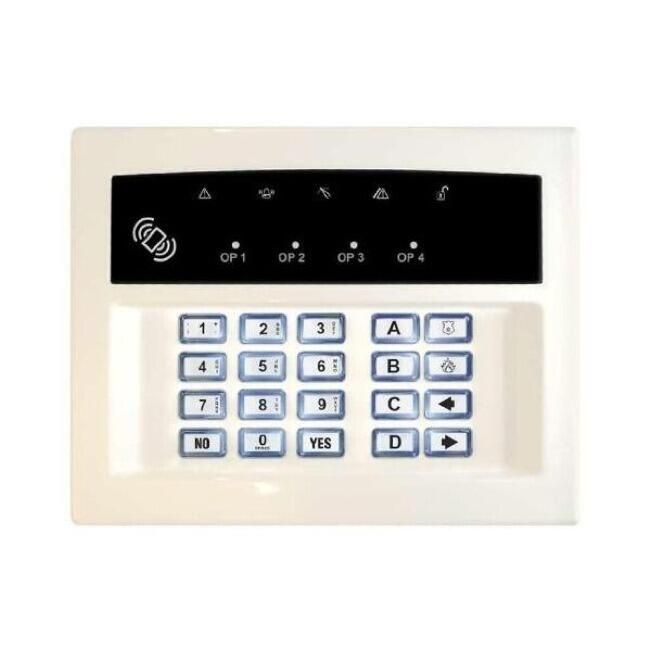

Pyronix LEDRKP-WE - Wireless Arming Station
Pyronix Security

Pyronix Alarms LEDRKP-WE

Wireless Arming Station


  • Wireless set/unset control
  • Activate home automation outputs
  • Backlight option
  • Integrated proximity reader
  • Local LED status indication
  • Stylish plastics
  • Optional flush backbox


Pyronix LEDRKP-WE - Wireless Arming Station

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Pyronix LEDRKP-WE Convenient, wireless and easy to use

The wireless arming keypad comes complete with system status indicators, allowing you to see the status of your system without having to go to the panel. The LEDRKP-WE has an integrated proximity tag reader, making setting and unsetting the system even easier.

Keypad controlled outputs

Wired automation outputs can be triggered on the panel, for example opening electrical gates, lighting, garage doors.


LEDRKP-WE is only compatible with Enforcer: V9.5 and above (Non-APP), V2.1 and above (APP), Enforcer v10 and above, and EURO: V9.5 and above (Non-APP), V2.1 and above (APP), and EURO v10 and above.

Entry and exit tones

Clear, audible tones give confirmation of entry to or exit from the property.

Instant two-way device control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices whilst preserving battery power. This technology not only provides installers with total control of each device but also gives users peace of mind that they have a reliable and secure wireless system:

Ensuring that all wireless detection devices know when the system is armed and disarmed.

Ensuring that they are awake as soon as the system is armed.

Enforcer two-way wireless technology with high-security encryption

The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high-security level. The protocol uses 128-bit Pyronix advanced encryption. With new plastics, the LEDRKP-WE is consistently stylish with the current surface and flush mount wired keypads. If flush mounting is desired, an optional backbox is available separately to achieve the perfect finish.

Pyronix LEDRKP-WE Signal strength indicator.

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real-time.

Setting devices technical characteristics

Activate output automation        Yes

Entry and exit tones        Yes

Backlit keys        Yes

LED keypad with icon display       Yes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)   Yes

Instant two way device control (ITDC)     Yes

Pyronix high security two way wireless data encryption protocol (TDE)     Yes

Pyronix intelligent jamming detection     Yes

Programmable wireless supervision time               Yes

868MHz transceiver FM technology         Yes

One push to learn            Yes

Transmission method    Fully encrypted rolling code

Transmission range         300m in open space

Environmental and operating features

Physical dimensions (H x W x D) 100 x 145 x 30mm

Electrical & battery

Battery type       1 x BATT-ES1

Battery life          2 years

Certifications and warranty

Security Grade  Grade 2

Environmental class        II

EN Certificate    EN50131

Certification type             Self-certified

Warranty             2 years
