SC APC to SC APC Simplex OS2

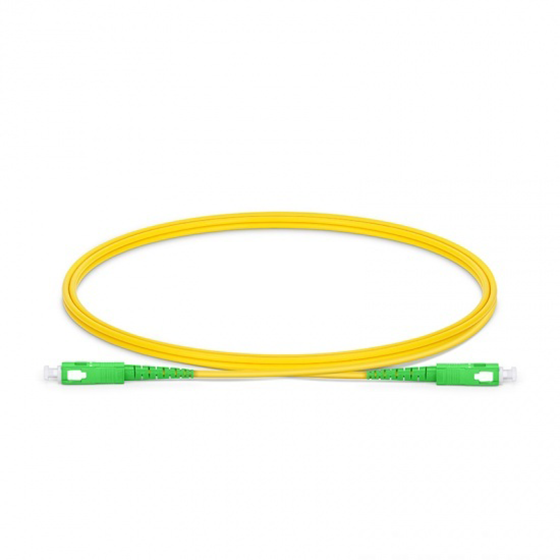

SC/APC to SC/APC OS2 Single Mode Fibre Optic Patch Lead i
A premium-grade simplex fibre cable designed for high-speed optical networking, telecommunications, FTTH deployments, CATV systems, and enterprise data infrastructure.
Manufactured using 9/125µm OS2 single-mode fibre and G.657.A1 bend-insensitive technology, this patch lead delivers exceptional performance while maintaining signal integrity even when routed through tight spaces or high-density installations.
Its durable 2.0mm PVC (OFNR) riser-rated jacket provides excellent flexibility, abrasion resistance, and long-term reliability for indoor fibre optic applications.
Ideal for modern network environments, this fibre patch cable supports 1G, 10G, 40G and 100G Ethernet connections, enabling high-bandwidth data transmission over long distances.
Features
- SC/APC to SC/APC simplex fibre optic patch lead
- OS2 9/125 single-mode fibre
- G.657.A1 bend-insensitive fibre technology
- Reduced attenuation when bent or twisted
- Supports 1G, 10G, 40G and 100G Ethernet networks
- Precision zirconia ferrules for low insertion loss
- High return loss APC connectors
- Durable 2.0mm PVC (OFNR) riser-rated jacket
- Ideal for high-density fibre installations
- Excellent performance in telecom and data networks
- Compliant with IEC-61754 and TIA-604 (FOCIS) standards
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
| Connector Type | SC APC to SC APC | Fibre Grade | G.657.A1 (Compatible with G.652.D) |
| Fibre Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Min. Bend Radius (Fiber Core) | 10mm | Min. Bend Radius (Fiber Cable) | 10D/5D (Dynamic/Static) |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fibre Count | Simplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
