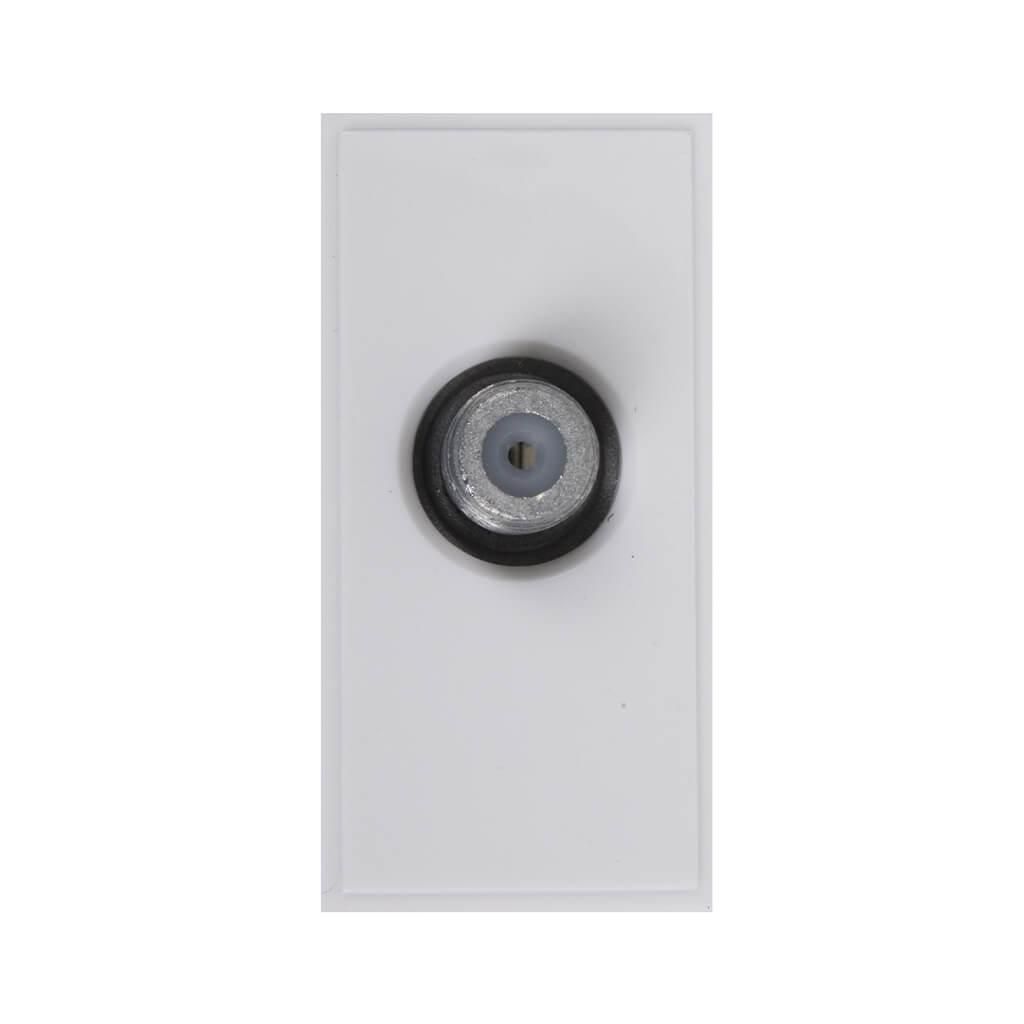

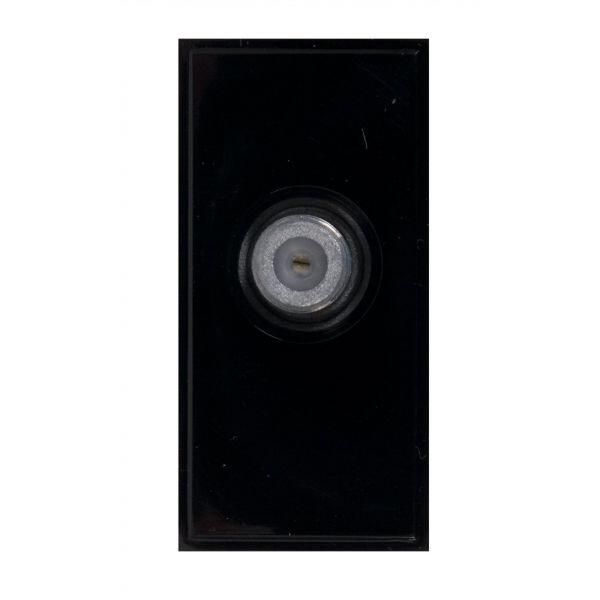

Triax Single F Module is a component used in audiovisual installations to provide an F-type connector connection. The F-type connector is commonly used for coaxial cables, particularly in applications such as cable TV, satellite TV, and antenna connections.
The Triax Single F Module typically consists of a single F-type connector mounted on a module. This module can be installed in compatible faceplates, wall plates, or patch panels designed to accommodate Triax modules.
The purpose of the Triax Single F Module is to provide a standardized and reliable solution for connecting coaxial cables with F-type connectors in audiovisual setups. By using this module, you can easily connect your coaxial cables to the F-type connector, ensuring a secure and high-quality connection for your cable TV, satellite TV, or antenna signals.
|Frequency Range SAT||5...2300 MHz|
|Through Loss IN-SAT||0.6 dB|
|Product Height||50 mm|
|Product Width||25 mm|
|Packaging Height||0,035 m|
|Packaging Width||0,030 m|
|Packaging Depth||0,055 m|
|Net Weight||0,047 kg|
|Tara Weight||0,010 kg|
|Total Weight||0,056 kg|
|Remarks||Screened Terminal and Clamp cable entry Fits 15mm Patress|
