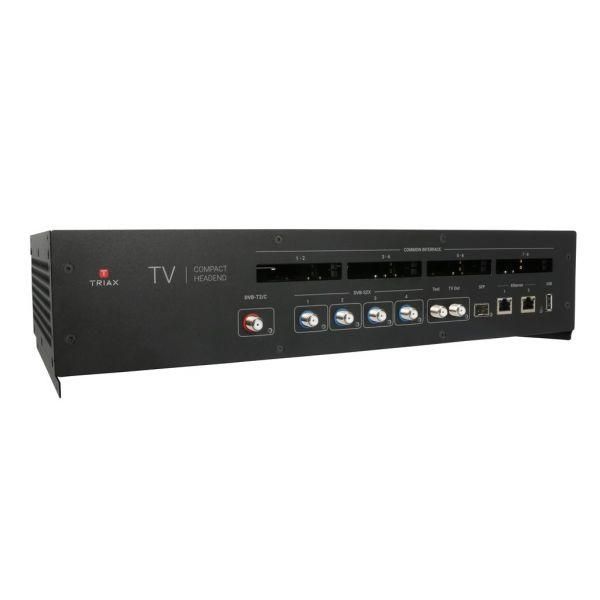

Triax 22STC-I
TDcH Compact Headend with CI Interfaces is a professional-grade digital TV distribution system designed for efficient signal processing, conversion, and centralised TV service delivery in hospitality, multi-dwelling units (MDUs), and commercial environments.
Engineered for flexibility and scalability, the TDcH headend converts multiple broadcast signals including DVB-S, DVB-S2, DVB-T, DVB-T2, and DVB-C into either QAM or COFDM output, making it suitable for a wide range of RF distribution networks.
Designed for both wall mounting and 19” rack installations, this compact system offers high-density performance with integrated tuners, modulators, and CI slots for secure and efficient service decryption.
Features
- DVB-S, DVB-S2, DVB-T, DVB-T2 & DVB-C input support
- Conversion to QAM or COFDM (switchable output)
- 16 DVB-S2X tuners for satellite signal processing
- 6 DVB-T/T2/C tuners for terrestrial and cable signals
- 16 QAM or COFDM modulators (switchable)
- 8 CI slots for centralised service decryption
- Supports centralised decryption of TV services
- Wall mount or 19” rack installation options
- Intuitive graphical user interface (GUI)
- Remote access and system management
- Easy installation and configuration
- LCN (Logical Channel Number) service management
2/3 days Delivery
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Inputs :16 x DVB-S/S2, 6 x DVB-T/T2/C Outputs : 16 x QAM/COFDM CI Slots x 8
- 4 x SAT IF inputs with integrated multiswitch
- 1 x Terr / Cable input with integrated splitter
- 16 x DVB-S2 tuners
- 6 x DVB-T/T2/C tuners
- 8 x CI interfaces
- 16 x QAM or COFDM full band modulators
- Electronically adjustable output level
- Suitable for adjacent channels
- Symbol rates and modulation individually adjustable
Multiplexing & IP pool
- TV-Service Multiplexing from all inputs at each output transponder to optimize available bandwidth
- TV-Service Multiplexing at the CA-modules to reduce the amount of CAM’s
Integrated Satellite Channel Router (SCR) multiswitch*
- Reception of up to 4 satellite positions with each 2 polarizations and 2 frequency bands
Transport Stream Processing
- Network Information Table (NIT) for complete headend station
- LCN (Logical Channel Numbering)
SID, TSID and ONID management
- To handle conflicts during multiplexing
- To handle changes if required
PID management
- To handle PID conflicts
- PID filtering to reduce audio channels from a TV service
- Distribute TV services multiple times with different languages
- In case of service changes to secure no new TV channel tune
EPG management
- To manage the amount of EPG-data distributed in an output transponder
- To support TVs with EPG data from all TV services without the need to retune all transponders
Service Filtering with the option for
- Remove unwanted services
- Remove services for minimizing data rate-
Real-time output load measurement
Dashboard
- System information and overview without login
HTML user interface via self-signed HTTPS
ORDER INFORMATION
| EAN Number | 5702664927826 |
CHARACTERISTICS
| Demodulator Type | DVB-S2X |
| Demodulator Symbolrate | 1...45 Msym/s |
| Input level | 44 – 90 dBμV dBµV |
| LNB current max. | 400 mA |
| LNB V/H programmable | 13/18 V/mA |
| LNB LO/HI programmable | 22 kHz |
| DiSEqC level | 1.0 |
| FFT mode DVB-T | 2k, 8k |
| FFT mode DVB-T2 | 1k, 2k, 4k, 8k, 16k, 32k |
| Constallations DVB-T | QPSK, 16QAM, 64QAM |
| Constallations DVB-T2 | QPSK, 16QAM, 64QAM, 256QAM |
| Code rates DVB-T | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Code rates DVB-T2 | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
| Guard Interval DVB-T | 1/4, 1/8, 1/16, 1/32 |
| Guard interval DVB-T2 | 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128 |
| Output Type | QAM/COFDM |
| Output QAM Modes | 16, 32, 64, 128, 256 |
| Output level adjustment | 10 dB |
| Output Level System | QAM 95 / COFDM 93 dBµV |
| Output symbol rate | 3,5...7,2 Mbit/s |
| Spurious Signals | > 60dB dB |
| MER | QAM>43 / COFDM>40 dB |
| Cable - symbol rate | 3.5...7.2 Mbit/s |
| Demodulator Viterbi Decoder | 1/2; 2/3; 3/4; 5/6; 7/8; automatically / manually |
| DVB-S2 Modes (8PSK) | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
| DVB-S2 Modes (QPSK) | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| DVB-S Modes (QPSK) | 1/2, 2/3, 3/4, 5/6, 7/8 |
| LNB band selection | DiSEqC 1.0 Control 13/18VDC and 22kHz |
| Max. Output level (@ full dig. load) | QAM 95 / COFDM 93 dBµV |
| Modulation scheme | QAM 16, 32, 64, 128, 256 |
| Output channel | S 21 – C 69 |
| Output level | QAM 85...95 / COFDM 83...93 dBµV |
| Satellite - demodulation | QPSK; 8PSK |
| Satellite transponders | 16 |
| Symbol rate DVB-S (QPSK) | 1...45 Mbit/s |
| Symbol rate DVB-S2 (8PSK) | 4.5...45 Mbit/s |
| Symbol rate DVB-S2 (QPSK) | 4.5...45 Mbit/s |
| Viterbi decoder | 1/2; 2/3; 3/4; 5/6; 7/8; automatically / manually |
| Test Point | -20 dB |
| Supported CAM Vendors | Aston, Neotion, SMARDTV, SMiT |
| Supported modules and cards | Conax: Canal Digital (Nordic), Telewizja (PL), T Home (HU) Cryptoworks: ORF (AT), UPC Direct (HU) Irdeto: ORF (AT) Nagravision: Canal Digital (NL), Canal+ (FR), Cyfra (PL), Cyfrowy (PL), Multicanal (ES), UPC, NDS, Viasat (Nordic + Baltic) Viaccess: Canal+ (FR), Eurosport (PL) |
| Transport stream | chip set prepared but not supported with SW1.0 |
CONNECTORS
| Number of inputs | 5 |
| Input Type | SAT-IF |
| Output connector | F connector |
| Connector - SFP cage | 1 x 1000 Base-T (SFP) |
| Connector SAT | 4 |
| External RF OUT | 1 x F connector 75 Ohm |
| Output connectors | 1 x F connector 75 Ohm |
| Output connectors (for RF) | 1 x F connector, 75 Ohm |
| Connector SAT-IF | 4 x F connector, 75 Ohm, 400 mA per input LNB power feed |
| SFP cage | 1 x 1000 Base-T (SFP) |
| USB port | USB 2.0, Type A con |
ELECTRICAL
| Impedance | 75 Ω |
| Number of RF outputs | 1 |
FREQUENCY
| Input frequency range | 950...2150 MHz |
| Output frequency range | 306...862 MHz |
| Channel Raster | 8 MHz |
| Channels | S 21 – C 69 |
| Number of channels | 16 channels in a row, single channel can be switched off |
| Satellite - frequency range | 950...2150 MHz |
RETURN LOSS
| Output Return Loss | >10 dB |
| Return loss SAT inputs | > 10 dB |
| Return loss (RF OUT) | > 10 dB |
OPERATIONAL
| CI slots | 8 x PCMCIA (front access) |
| AC Supply voltage | 100...264 VAC |
| Power Consumption (typ.) | typ. 35 max 90 W |
| Data rate | 83 Mbit/s |
| Ethernet Interface | 2 x 1000 Base-T (RJ 45) |
| DC Supply Voltage | 5 VDC |
| Temperature - operating | -10...+50 °C |
MECHANICAL
| Dimensions product (H x D x W) | 90 x 220 x 430 mm |
| Clips/Grounding strap | Ground clamp |
| Packing QTY | 1 |
