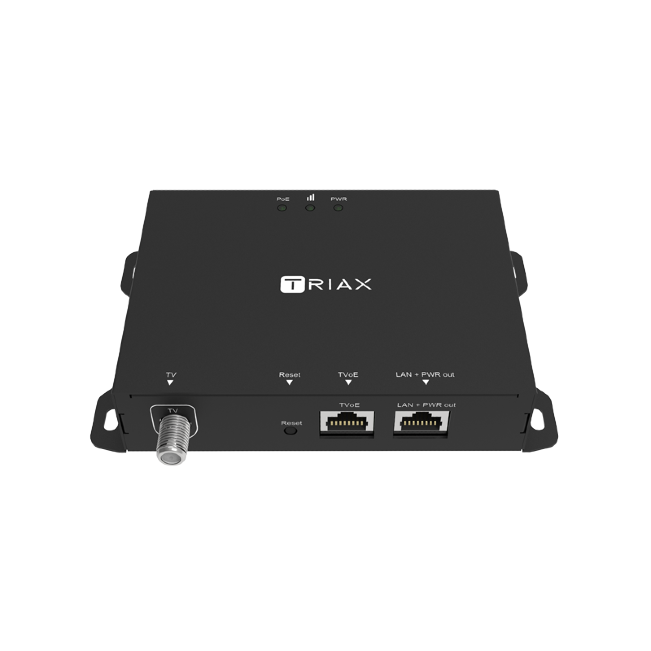

Triax RX+ Receiver
PoE TV over Ethernet Receiver with TV & LAN Output
Triax RX+ Receiver a professional **TV over Ethernet receiver** designed for installations where **Power over Ethernet (PoE)** is required to power local IP devices alongside TV signal distribution.
It receives combined **TV and internet signals over a single Ethernet connection**, while also supplying **48V DC PoE power** to compatible network devices such as IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af Class 3 equipment.
The TVoE-Rx+ is fully compatible with systems using a mix of standard TVoE receivers and “Plus” receivers, offering flexible deployment across hospitality, residential, and commercial TV distribution networks.
**When using TVoE-Rx+ units, a **larger 96W PSU must be used** to provide sufficient system power.
Features
- Receives combined TV and internet signals over a single Ethernet cable
- Integrated 48V DC PoE output for powering local IP devices
- Supports IEEE 802.3af Power over Ethernet (PoE) Class 3
- Delivers RF TV signal via F-type female output connector
- LAN + PoE output port for IP cameras, wireless access points, VoIP phones and network devices
- Compatible with both standard TVoE receivers and TVoE-Rx+ receivers on the same system
- Simplifies TV and network distribution using existing structured cabling
- Link status LED indicator for quick network diagnostics
- Power LED indicator for system status monitoring
- Factory reset button for easy maintenance and troubleshooting
- Ideal for hospitality, hotel, MDU, commercial and residential TV distribution systems
- Reduces installation costs by combining TV, internet and power over one cable
- Compact and professional design for discreet installations
- Reliable and stable signal transmission for TV and network services
- Requires 96W power supply when deployed in TVoE-Rx+ systems
2/3 Day Delivery
SKU: 310711
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Triax 310711 TVoE Receiver Plus is a high-performance endpoint device designed for the TRIAX TV-over-Ethernet (TVoE) ecosystem. It enables the delivery of both TV and internet data over a single Cat5/6 Ethernet cable. while also providing PoE (Power over Ethernet) output for additional local IP devices.
Ideal for modern residential, hospitality or multi-dwelling installations, the Receiver Plus expands the versatility of your distribution network by supporting extra powered devices like IP cameras, access points or VoIP phones right at the TV outlet.
- Combined TV + DATA input: The device accepts the incoming TV + internet signal via a LAN port — which carries the Ethernet data stream and 48 V DC PoE to power the receiver.
- LAN + PoE output: The 310711 adds a second LAN-out port with IEEE 802.3af (Class 3) PoE capability — enabling you to power a PoE networking device directly from the same cable that brings in the signal.
- Standard “F” female TV connector: Provides the TV signal output to the display.
- Status indicator lights: Link and power indicators display connectivity and power status.
- Factory reset support: A reset button (press/hold >10s) restores factory defaults.
- Long-cable support: The broader TVoE system enables TV signals up to ~100 m and gigabit data up to ~110 m, giving installers flexibility.
