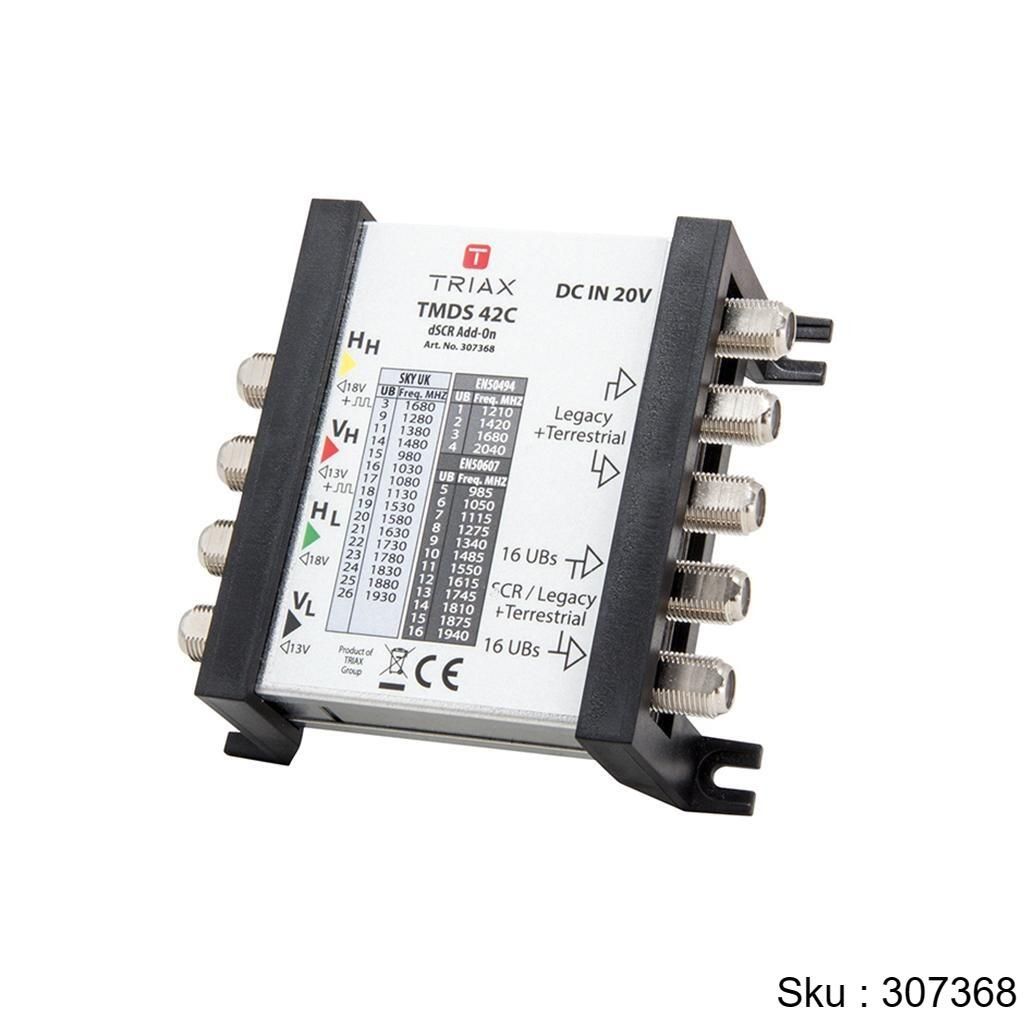

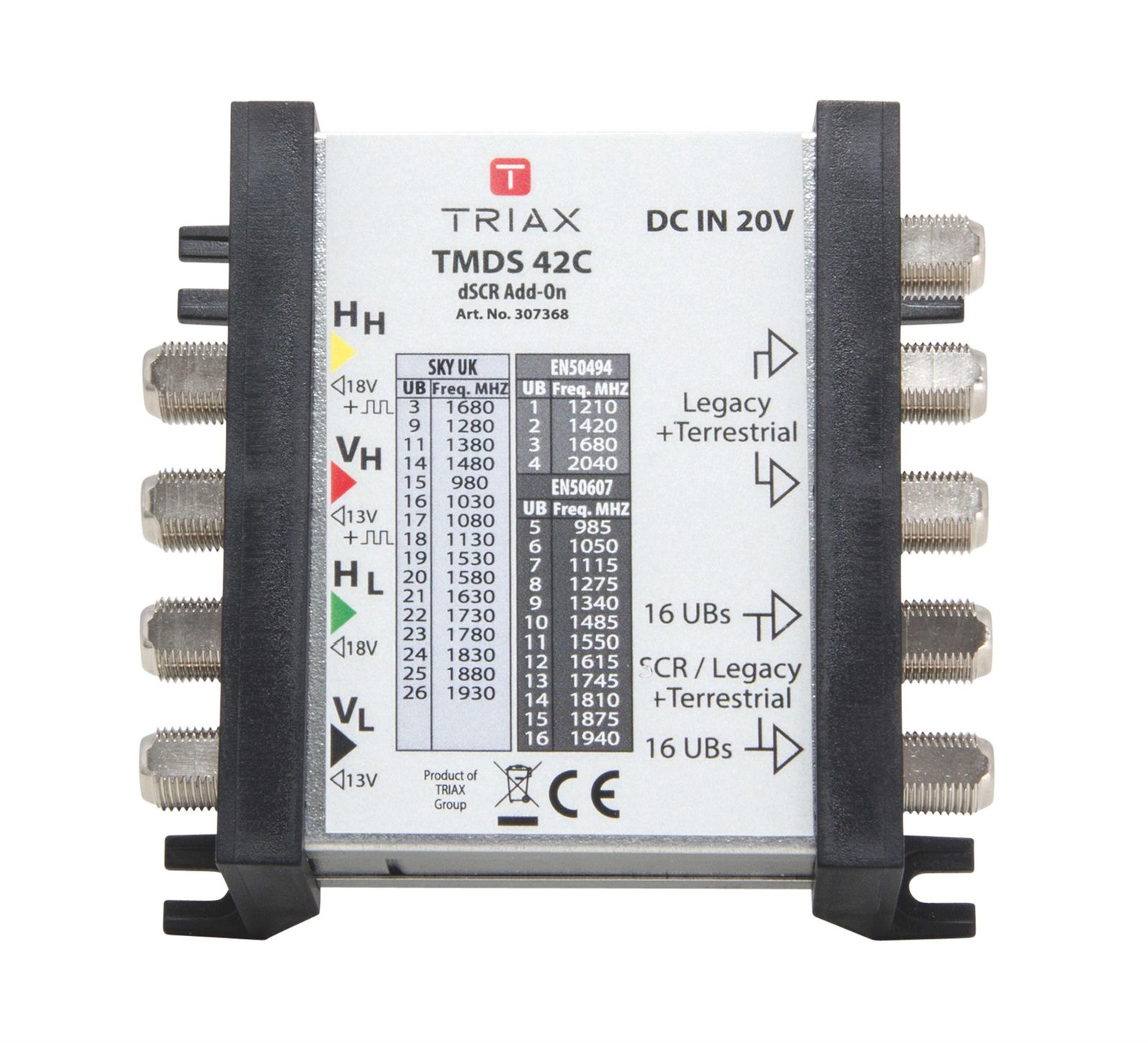

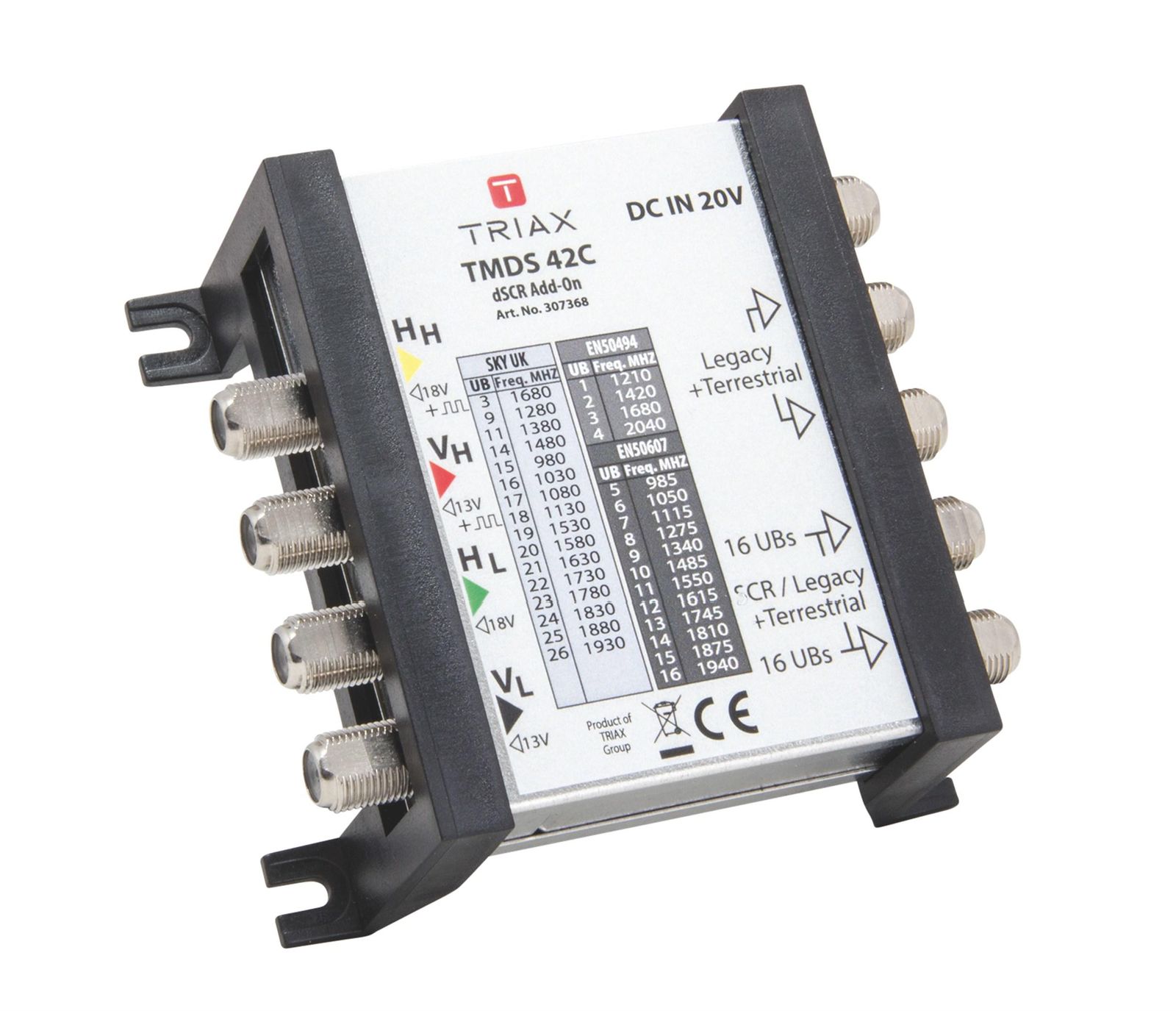

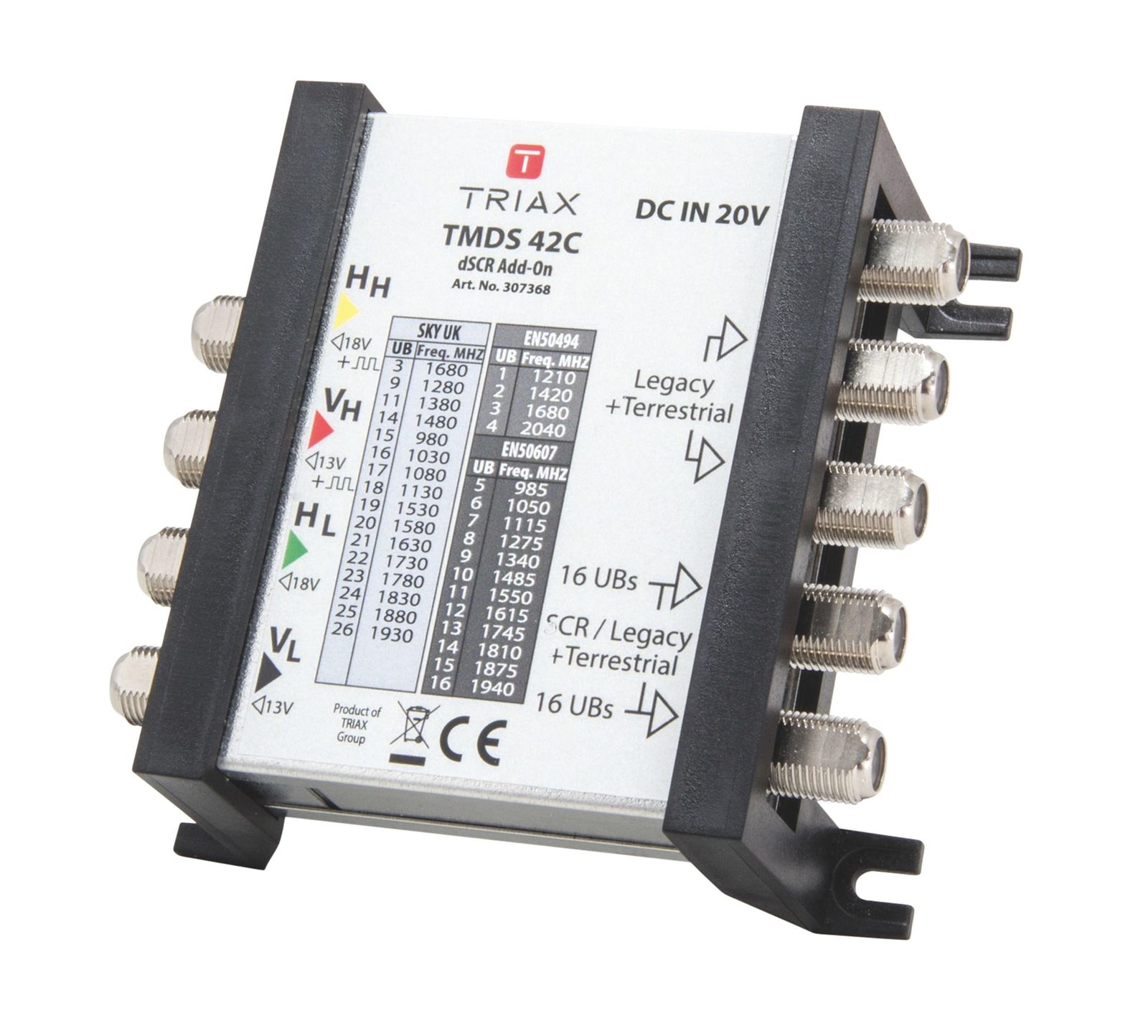

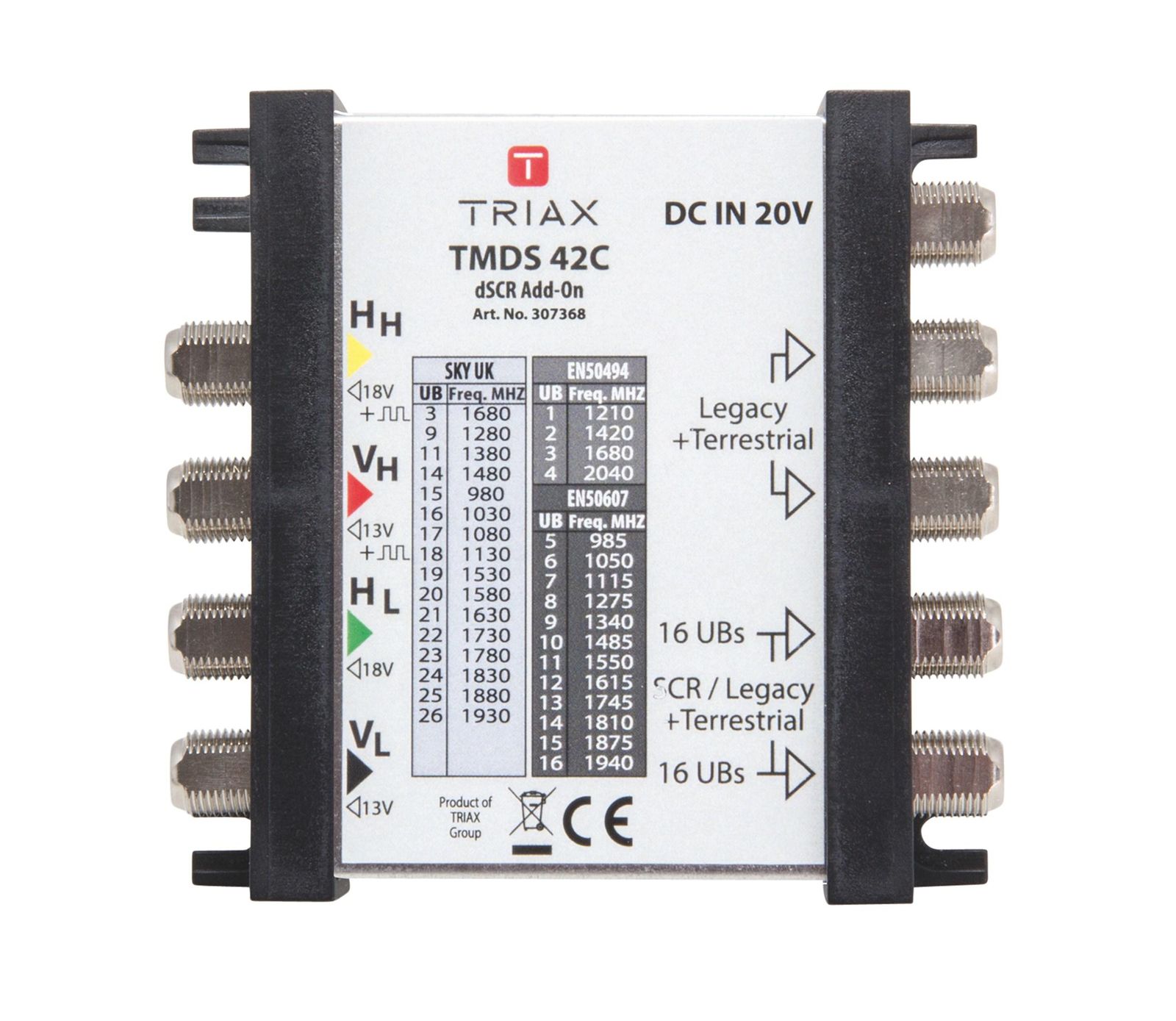

TMDS 42 C dSCR Multiswitch 307368
TMDS 42 C dSCR Multiswitch 307368
TMDS 42 C dSCR Multiswitch 307368
TMDS 42 C dSCR Multiswitch 307368
TMDS 42 C dSCR Multiswitch 307368
Triax United Kingdom

Triax TMDS dSCR Multiswitch

Mini dSCR stand-alone Multiswitch

  • External power supply required( 318167)
  • dSCR Multiswitch fits on to existing Multiswitches, Optical converters or can be used as a unique "stand alone" installation, offering a simple solution to Sky Q enablement.
  • Expands existing systems without complex re-balancing.
  • Provides 2 x Fixed Legacy outputs.
  • Provides 2 x dSCR or Legacy outputs.
  • Auto-detection Legacy / dSCR
  • Terrestrial, FM, DAB signal path
  • AGC
  • Quad / Quattro compatible
  • Ideal for SDU New Build or upgrade without the need to change existing LNB's or Multiswitches
  • SKU :- 307368


  • You might need a 20v PSU TMS1230


TMDS 42 C dSCR Multiswitch 307368

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Triax satellite DSCR multiswitch, also known as a satellite multiswitch with DSCR technology, is a device that is used in the satellite TV industry to distribute multiple satellite signals to multiple receivers. The device uses Demand Side Control Reserve (DSCR) technology to optimize the signal distribution and prevent signal loss or interference.

The satellite DSCR multiswitch allows satellite TV providers to distribute up to 2 satellite signals to multiple receivers without losing signal strength or quality. The DSCR technology uses intelligent switching to optimize the distribution of the satellite signals, so that each receiver always receives the strongest possible signal.

The DSCR multiswitch also has the added benefit of reducing the power consumption of the satellite TV system. It does this by only providing power to the satellite receivers that are currently in use, and switching off power to the receivers that are not being used. This reduces overall power consumption and helps to reduce the carbon footprint of the satellite TV system.

Installing a satellite DSCR multiswitch is relatively simple and can be done by a qualified technician. The multiswitch is typically installed at the point where the satellite signals enter the building and is connected to the satellite dish and the receivers using coaxial cables.

Overall, a satellite DSCR multiswitch is an essential component of any large-scale satellite TV system. Its advanced DSCR technology ensures optimal signal distribution and quality, while also reducing power consumption and environmental impact. If you are considering installing a satellite TV system, a DSCR multiswitch is definitely worth considering to ensure you get the best possible signal and efficiency

EAN Number5702663073685
Input levelmax. 65...95 dBµV
dSCR output level85 dBµV
Switch commands13 V / 18 V / 22 KHz
Frequency range TER40...790 MHz
Frequency range SAT950...2150 (@legacy) 950...2150 (@SCR user bands) MHz
Insertion loss (typ.)0 (@Legacy only ports) dB
Insertion loss - TER-4 dB
Insertion loss - SAT-10...20 (@SAT input to SCR - AGC) dB
Impedance75 Ω
DC Operating voltage12...20 VDC
DC Current consumption600 (@20Vdc) mA
PSU/adapter INFOOptional
PSU/adapter Art number300374
Temperature - operating-20...50 °C
Number of inputs4
Number of outputs2x Legacy fix + 2 x dSCR/Legacy autodetect
Number of SCR / STB per Output16
Colorcoding @IF/TER inputsVL=Black, VH=Red, HL=Green, HH=Yellow
Main materialSteel housing
Packing QTY1
Product Height92 mm
Product Length92 mm
Product Width40 mm
Packaging Height0,040 m
Packaging Width0,095 m
Packaging Depth0,095 m
Net Weight0,150 kg
Tara Weight0,015 kg
Total Weight0,165 kg
RemarksChannel plan of user bands: Sky UK, Sky Italia, Sky Germany
