Triax United Kingdom

Triax Triplexed TV / Radio / Sat Module

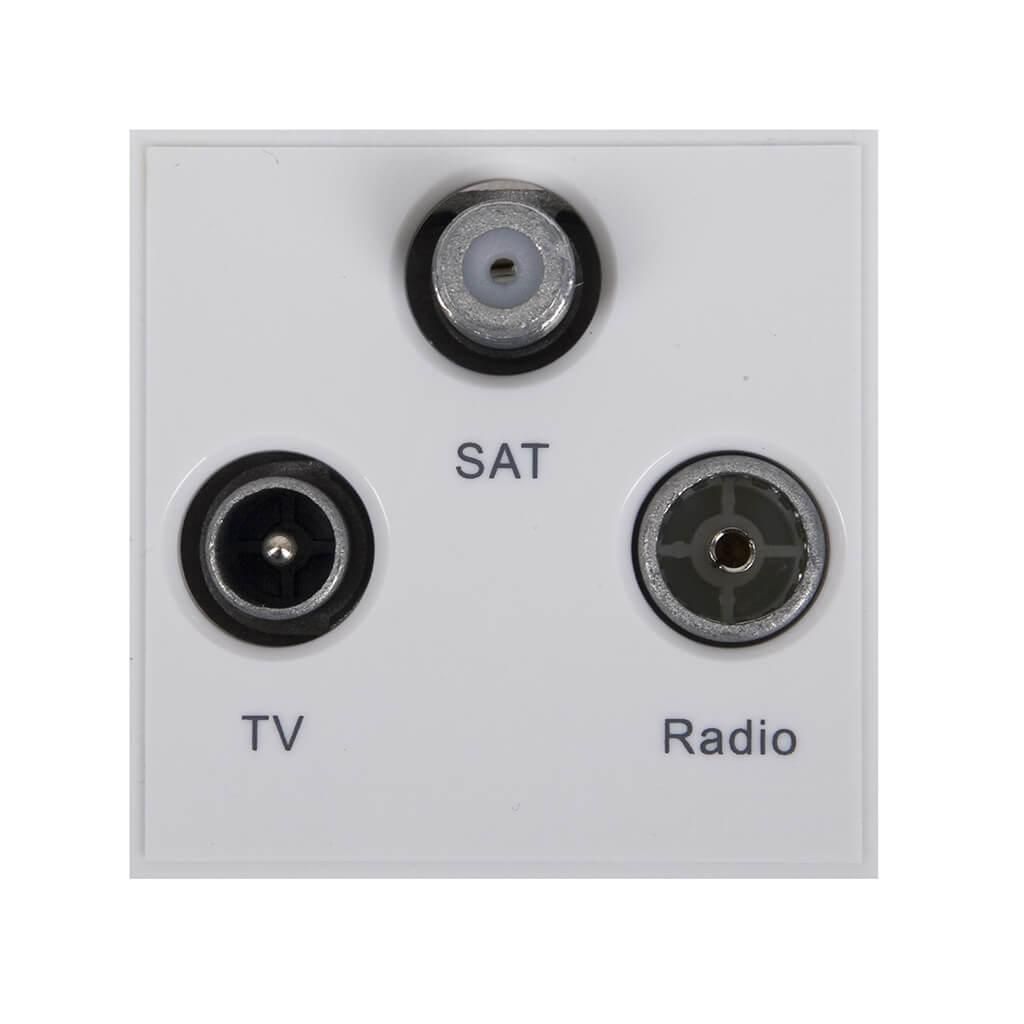

Triplexed TV/Radio/Sat Module White

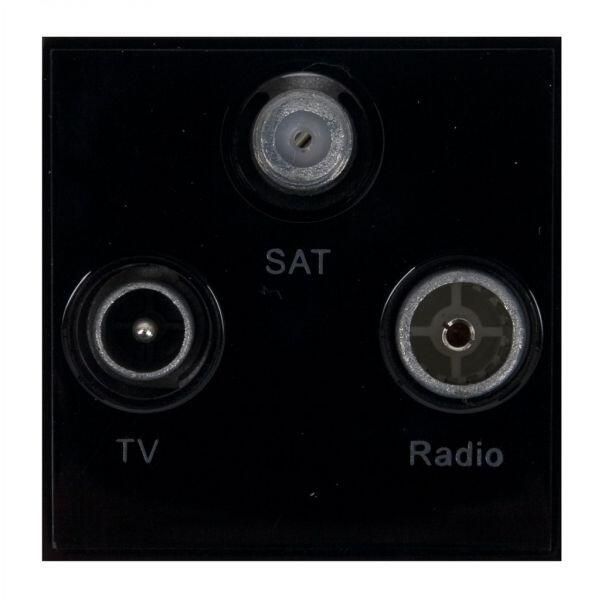

Triplexed TV/Radio/Sat Module Black
Triax United Kingdom

Triax Triplexed TV / Radio / Sat Module

Triax  (TV/Radio/Sat) Module White (50 x 50mm)

White - 304262

Black - 304263



Triplexed TV/Radio/Sat Module White

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Triax Triplexed TV/Radio/Sat Module is a specialized module used in TV and satellite installations to combine and distribute TV, radio, and satellite signals within a building or home. This module is designed to fit into a wall plate or outlet and offers convenient connections for coaxial cables.

Key features of the Triax Triplexed TV/Radio/Sat Module:

Triplexed Signal Distribution: The module allows for the simultaneous distribution of TV, radio, and satellite signals. It combines all three types of signals into a single output.

Coaxial Connections: The module features multiple coaxial connectors for connecting coaxial cables. These connectors are typically labelled for TV, radio, and satellite inputs and outputs, allowing you to easily connect your cables to the appropriate ports.

Signal Separation: The module ensures that the TV, radio, and satellite signals are separated and distributed to their respective outputs. This allows you to connect different devices, such as TVs, radios, and satellite receivers, to receive the specific signals they require.

Compatibility: The Triax Triplexed TV/Radio/Sat Module is designed to be compatible with standard coaxial cables and connectors commonly used in TV and satellite installations. This ensures that you can easily integrate the module into your existing setup.

Convenience: By using this module, you can centralize the distribution of TV, radio, and satellite signals, making it easier to manage and distribute these signals throughout your home or building.

EAN Number5702663042629
TypeUK Grid style, 50x50mm
Frequency Range FM87.5...230 MHz
Frequency Range TV47...68/470...862 MHz
Frequency Range SAT950...2300 MHz
Through Loss IN-FM3.0 dB
Through Loss IN-TV2.0 dB
Through Loss IN-SAT3.0 dB
DC Passthrough SATYes
Connector FMIEC-female
Connector TVIEC-male
Main materialPolycarbonate
Product Height50 mm
Product Width50 mm
Packaging Height0,040 m
Packaging Width0,055 m
Packaging Depth0,055 m
Net Weight0,090 kg
Tara Weight0,019 kg
Total Weight0,109 kg
RemarksScreened Single Terminal and Clamp cable entry Fits 15mm Patress DC througpower On SAT

PDFSpec Sheet
