- Triax TV / Radio / Sat Triplexed Outlet

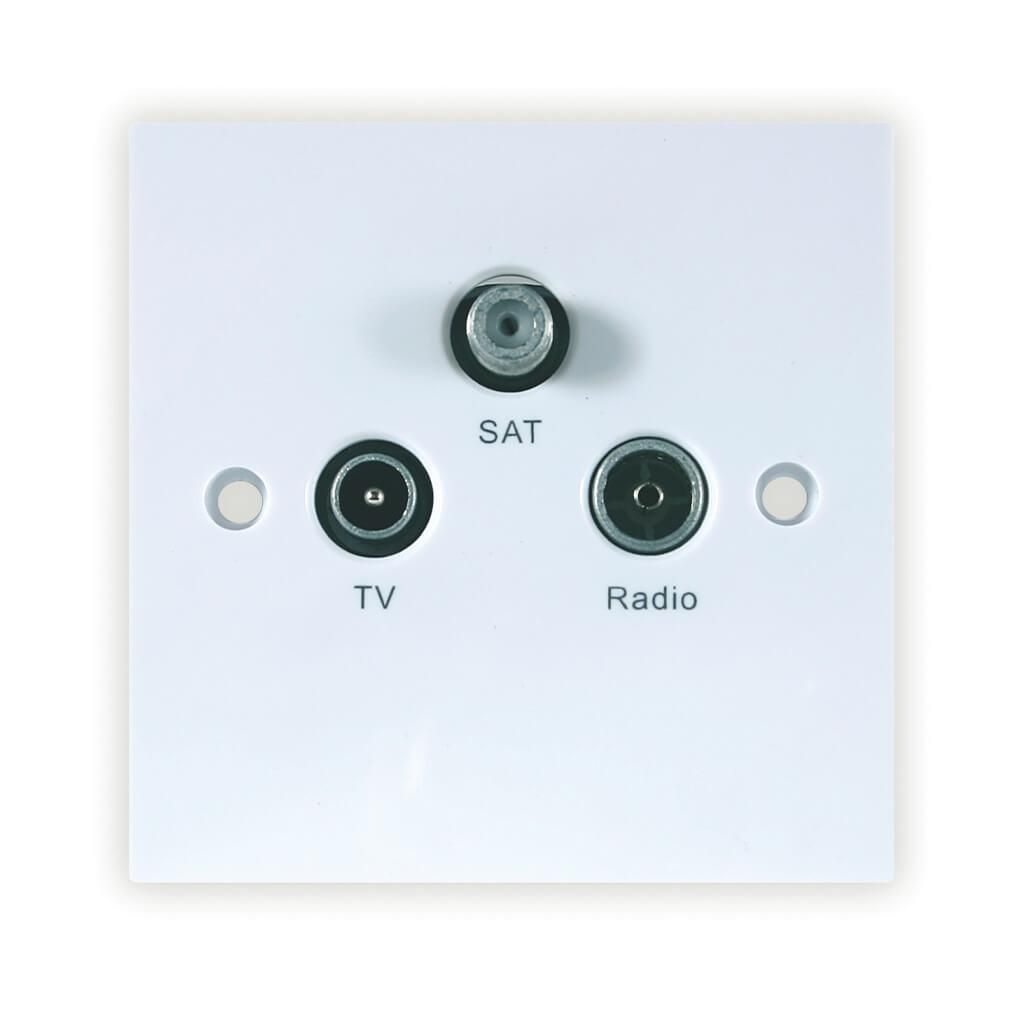

Triax TV / Radio / Sat Triplexed Outlet
TV/Radio/Sat Triplexed Euro Outlet features three separate outlets, each with its own F-type connector.
The TV and radio outlets are designed to distribute terrestrial broadcast signals, while the satellite outlet is designed to distribute satellite signals
- Triplexed (TV/Radio/Sat)
- Fully-screened
- UK style front plate
- Die-cast housing
- DAB compatible
SKU 304102

Share the love with your friend
Complete the form below and we'll email your friend about this product
You’ll earn 0 reward points with this purchase.
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Triax TV/Radio/Sat Triplexed Euro Outlet is a wall-mounted outlet designed to distribute television, radio, and satellite signals to multiple devices in a building.
It is commonly used in residential or commercial settings where there is a need to distribute multiple signal types from a single outlet.
The outlet is also designed to be compatible with Triax's triplexed cable, which combines the TV, radio, and satellite signals into a single cable for easy installation and management.
Triax TV/Radio/Sat Triplexed Euro Outlet is a convenient and efficient solution for distributing television, radio, and satellite signals to multiple devices in a building. Its compact design and compatibility with triplexed cables make it easy to install and manage, while its high-quality connectors ensure reliable and high-quality signal distribution.
EAN Number | 5702663041028 |
Type | UK Style - Single Gang |
Frequency Range FM | 87.5...230 MHz |
Frequency Range TV | 47...68/254...862 MHz |
Frequency Range SAT | 950...2150 MHz |
Through Loss IN-FM | <3.0 dB |
Through Loss IN-TV | <2.5 dB |
Through Loss IN-SAT | <3.0 dB |
DC Passthrough SAT | Yes |
Connector IN-OUT | Spring Clamp Termination |
Connector FM | IEC-female |
Connector TV | IEC-male |
Connector SAT | F-female |
Product Height | 86 mm |
Product Depth | 35 mm |
Product Width | 86 mm |
Packaging Height | 0,455 m |
Packaging Width | 0,260 m |
Packaging Depth | 0,505 m |
Packaging Volume | 0,060 m3 |
Net Weight | 0,138 kg |
Tara Weight | 0,035 kg |
Total Weight | 0,173 kg |
Remarks | Screened Die-Cast housing |
