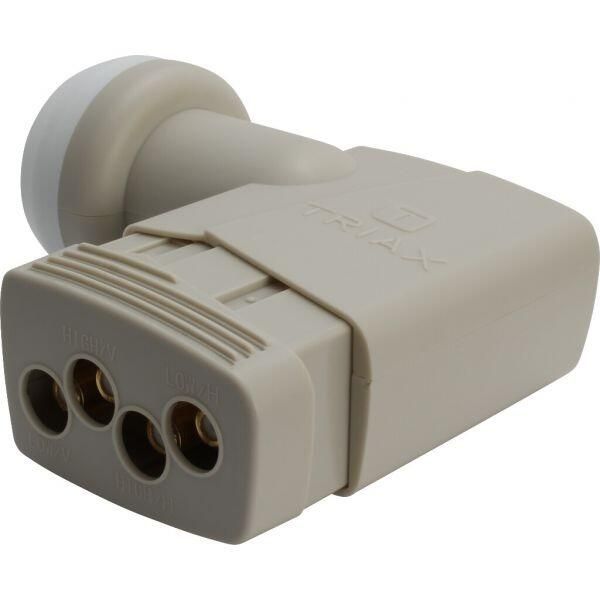

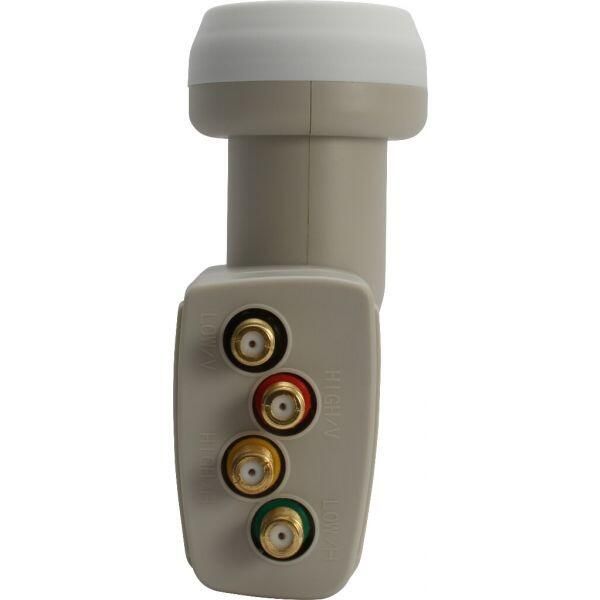

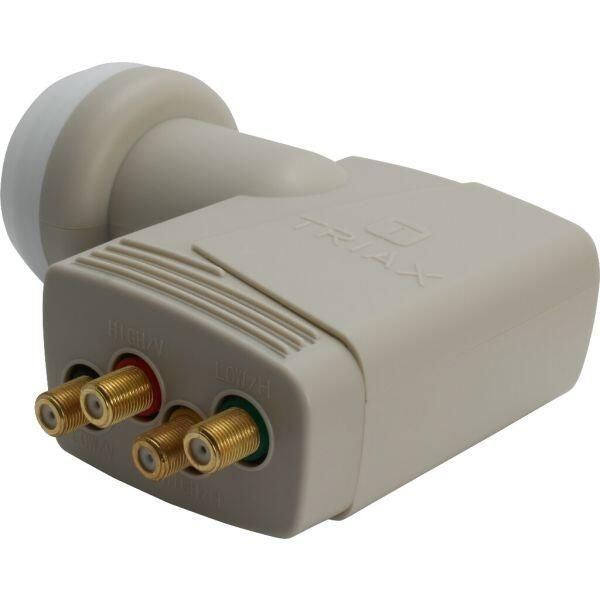

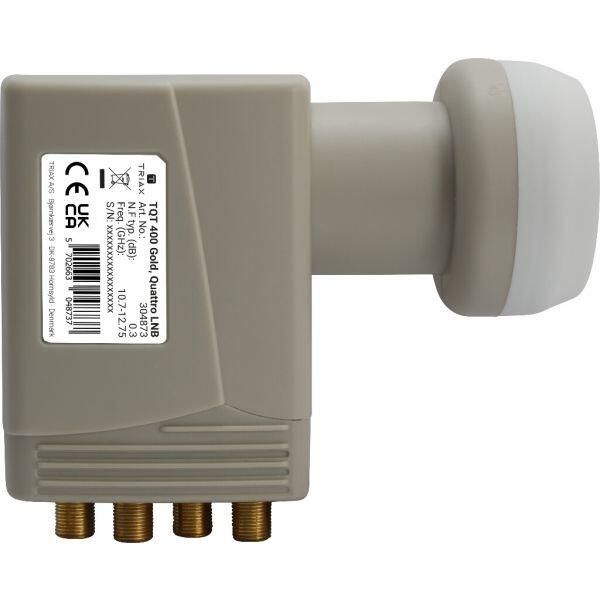

TRIAX Universal Quattro LNB

Universal Quattro LNB

TRIAX Universal Quattro LNB

  • Great quality, low footprint
  • Cutting edge RF technology
  • Excellent Cross polar isolation
  • Excellent low noise / low phase noise
  • High output / low power consumption
  • Weatherproof & qualified for harsh environments
  • Complete range of Single, Twin, Quad, Quattro and High Gain types
  • ADDITIONAL INFORMATION

    ORDER INFORMATION

    EAN Number5702663048508

    CHARACTERISTICS

    Phase noise @ room temperature - 1 kHz- 60 dBc/Hz
    Phase noise @ room temperature - 10 kHz- 80 dBc/Hz
    Phase noise @ room temperature - 100 kHz- 100 dBc/Hz
    Spurious level- 60 (max.) dBm
    Image rejection (min.)40 dB
    Output VSWR2.0:1
    Feedhorn diameterØ 40 mm
    LO temperature drifting± 3 MHz

    ELECTRICAL

    Impedance75 Ω

    GAIN

    Gain flatness (across 26 MHz segm)5 dB
    Conversion gain (typ.)55...65 dB
    Noise figure max.typ 0.3 dB

    ISOLATION

    Cross polarization isolation20 dB

    FREQUENCY

    Input frequency low band10.7...11,7 GHz
    Input frequency high band11.7...12.75 GHz
    Output frequency low band950...2150 MHz
    L.O. frequency low band9.75 GHz
    L.O. frequency high band10.6 GHz

    OPERATIONAL

    DC Current consumption195 mA
    Operating voltage vertical10.5...14.5 V/DC
    Operating voltage horizontal15.5...21.0 V/DC
    Temperature - operating-30...60 °C

    MECHANICAL

    Reflector typeOffset
    Packing QTY1
    Product Height130 mm
    Product Width45 mm
    Product Depth80 mm
    Packaging Height0.200 m
    Packaging Width0.090 m
    Packaging Depth0.062 m
    Packaging Volume0.046 m3
    Net Weight0.212 kg
    Tara Weight0.031 kg
    Total Weight0.243 kg
  • DOWNLOADS

    PDFSpec Sheet

  • EXTERNAL LINKS


SKUSKU: 304850
£13.91
£16.69
Inc VAT
