- Vision Outlet Plate SAT 1 / TERR / SAT2

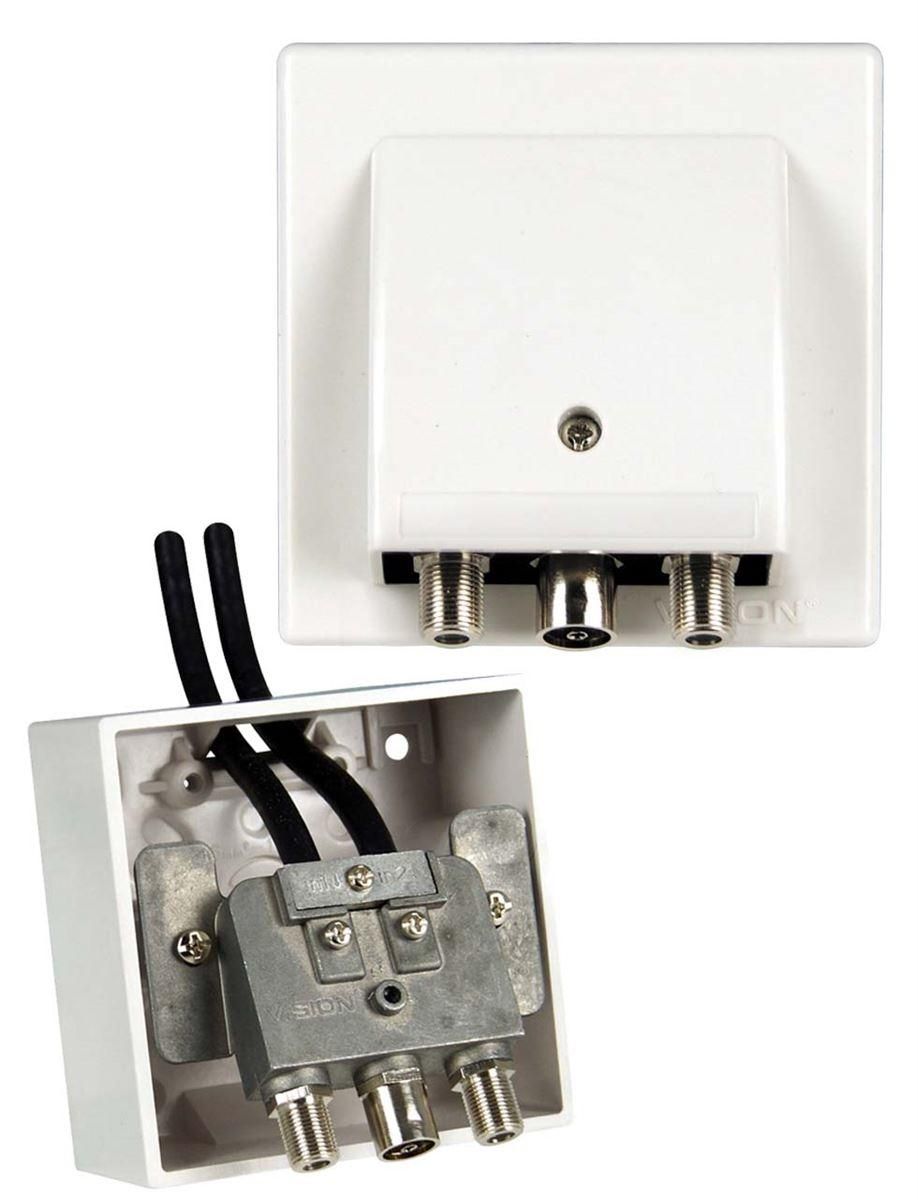

Vision Outlet Plate SAT 1 / TERR / SAT2
Slim n Fast is a revolutionary range of satellite, TV and radio wall sockets.
Designed for the professional to speed fitting and ensure a reliable connection every time, Slim n Fast leaves space for the fragile and bulky coaxial cable inside the box.
The screened diecast module fits in front of the plaster depth or pattress box to allow more room and an easier path for the cable.
This makes fitting easier, more reliable and avoids kinking the delicate coaxial cable for a smoother signal path and better performance. There are five models to choose from, including Single, Duplexed, Triplexed and Satellite Options.
Available in modern styling with an off-white/ivory moulded cover.
- Revolutionary Slim N FastTM Wall Sockets
- Faster and easier to fit than conventional types
- Allows ample room for cable in shallow plaster-depth and pattress boxes
- Reliable cable grip secured on cable sheath, not copper screen/dielectric
- High quality, fully screened with low insertion loss and good isolation
- Five models including, Single, Diplexed, Triplexed and Satellite options
- Modern styling with off-white/ivory moulded cover
Share the love with your friend
Complete the form below and we'll email your friend about this product
You’ll earn 0 reward points with this purchase.
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Vision V33-23PLUS Outlet Plate is a wall-mounted outlet designed to distribute television and radio signals to multiple devices in a building. It is commonly used in residential or commercial settings where there is a need to distribute signals from a single outlet to multiple devices.
The Vision V33-23PLUS Outlet Plate features a compact and durable design, with two separate F-type connectors for distributing TV and radio signals. The outlet plate also features a built-in amplifier, which helps to boost the signal strength and improve signal quality. Combines TV, radio, and satellite signals into a single cable for easy installation and management.
Overall, the Vision V33-23PLUS Outlet Plate is a convenient and efficient solution for distributing TV and radio signals to multiple devices in a building. Its compact design, built-in amplifier, and compatibility with triplexed cables make it easy to install and manage, while its high-quality connectors ensure reliable and high-quality signal distribution.
Attribute | Vision V33-23PLUS |
---|---|
Type | SAT 1 / TERR / SAT 2 (SAT VHF / UHF SAT) |
SAT 1 / TERR / SAT 2 (SAT VHF / UHF SAT) | 2 x F female 1 x IEC Female |
Inputs | 2 cables input 1 & 2 |
Input Frequency Range | 85-2150MHz |
Left Socket Frequency / Insertion Loss | 950-2150MHz <1.7dB |
Return Loss Left Socket | >12dB |
Centre Socket Frequency / Insertion Loss | 85-862MHz <1.2dB |
Return Loss Centre Socket | >12dB |
Right Socket Frequency / Insertion Loss | 5-2400MHz <1dB |
Return Loss Right Socket | >12dB |
Isolation Between Sockets | SAT1-TERR >27dB SAT-SAT2 >30dB |
DC Pass | YES SAT 1 & SAT2 |
Size | Standard single plaster or pattress box to BS4662 |
