Adastra Audio Products

Adastra 18u x 600mm Rack Cabinet

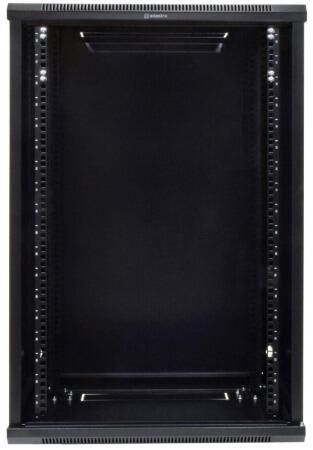

19" Rack-mount equipment with removable side panels and a lockable front door.

Adastra 18U x 600mm 19" Rack Cabinet is a robust and versatile solution for housing audio, AV, networking, and IT equipment. Constructed from cold-rolled steel with folded edges for added strength, this cabinet is designed for both commercial and residential installations where durability and security are essential.

Adjustable front and rear rack strips accommodate equipment with overhanging fittings or heavy units, while the cabinet’s epoxy powder-coated finish ensures a professional, long-lasting appearance. A lockable glass front door provides secure access, with two keys included for added convenience. Clip-in removable side panels allow easy access for maintenance and cable management.

Flexible installation options include free-standing or wall-mounted setups. Top and bottom knock-outs facilitate tidy cable routing, making this rack cabinet ideal for structured installations in AV rooms, data centers, broadcast setups, or professional audio environments.

Features

  • 18U x 600mm 19" rack cabinet
  • Constructed from cold-rolled steel with folded edges for strength
  • Durable epoxy powder-coated finish
  • Lockable glass front door with 2 keys supplied
  • Adjustable front & rear rack strips for flexible mounting
  • Clip-in removable side panels for easy access
  • Top and bottom knock-outs for cable feeds
  • Wall-mountable or free-standing
  • Easy assembly

Allow 2/3 day delivery

SKU: 953.618UK

Trade log in

£0.00
£205.48

QTY


adastra 19" 18U x 600mm Deep Rack Cabinet

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Adastra 19" Rack Cabinets. The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required.

The front door is removable and features a 5mm pane of tempered glass flanked by folded steel edge panels that can be mounted to open to either the left or the right.

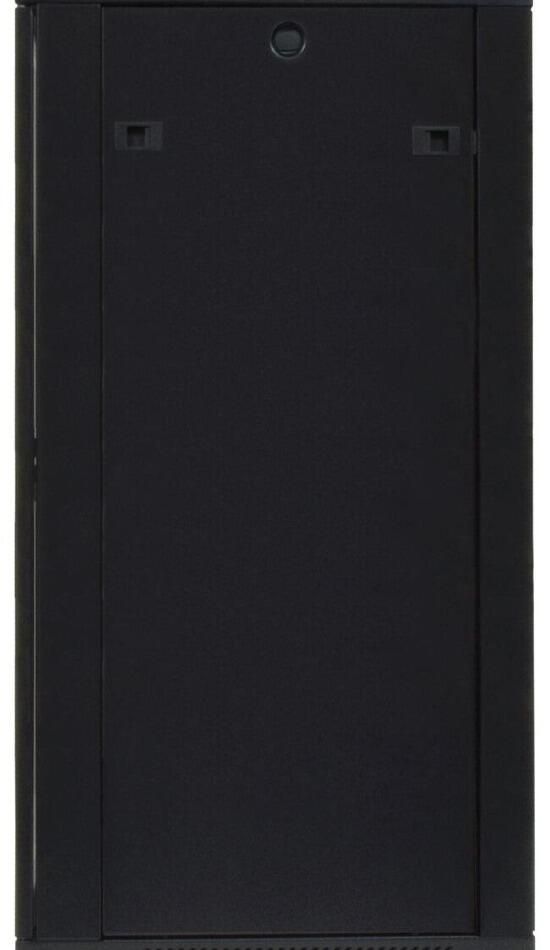

The rear panel has fixing apertures for wall mounting or the cabinet can be free-standing. Superbly designed, secure containment for professional rack installations.

  • Rack height: 800mm (18U)
  • Height: 897mm
  • Mounting depth: 500mm
  • Depth: 600mm
  • Material: 1.2mm cold-rolled steel & 5mm tempered glass
  • Finish: Epoxy powder coated RAL9004

In the Box

  • Top panel
  • Base panel
  • Front frame
  • Rear frame
  • Rear plate
  • 4 x rack strips (2 left + 2 right)
  • 4 side panel plastic locator studs
  • Glass door
  • Assembly hardware
  • Door lock + 2 keys
  • Rack mounting captive nuts & screws

PDFInstruction manual
