E-Mod CAT6 UTP PE Black Network Cable

CAT6 UTP PE - 305m

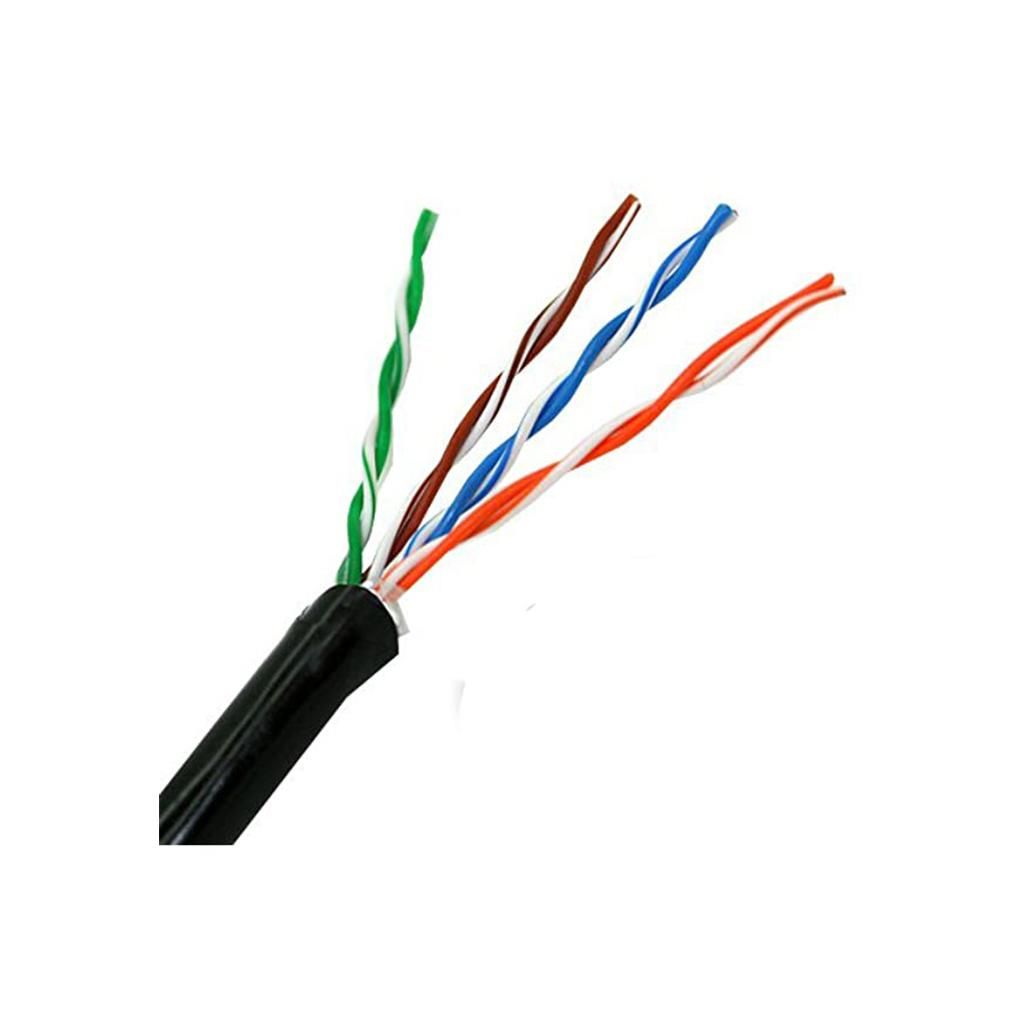

Cat 6 PE U/UTP EXT Ethernet Cable Reel conforms to the category 6 networking standard and is ideally suited for 10/100/1000 Gigabit Ethernet, Voice, Data, Video, and Multimedia applications. This unterminated CAT 6 cable comes In a 305m Box.

Features a Black PE EXT outer sheath and is fully compliant with ISO11801 2nd edition.

Constructed of only top quality materials, the CAT 6 cable reel delivers reliable performance and clean transmissions every time.

  • Conforms to the Category 6 (CAT 6) standards
  • Unterminated 305m Drum
  • Black (RAL9017) PE outer sheath
  • Solid annealed copper conductor, HDPE insulation
  • ANSI/TIA-568C.2
  • ISO/IEC 11801 2nd edition
  • EN50173-1 & EN50288-6-1
  • IEC 60332-1-2
  • RoHS 2002/95/EC
  • Conductor Solid Bare Copper


CAT 6 UTP PE Network Cable - 305M

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

CAT6 PE network cable AWG23 refers to a type of CAT6 Ethernet cable that has a polyethylene (PE) outer jacket and uses copper conductors with an American Wire Gauge (AWG) size of 23.

This type of cable is commonly used for high-speed Ethernet networking applications and is designed to meet or exceed the performance standards set by the TIA/EIA-568-B.2-1 specification.

The PE outer jacket is a type of plastic material that provides protection and durability to the cable. It is designed to be resistant to water, chemicals, and UV radiation, which makes it suitable for outdoor installations or harsh environments.

The copper conductors with AWG23 size can carry data at high speeds with low attenuation and crosstalk, which means that the signal remains strong and clear over long distances.

Overall, CAT6 PE network cable AWG23 is a reliable and high-performance choice for Ethernet networking applications.
