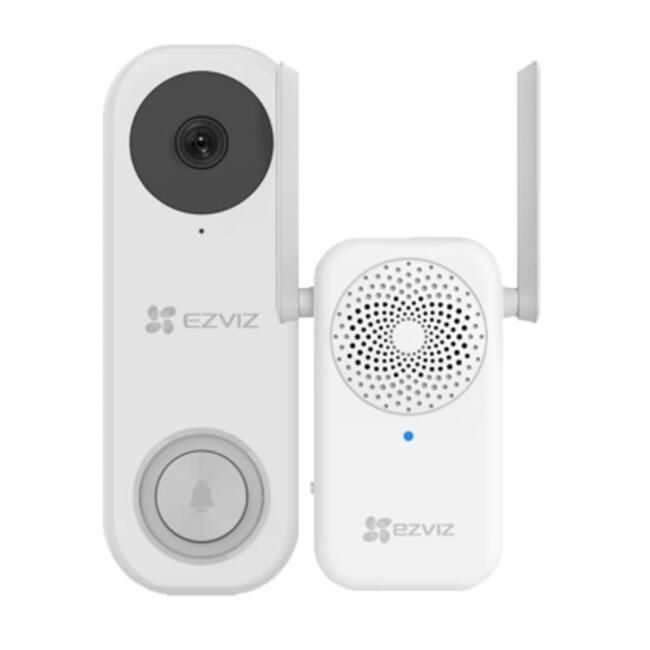

Ezviz DB1C Wi-Fi Video Doorbell


Ezviz DB1C Wi-Fi Video Doorbell

2mp Wi-Fi Video Doorbell & Chime

Enjoy high-quality video chat with visitors and keep an eye on what's happening at your front door right through your phone.

The DB1C is a powerful video doorbell with built-in artificial intelligence capability.

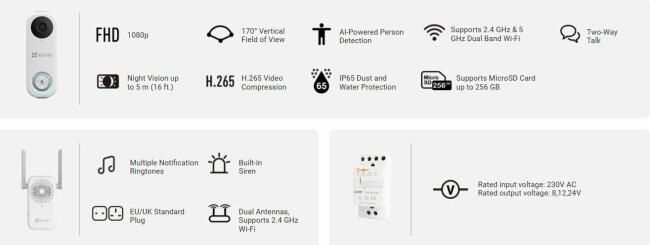

  • 2MP streaming
  • 2.4GHz & 5GHz H.265 Video Compression
  • 170º Vertical Field of View
  • Two-Way Talk
  • IP65
  • AI-Powered Person Detection
  • Night Vision up to 5m (16ft)
  • Supports MicroSD card up to 256GB

Ezviz DB1C Wi-Fi Video Doorbell Kit.jpg

Trade log in



DB1C Wi-Fi video doorbell kit

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

The DB1C delivers 1080p video, bringing the rich precision and extraordinary images you would expect from EZVIZ.

Person-detection enabled.

With its AI algorithm onboard, the DB1C intelligently detects a person’s movement, ensuring that you only receive notifications when people move by. You can turn off this function if you need other motion alerts such as those triggered by animals or cars.

Covers every inch, from head to toe.

Featuring a 170-degree vertical view, the DB1C reliably records everything you need to see. Even a package on the ground will be clearly captured.

Two-way talk.

When the EZVIZ App notifies you of a visitor at the front door, you can see and talk to the person right away, and from wherever you are.

Dual-band Wi-Fi connectivity.

Not all video doorbells support dual-band connectivity. The DB1C does, and it gives you the flexibility to choose between 2.4 or 5 GHz connections for optimal performance on your network.

Save money on storage and bandwidth

The DB1C doorbell features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the older H.264 video compression standard.

Fearless in any weather.

Rated with IP65 protection, the DB1C doorbell works reliably in rain, sleet or snow, bringing you peace of mind throughout the year.

Camera Parameters

  • Image Sensor     1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
  • Lens       2.0 mm @ F2.0, view angle: 176° (Diagonal)
  • Day & Night        IR-cut filter with auto-switching

Video Parameters

  • Max. Resolution               2000 × 1504
  • DNR       2D/3D DNR
  • Video Compression         H.265 / H.264
  • Frame Rate         Max: 15fps; Self-Adaptive during network transmission

PIR Sensor

  • Sensing Angle    100°
  • Sending Distance              Max. 5 m (16.4 ft)
  • Sensitivity           User adjustable (High, Medium and Low Sensitivity)


  • Audio Input        Built-in high-sensitivity microphone
  • Audio Output     Built-in high-power speaker
  • Reset button      Yes

Network Parameters

  • Protocol               EZVIZ Cloud Proprietary Protocol
  • Interface Protocol            EZVIZ Cloud Proprietary Protocol


  • Intelligent Alarm               PIR + human shape smart motion detection
  • Tamper Alarm    Sound and light anti-dismantling alarm (supports sending alerts to the smartphone)
  • Video Intercom Long-distance video two-way talk

Wi-Fi Parameters

  • Wi-Fi Standard  IEEE802.11b, 802.11g, 802.11n
  • Frequency Range             2.4 GHz ~ 2.4835
  • GHz Channel Bandwidth         Supports 20 MHz
  • Security                64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
  • Transmission Rate           11b: 11Mbps, 11g :54Mbps, 11n :150Mbps


  • Operation Conditions     -20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing)
  • Ingress Protection Grade              IP65
  • Weight 241.35 g (8.5 oz)
  • Size        150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch)
  • Battery Capacity               5200mAh rechargeable lithium battery
  • Power Supply    DC5V±10% 2APower Consumption       Max. 2W Chime
  • Size        100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch)
  • Power Supply    AC 110 ~ 240V
  • Wi-Fi Standard  IEEE802.11b, 802.11g, 802.11n
  • Ringtone              Supports 20 ringtones with adjustable volume levels
  • Audio Output     72 dB within 1 meter
  • Storage Supports microSD card up to 256 GB
  • Weight 120 g (4.2 oz)

In the box            - DB2 Video Doorbell

  • - Chime

  • - Mounting Plates
  • - Inclined Mounting Plates (2)
  • - Screwdriver and Screw Kits (2)
  • - Foam Sticker
  • - Plate Foam
  • - Drill Template
  • - Pin
  • - U-shaped Wire and Wire Connectors (3)
  • - Power Cable
  • - Quick Start Guide
  • - Installation Guide
  • - Regulatory Information
  • Certifications     UL / CE / FCC / REACH / WEEE / RoHS


PDFspec sheet
