Pyronix HomeControl Doorbell Kit

Pyronix Security

Pyronix HomeControl Doorbell Kit

Monitor, view & speak to visitors at any time, from anywhere.

Stay connected to home versatile, robust and convenient, the Pyronix HomeControl DoorbellCam is our new outdoor, wire-free doorbell camera that offers main-entrance protection and two-way communication.

The battery-powered doorbell camera comes with Full-HD video, 130-degree wide-angle view, motion detection, real [1] time notifications and push-to-talk function. With these helpful features, users can see exactly what’s happening on the doorstep and can answer the door, even when they’re not there.

Open the door to new sales opportunities with the Pyronix DoorbellCam


  • Full-HD, wide-angle view
  • Long-lasting battery life
  • Record, playback and save video footage
  • Live snapshot and capture
  • Hear real-time notifications at home with the DoorbellChime
  • HomeControl2.0 compatible


Pyronix HomeControl Doorbell Kit

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Home is in your smartphone

Receive real-time alerts from the front door straight to your mobile device and stay connected to home; never missing a visitor or delivery again.

With the DoorbellCam’s inbuilt mic and speaker, welcoming visitors and directing deliveries has never been easier, whether home or away.

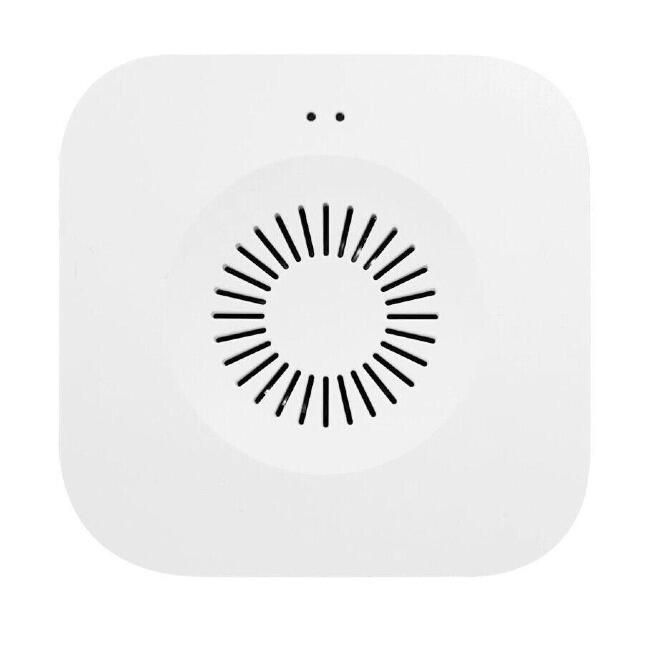

Hear real-time notifications at home Localised alerts are made possible with the DoorbellChime. The battery-powered (3 x AA– so no PSU required), audible chime has been designed for full audio coverage throughout the property, offering four levels of volume.

Up to four Chimes can be positioned within a property, so homeowners can remain assured they’ll always hear a caller.

Designed to make life safer and easier Detect the presence of unwanted strangers around the property and mask out nuisance alarms triggered by pets and other movement with the doorbell’s inbuilt PIR detector, which is configurable to five different levels of sensitivity for custom settings depending on environment.

HomeControl2.0 compatible

Monitor, see and speak with visitors straight from our HomeControl2.0 app. Experience seamless integration in properties with an existing Pyronix system or install as a stand-alone product.

The HomeControl2.0 app offers quick and easy set up via Wi-Fi. Simply pair the devices and set up is complete.

Long-lasting battery life

There’s no need to regularly charge the DoorbellCam with its large 6700 mAh battery. It can last up to six months on standby and between two and three months with wake up 10 times a day. Low battery notifications can be set to preference and the battery can be recharged using the included cable Live Snapshot and Capture Capture high-quality, Full-HD live photos and videos with the DoorbellCam.

Full-HD, Wide-Angle View

See, speak with and welcome guests with a 130 degree field of view and crisp 1080p HD video footage – even in low light with our automatic Night Mode.Record, Playback and Save Video Footage With an SD card inserted, attention-catching videos and photos can be saved, played back and examined. Our 32GB SD card, which can be purchased separately, allows users to record up to 3000 minutes of footage in local storage.

Easy Installation

As the DoorbellCam doesn’t require a 240VAC supply, it offers huge flexibility with installation. All fixtures and fittings are included with the product, so it can be installed wherever needed. It also features fast pairing with the DoorbellChime, operating through its own RF channel.


The DoorbellCam, Chime and SD card can be purchased separately or as a convenient, ready [1] to-install kit, saving you time on individual product ordering. Build a Smarter Home With our range of smart home products, like the SmartPlug, the DoorbellCam can be integrated to make life easier with helpful scenes and automations. Set up the home to automatically switch a light on if the doorbell is pressed at night and make it safer for your customers to reach the door.



  • Image Sensor 1/2.9'' 2Megapixel CMOS
  • Effective Pixels 1920(H) x 1080(V)
  • Shutter 1/15~1/10,000s
  • Min. Illumination Color 0.1Lux@F2.0,
  • Black/White 0.01Lux@F2.0
  • IR Distance Night visibility up to 10m
  • Day/Night Auto(ICR)/Colour/B&W
  • Lens & FOV(H/V/D) 3.2mm@F2.0, 106°/57°/130°

Video & Audio

  • Compression H.264
  • Bit Rate 32Kbps~2Mbps
  • Frame Rate 1~25fps
  • Dual Stream Yes
  • Audio Input/Output Built-in mic/speaker


  • Alarm Trigger Button triggering, PIR detection
  • Wireless Security 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Communication Protocol HTTP, DHCP, DNS, TCP/IP
  • Interface Protocol Private
  • Wireless 2.4G Wi-Fi (IEEE802.11b/g/n)
  • Mobile Phone OS iOS 9 or later, Android 5 or later
  • Security AES128
  • Max. User Access 4

Battery & PIR

  • Capacity 6700mAh rechargeable Li batteries
  • Stand-by Current 200-800 µA (average)
  • Working Current 150-200 mA (IR off)
  • Stand-by Time 10 months
  • Working Time 3 months (10 times wake up per day)
  • PIR Detection Range Max. 5m
  • PIR Angle 100°


  • Operating Temperature -20 °C to 50 °C
  • IP Rating IP65
  • Power Supply DC 5V/1A, AC 12~24V
  • Power Consumption Max. 2W
  • Storage SD card(Max.128GB)
  • Optional Accessory Wireless Chime
  • Dimensions 57 x 41 x 145 mm
  • Net Weight 200g
