Antiference HDMIE70V3P

70m 4K CAT6 extender with HDMI loop, auto-scaling & PoC

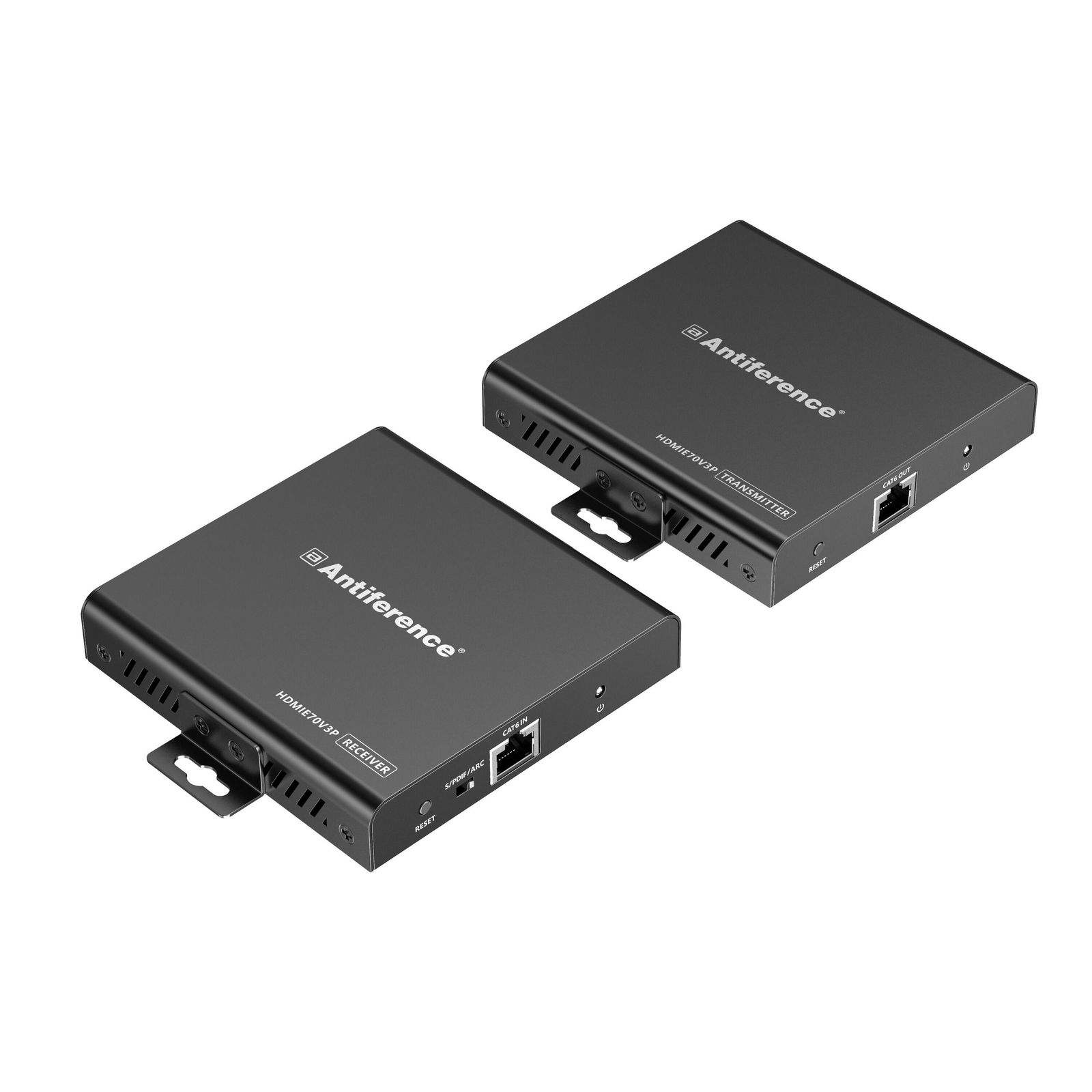

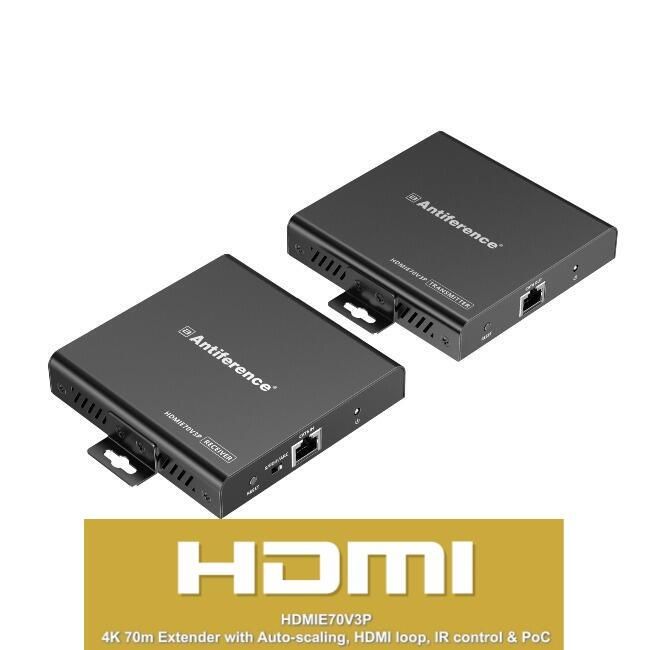

A slim HDMI extender for sending 4K or 1080p signals up to 70m over a single CAT6 with PoC.

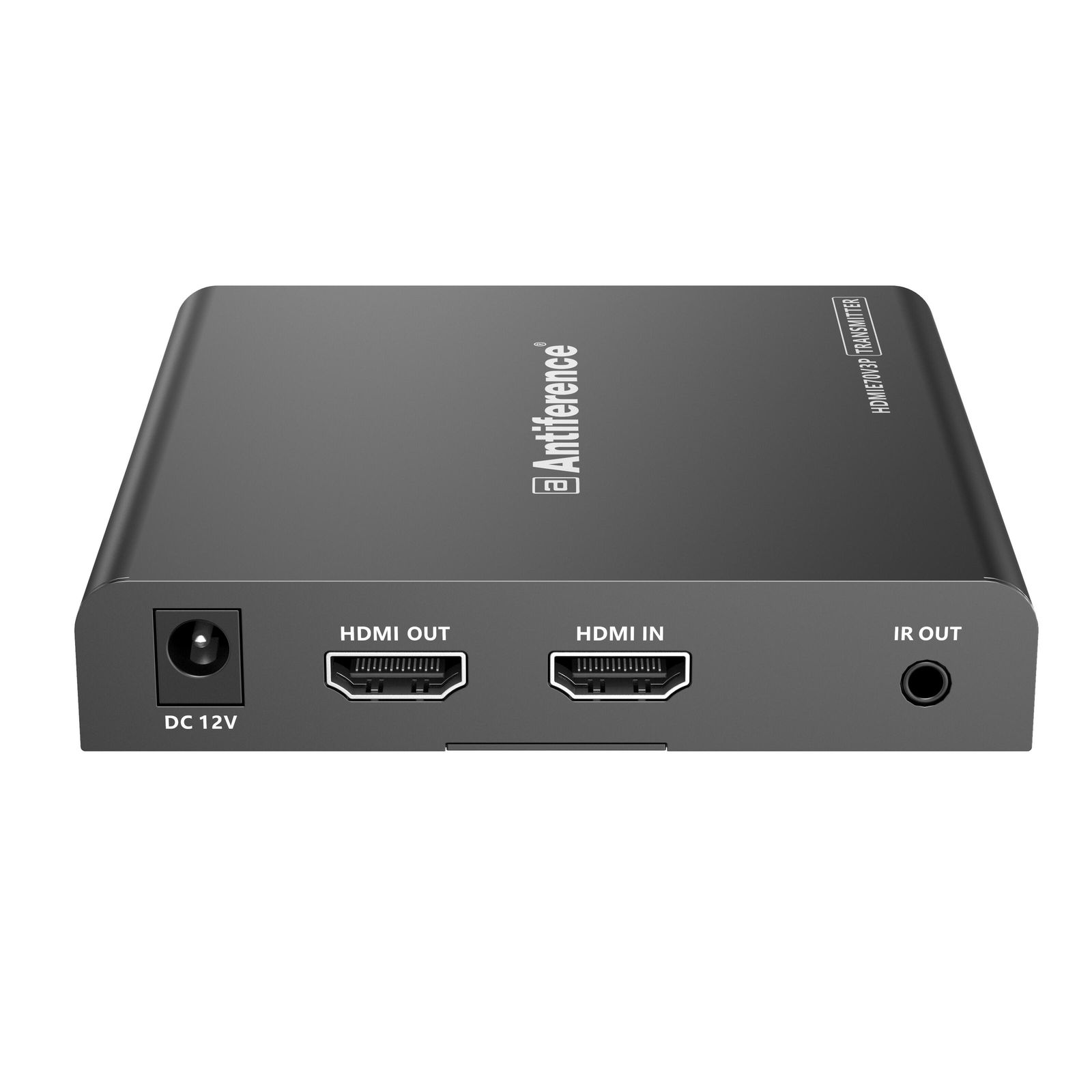

Features include an HDMI loop out on the transmitter for a local display, IR control to enable control of the source from the remote location and a PoC system enabling the receiver to be powered from the transmitter.

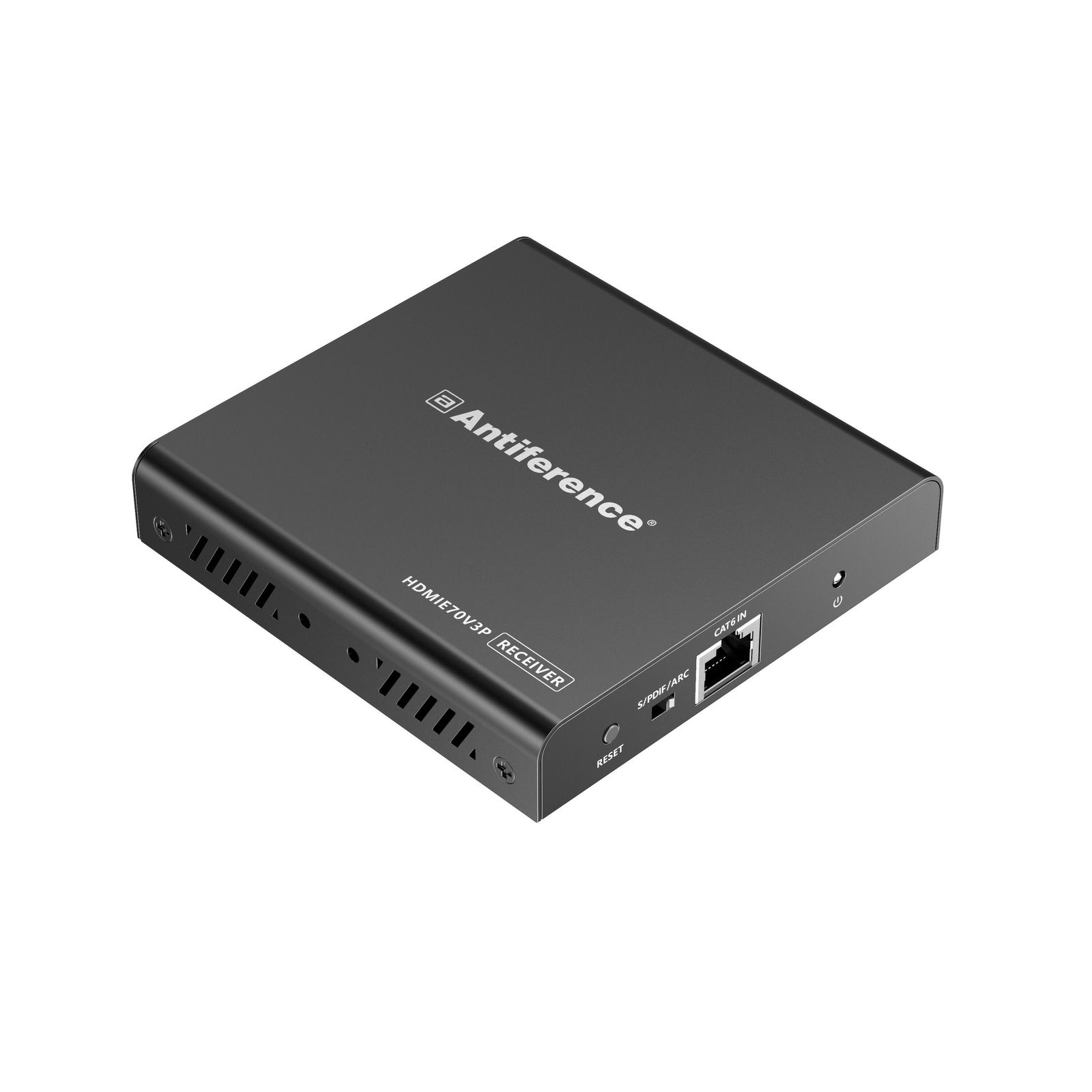

In addition there is an auto-scaling function in the receiver enabling the user to fit a 1080p display in the remote location whilst a 4K display can be connected to the HDMI loop out and both displays can receive video from a 4K source.

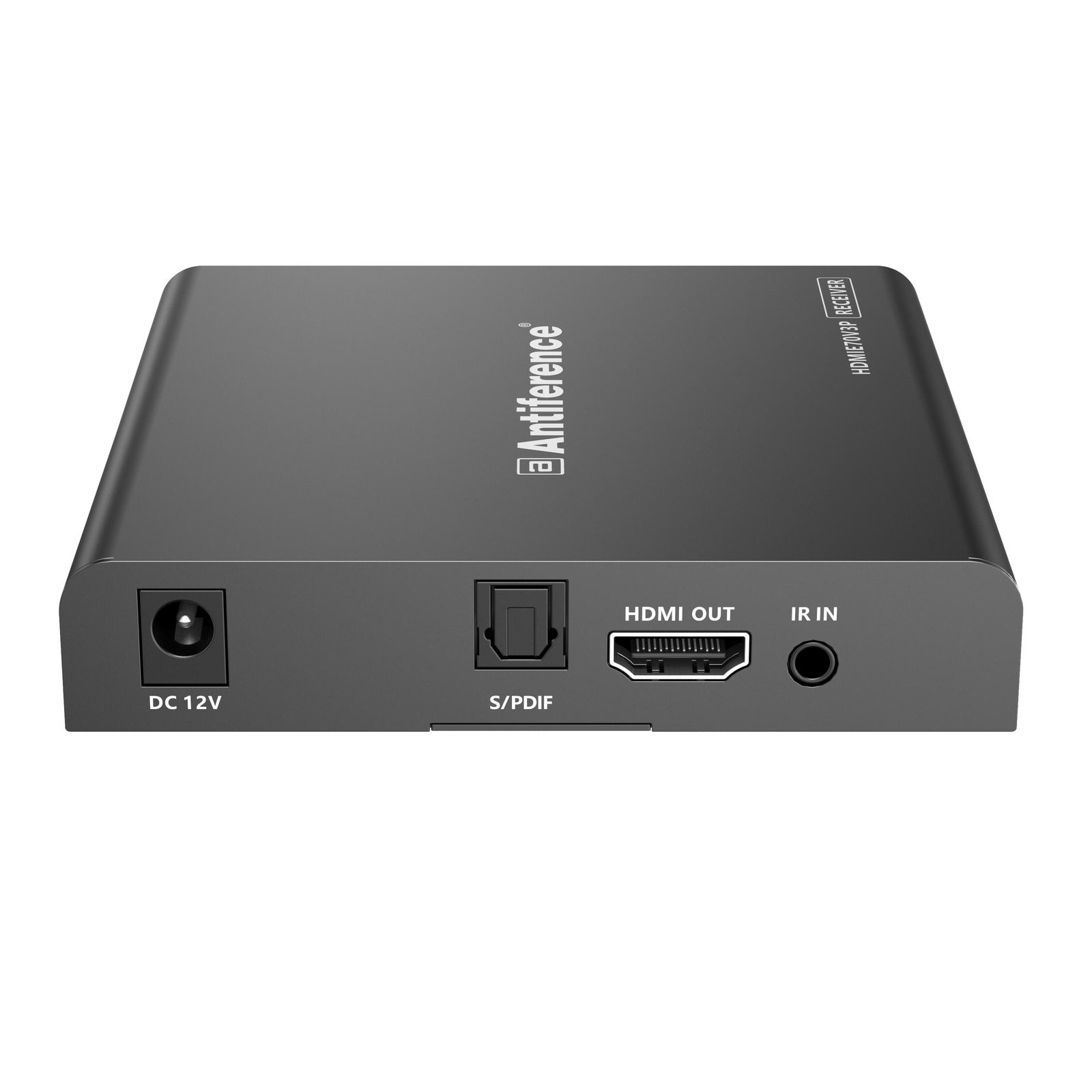

The receiver also has a dual audio option allowing the user to break the audio out via the S/PDIF (optical) port or the HDMI. There is a manual selector on the receiver for this function.


Antiference HDMIE70V3P.jpg


£0.00
£119.46

QTY


70M 4K CAT6 extender with HDMI loop, auto-scaling & PoC HDMIE70V3P

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

The Antiference HDMIE70V3P HDMI Extender 70m is a device that is used to transmit HDMI video and audio signals over long distances. It allows HDMI signals to be sent up to 70 meters (229 feet) over a single Cat5e/6 cable.

The extender is useful for applications where the source device, such as a Blu-ray player or set-top box, is located far away from the display device, such as a TV or projector. By using the extender, the HDMI signal can be transmitted over a long distance without losing quality or resolution.

The Antiference HDMIE70V3P HDMI Extender supports HDMI 1.3 and is compatible with a wide range of video and audio formats, including 1080p, 3D, and DTS-HD Master Audio. It features a compact and easy-to-install design, with plug-and-play functionality that requires no additional software or drivers.

When installing the Antiference HDMIE70V3P HDMI Extender, it's important to ensure that the Cat5e/6 cable is properly terminated and that the extender is connected correctly to both the source device and the display device. Additionally, it's important to ensure that the extender is powered using the included power supply to ensure proper operation.



PDFSpec Sheet
