Antiference Uk
Antiference HDMI0102SCAT HDMi Splitter£131.83
Labgear Products Uk.

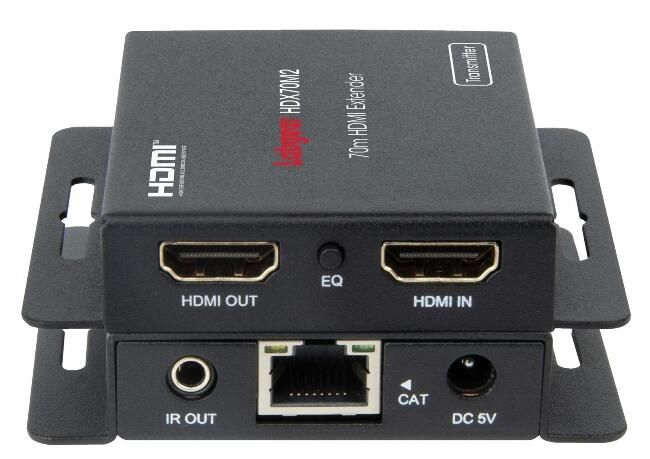

Labgear HDX70M2
High definition video/audio signal and IR control signal up to 70m
Labgear HDX70M2 HDMI Extender allows high-definition HDMI signals to be transmitted over long distances using standard Cat 6 or Cat 5e Ethernet cables. Supporting resolutions up to 1080p at zero delay, this extender delivers uncompressed video and high-quality audio for professional and home applications.
Equipped with an HDMI loop output, the HDX70M2 can be cascaded to additional extenders, allowing flexible installation in large setups. The device supports EDID copy (local or remote) and transmits audio formats including PCM7.1, Dolby True HD, and DTS HD, ensuring rich audiovisual performance.
Designed for versatility, it’s ideal for multimedia conference rooms, classrooms, digital signage, and large-screen displays. It supports HDMI 1.3, HDCP 1.4, and DVI 1.0 standards and can transmit video up to 4K2K@30Hz YUV 4:4:4. With a compact form factor, one-way IR transmission, and optional POC functionality, installation is simple and flexible.
Technical Specifications:
- Transmission Distance (1080p):
- CAT6: 70m / 230ft
- CAT5e: 50m / 197ft
- Supports video resolution up to 4K2K@30Hz YUV 4:4:4
- HDMI loop-out for cascading additional extenders
- EDID copy support (local or remote)
- One-way POC (Power over Cable) functionality
- One-way IR signal transmission
- Audio support: PCM7.1, Dolby True HD, DTS HD
- HDMI 1.3, HDCP 1.4, DVI 1.0 compliant
SKU :- HDX70M2
£0.00
£47.87
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

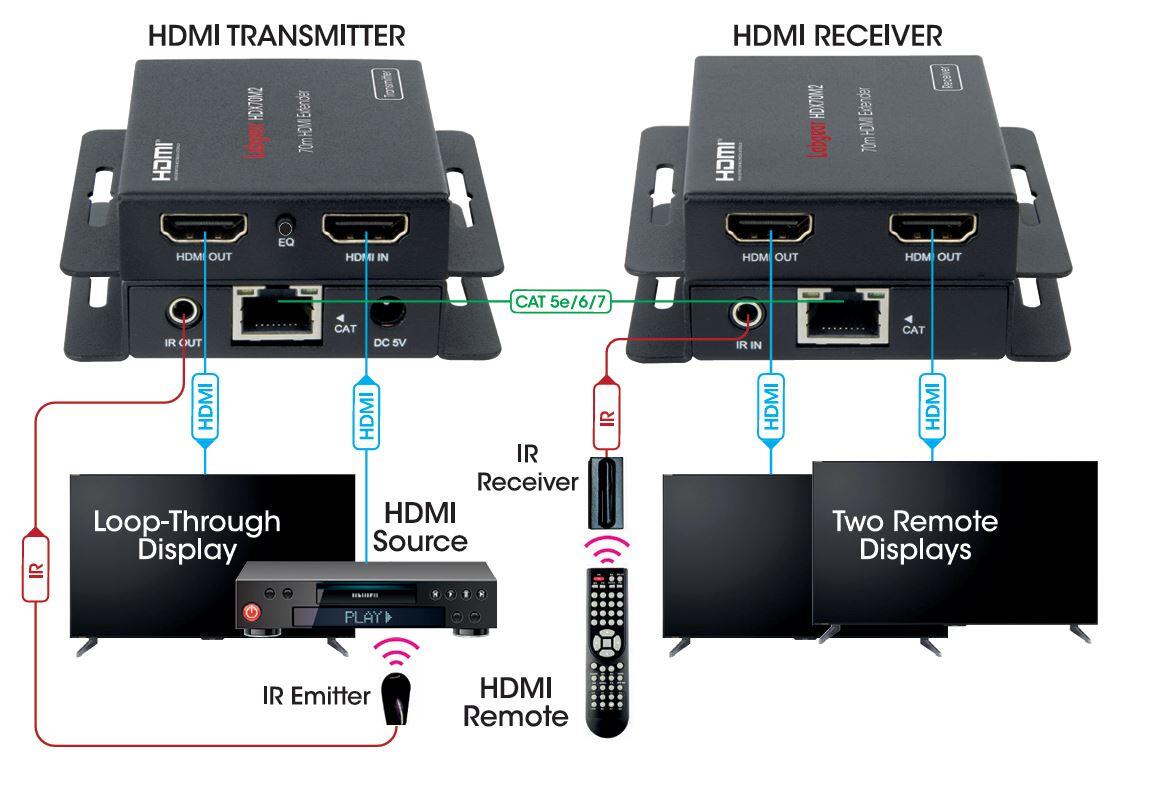

HDMI extender over Cat 6 is a device that allows you to transmit HDMI signals over long distances using Cat 6 Ethernet cables.
Here's how it works:
HDMI signal is inputted into the transmitter unit of the extender.
The transmitter unit converts the HDMI signal into a form that can be transmitted over Ethernet cables.
The Ethernet cables are then used to transmit the signal from the transmitter unit to the receiver unit of the extender.
The receiver unit converts the Ethernet signal back into an HDMI signal and outputs it to the display device.
Some of the benefits of using a 1.4 HDMI extender over Cat 6 include:
Long-distance transmission: You can transmit HDMI signals over much longer distances than with a standard HDMI cable.
Reduced signal degradation: Ethernet cables are better at reducing signal degradation over long distances, resulting in a better overall signal quality.
Cost-effective: Using Ethernet cables is often more cost-effective than using long HDMI cables.
Features:
Extend HDMI signals over long distances via Cat6/Cat5e cables
Zero-delay, uncompressed 1080p video transmission
Cascadable via HDMI loop-out for flexible setups
EDID copy for optimal display compatibility
Supports advanced audio formats (PCM7.1, Dolby True HD, DTS HD)
Compact design for easy installation in any AV setup
Ideal for Freesat, Freeview, Sky Q, Sky HD, DVD, NVR, DVR, and multimedia displays

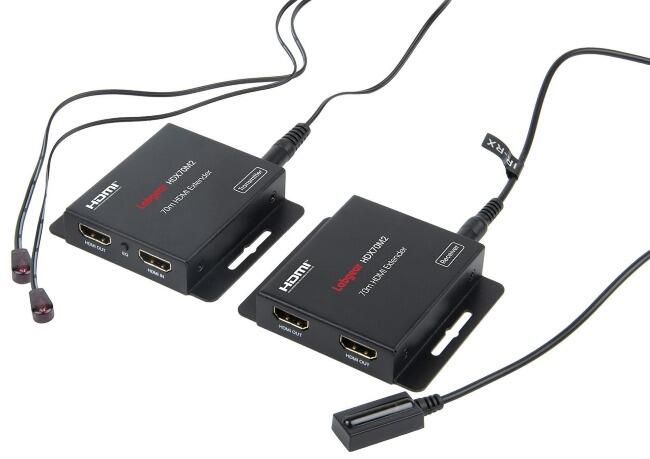

Kit contains:
1 × HDMI Transmitter
1 × HDMI Receiver
1 × IR Blaster Cable (1.5 meters)
1 × IR Receiver Cable (1.5 meters)
1 × 5v 1A DC Power Adapter
2 x Velcro Strips
1 × User Manual
Labgear HDX70M2
Spec Sheet
