Hikvision DS-7604NXI-K1/4P

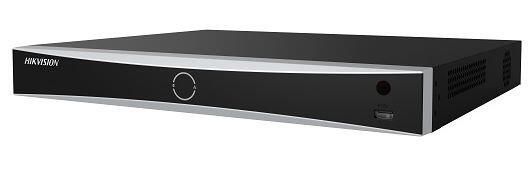

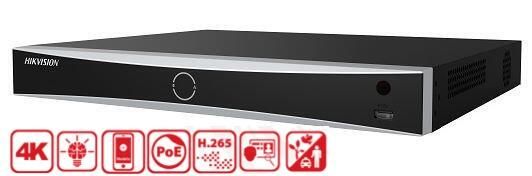

Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR
Hikvision Products

Hikvision DS-7604NXI-K1/4P

4-ch PoE 1U K Series AcuSense 4K NVR

  • Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth

Smart Function

  • All channels support Motion Detection 2.0
  • 1-ch video analysis for human and vehicle recognition to reduce false alarm
  • 1-ch facial recognition for the video stream, or 2-ch facial recognition for a face picture
  • Smart search for the selected area in the video, and smart playback to improve the playback efficiency

Professional and Reliability

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service

HD Video Output

  • Provide simultaneous HDMI and VGA outputs
  • HDMI video output at up to 4K resolution

Storage and Playback

  • Up to 1 SATA interface for HDD connection (up to 10 TB)
  • 4-ch synchronous playback
  • Network & Ethernet Access
  • 4 independent PoE network interfaces
  • 1 self-adaptive 10/100/1000 Mbps Ethernet interface
  • Hik-Connect for easy network management7604_Nxi




Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Hikvision DS-7604NXI-K1/4P is a network video recorder (NVR) manufactured by Hikvision, a leading provider of video surveillance products.

The DS-7604NXI-K1/4P is designed for small to medium-sized surveillance systems and offers advanced features for efficient video management.

Channels: It is a 4-channel NVR, which means it can support up to 4 IP cameras for video recording and management.

PoE Ports: The "4P" in the model name indicates that it has four Power over Ethernet (PoE) ports. These ports allow you to connect and power PoE-enabled cameras directly, eliminating the need for additional power adapters or injectors.

Compressions: The NVR supports the H.265+ video compression standard, which helps reduce bandwidth and storage requirements without compromising image quality. It is also compatible with H.264 and other video codecs.

Resolution: The DS-7604NXI-K1/4P can handle IP cameras with resolutions of up to 12 megapixels, allowing for high-resolution video capture.

Storage: It supports up to 1 internal SATA hard drive for local storage. You can install a hard drive of your choice to store recorded footage.

Network Connectivity: The NVR has built-in Ethernet ports for network connectivity, allowing you to connect it to your local network for remote access and management.

Video Outputs: It features HDMI and VGA video outputs, enabling you to connect a monitor or display for live viewing and playback.

Mobile Access: Hikvision provides mobile apps (such as Hik-Connect and iVMS-4500) that allow you to access and view your surveillance system remotely from your smartphone or tablet.

Other Features: The DS-7604NXI-K1/4P offers various advanced features such as motion detection, event recording, video playback, video backup, and support for Hikvision's Hik-Connect and iVMS-4200 software for centralized management.

  • PRODUCT TYPE  Recorder
  • CHANNELS          4
  • MAX RECORD RESOLUTION         4K
  • POE PORTS         4
  • MAX HDD CAPACITY        Up to 8TB
  • ALARM IN/OUT N/A
  • AUDIO IN/OUT  4/1
  • CODEC  H.265+
  • MONITOR OUTPUTS       HDMI/VGA
PDFSpec Sheet
PDFNVR Manual
