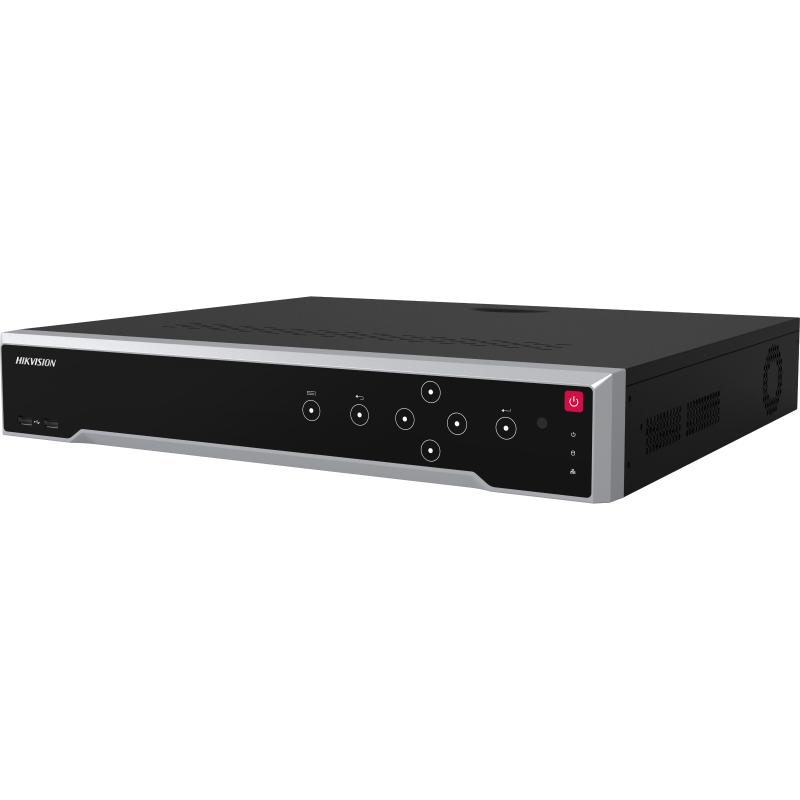

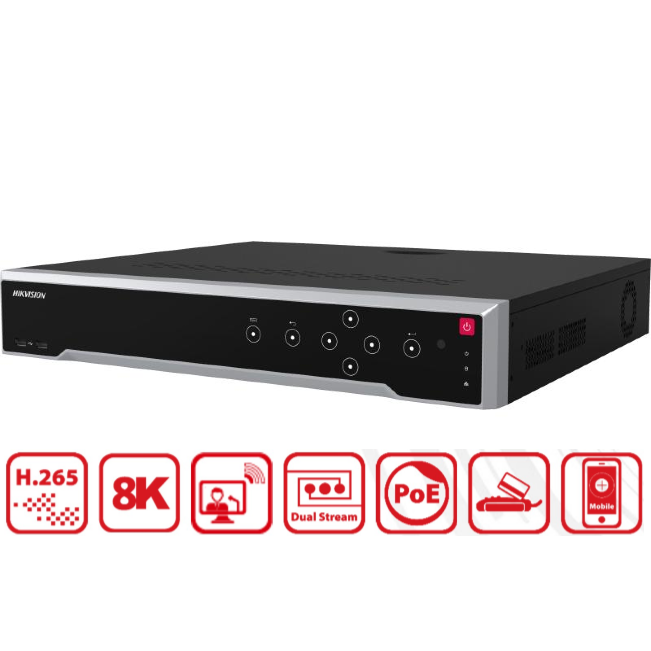

Hikvision DS-7716NI-M4/16P

M Series 8K NVR

  • 16-ch 1.5U 16 PoE 8K NVR
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 16-ch IP camera inputs
  • Up to 16-ch@4 MP decoding capacity
  • Up to 256 Mbps incoming bandwidth

Professional and Reliability  H.265+ compression effectively reduces the storage space by up to 75%  Dual-stream recording saves bandwidth  Adopt stream over TLS encryption technology which provides more secure stream transmission service  Support double verification for playback and downloading HD Video Output  Provide independent HDMI and VGA outputs  HDMI video output at up to 8K resolution  Dual 4K HDMI output resolution Storage and Playback  Up to 4 SATA interfaces for HDD connection  16-ch synchronous playback Smart & POS Function  Support multiple VCA (Video Content Analytics) events  Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting  POS information overlay on live view and playback, and POS triggered recording and alarm Network & Ethernet Access  16 independent PoE network interfaces  1 self-adaptive 10/100/1000 Mbps Ethernet interface  Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management  Smooth streaming technology  Support web access without plug-in








Please login for pricing


Hikvision DS-7716NI-M4/16P

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Hikvision DS-7716NI-M4/16P is a network video recorder (NVR) designed for use in professional surveillance systems. It can support up to 16 IP cameras and is capable of recording video in up to 4K resolution.

Some of the key features of the DS-7716NI-M4/16P include:

16 PoE (Power over Ethernet) ports for easy installation and setup of IP cameras

H.265+ compression technology for efficient storage and bandwidth usage

Up to 160 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth

HDMI and VGA video outputs for local display

Up to 4 SATA interfaces for storage expansion

Remote access via a web browser or Hik-Connect app

Overall, the DS-7716NI-M4/16P is a robust and feature-rich NVR that is suitable for a wide range of surveillance applications.

Specification

Video and Audio

IP Video Input

16-ch Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP

IP video inputs.

Incoming Bandwidth 256 Mbps

Outgoing Bandwidth 256 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×

1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×

1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×

768/60Hz

Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output

CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format H.265+/H.265/H.264+/H.264

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/

2CIF/CIF/QCIF

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP

IP video inputs.

Synchronous Playback 16-ch

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25

fps)/16-ch@4 MP (30 fps)

Dual-Stream Recording Support

Stream Type Video, Video & Audio

Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Remote Connection 128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power ≤ 200 W

Standard IEEE 802.3 af/at

RAID

RAID Type N/A

Auxiliary Interface

eSATA 1 eSATA interface

SATA 4 SATA interfaces

Capacity Up to 14 TB capacity for each disk

Serial Interface 2 RS-485 (half-duplex), 1 RS-232

Alarm In/Out 16/9

USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be

turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

DC 12V 12 VDC, 1 A power output

General

Power Supply 100 to 240 VAC, 50 to 60 Hz

Consumption ≤ 15 W (without HDD and PoE off)

Working Temperature -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity 10% to 90%

Chassis 19-inch rack-mounted 1.5U chassis

Dimension (W × D × H) 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

Weight ≤ 5 kg (without HDD, 11 lb.)

Certification

FCC Part 15 Subpart B, ANSI C63.4-2014 CE

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
