Hikvision Security UK

Hikvison iDS-7216HQHI-M1/XT

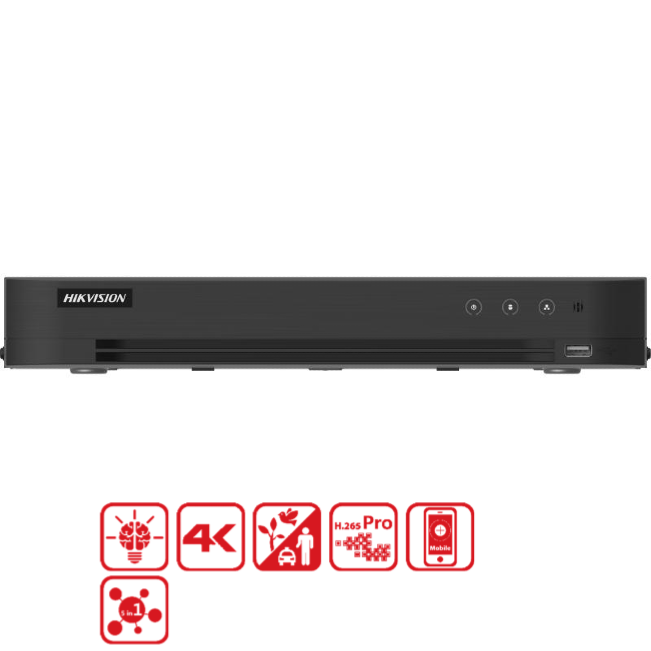

Hikvison iDS-7216HQHI-M1/XT Supports up to 16 channels of video input, allowing you to connect multiple cameras to the DVR.

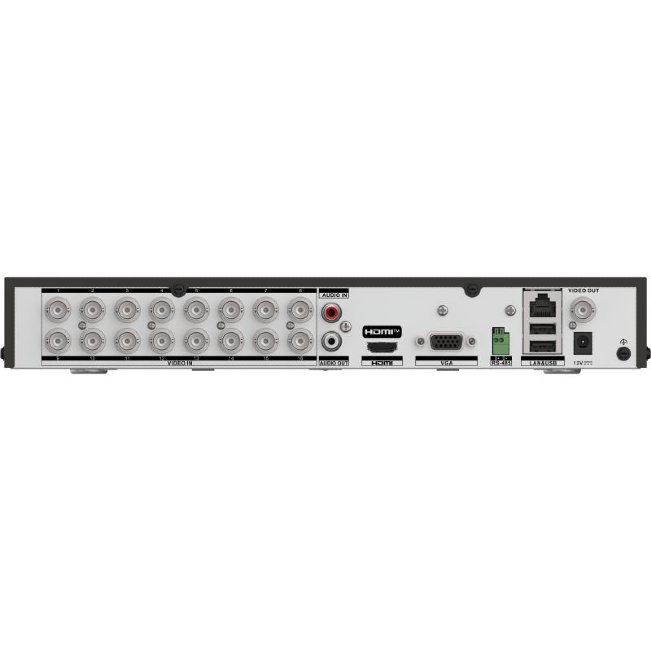

Hikvison iDS-7216HQHI-M1/XT rear

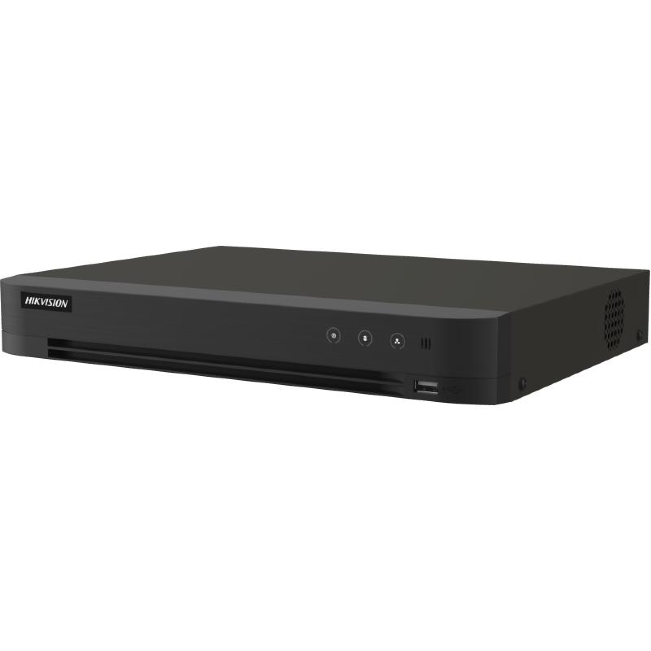

Hikvison iDS-7216HQHI-M1/XT side
Hikvison iDS-7216HQHI-M1/XT Supports up to 16 channels of video input, allowing you to connect multiple cameras to the DVR.
Hikvison iDS-7216HQHI-M1/XT rear
Hikvison iDS-7216HQHI-M1/XT side
Hikvison iDS-7216HQHI-M1/XT Supports up to 16 channels of video input, allowing you to connect multiple cameras to the DVR.
Hikvison iDS-7216HQHI-M1/XT rear
Hikvison iDS-7216HQHI-M1/XT side
Hikvision Security UK

Hikvison iDS-7216HQHI-M1/XT

16-ch 1080p 1U H.265 AcuSense DVR

Hikvision iDS-7216HQHI-M1/XT is a powerful 16-channel Digital Video Recorder (DVR) designed for advanced security surveillance systems. Combining multi-format compatibility with intelligent AcuSense deep learning technology, this DVR delivers accurate human and vehicle detection while reducing false alarms.

Supporting 4 channels of facial recognition or 8 channels of advanced perimeter protection, the system enhances proactive monitoring across commercial and industrial sites. The integrated 8-channel AcuSearch technology allows rapid retrieval of human and vehicle events from recorded footage, significantly improving investigation efficiency.

With encoding capability up to 3K/5MP Lite @12fps, and support for up to 24 IP camera inputs (up to 6MP per channel), the iDS-7216HQHI-M1/XT provides flexible hybrid functionality. It also delivers up to 24 × 1080P @30fps decoding, ensuring smooth playback across multiple channels.

The DVR supports five adaptive signal types (HDTVI/AHD/CVI/CVBS/IP), all-channel motion detection, and HDTVI two-way audio on all channels. Combined with H.265 Pro+ compression, it optimises storage efficiency while maintaining high-quality video performance.

Ideal for medium to large-scale surveillance installations, this DVR offers intelligent analytics, hybrid flexibility, and reliable performance in a compact, professional solution.

Features:

  • 16-channel H.265 AcuSense DVR
  • 4-ch facial recognition or 8-ch perimeter protection
  • 8-ch AcuSearch for fast event retrieval
  • Encoding up to 3K/5MP Lite @12fps
  • Up to 24 IP camera inputs (max 6MP per channel)
  • Up to 24 × 1080P @30fps decoding
  • Adaptive 5-in-1 signal input (HDTVI/AHD/CVI/CVBS/IP)
  • Motion detection on all channels
  • HDTVI two-way audio on all channels
  • Efficient H.265 Pro+ compression

Click here for your CCTV storage needs

Please login for pricing


Hikvison iDS-7216HQHI-M1/XT Supports up to 16 channels of video input, allowing you to connect multiple cameras to the DVR.

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Hikvision iDS7216HQHIM1/XT DVR Key Features: 16 Channels: Supports up to 16 channels of video input, allowing you to connect multiple cameras to the DVR.

H.265 Video Compression: Uses the latest H.265 video compression technology, which offers improved video quality at lower bitrates compared to older codecs like H.264. This results in reduced storage requirements and smoother playback.

4MP Resolution: Supports up to 4MP (2688x1520) resolution for high-quality video recordings. AcuSense Technology: Incorporates Hikvision's AcuSense technology, which intelligently differentiates between humans and vehicles in the video stream. This helps to reduce false alarms and improve the accuracy of event detection.

1 SATA Interface: Provides one SATA interface for connecting a hard drive for video storage.

HDMI and VGA Outputs: Offers both HDMI and VGA outputs for connecting the DVR to a monitor or TV for live viewing and playback.   Remote Access: Supports remote access via mobile devices (smartphones and tablets) and computers, allowing you to view live video and playback recordings from anywhere with an internet connection. Other Features: Supports various other features such as motion detection, video analytics, and more.

Applications: The Hikvision iDS-7216HQHI-M1/XT is suitable for a wide range of security applications, including Home security Small to medium-sized businesses Retail stores Warehouses Construction sites And more Overall, the Hikvision iDS-7216HQHI-M1/XT is a powerful and versatile DVR that offers excellent performance and features for a variety of security needs.

Compression and Recording

  • H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
  •  Recording at up to 3K / 5 MP Lite resolution

Storage and Playback

  • 1 SATA interface (up to 10 TB capacity)
  •  Smart search for efficient playback

Smart Function

  • Up to 16 channels (analogue channel) Motion Detection 2.0
  • Up to 8 channels (advanced model, analogue channel) Perimeter Protection
  • Up to 4 channels (advanced model, analogue channel) of human face recognition
  • Support smart playback to enhance playback efficiency

Network & Ethernet Access

  • Compatible with major Wi-Fi dongle products in the market
  •  Hik-Connect & DDNS for easy network management

hikvision iDS-7216HQHI-M1/XT 16-ch 1080P 1U H.265 AcuSense DVR

PDF Spec Sheet

Manufacture Link
